Arboles UK Two Way Pillar Bib Tap Cold Water

Name: Arboles UK Two Way Pillar Bib Tap Cold Water
Brand: Arboles UK Ltd
SKU: 39vqWChpC35TwA9wGRs1LV

Verified by manufacturer 18 days ago

Single pillar tap with twin outlets fixed serrated nozzles.

Jump to:

Application

Standard laboratory water tap for all applications where header tank supply is present (full WRAS approval).

Single pillar tap with twin outlets fixed serrated nozzles.

Features and benefits:

Options: Removable or full-bore nozzles are available on request.
Construction: All brass body, rilsan plastic coated, white (RAL 9016). Chemical resistant plastic ABS handwheel, identification coding to DIN 13792.
Connection and mounting: ½” BSP male flat ended shank x 60 mm long with back nut. Standard anti-rotation base with location pin. Two mounting holes 22 mm and 5 mm diameter required template enclosed.
Pressure and flow: Maximum pressure 100 PSI (Recommended 20 PSI) Flow Rate at 20 PSI = 12 L/min.
Spares: Handwheel assembly, part number: 960180; Valve headwork, part number: 950148.

Color	White Guidance for specification option: RAL 9016.
Finish	Coated Guidance for specification option: Rilsan plastic coated.
Material	Brass
Shape	Other
Length	210 mm
Width	150 mm
Height	320 mm
Warranty description	Five year

Uniclass	Pr_40_20_87_99 Washbasin thermostatic water supply setsPrimary
CAWS	N10/130 Laboratory furniture N13/30 Washbasins N13/335 Washbasins

Approvals	Water Regulations Advisory Scheme (WRAS) approved.
Form	Single pillar tap with twin outlets fixed serrated nozzles.
Materials	-
Body	Brass.
Finish and colour	Rilsan plastic coated, white (RAL9016).
Flow rate (maximum)	12 L/minute at 20 psi.
Water supply temperature (maximum)	Cold water.
Integral accessories	Not required. Handwheel assembly. Guidance for specification option: Pt No 960180. Valve headwork. Guidance for specification option: Pt No 950148.

Options	Removable nozzles. Full-bore nozzles. Guidance for specification option: Available on request.
Connection	½” BSP male flat ended shank x 60 mm long with back nut.
Mounting	Standard anti-rotation base with location pin. Guidance for specification option: Two mounting holes 22 mm and 5 mm diameter required template enclosed.

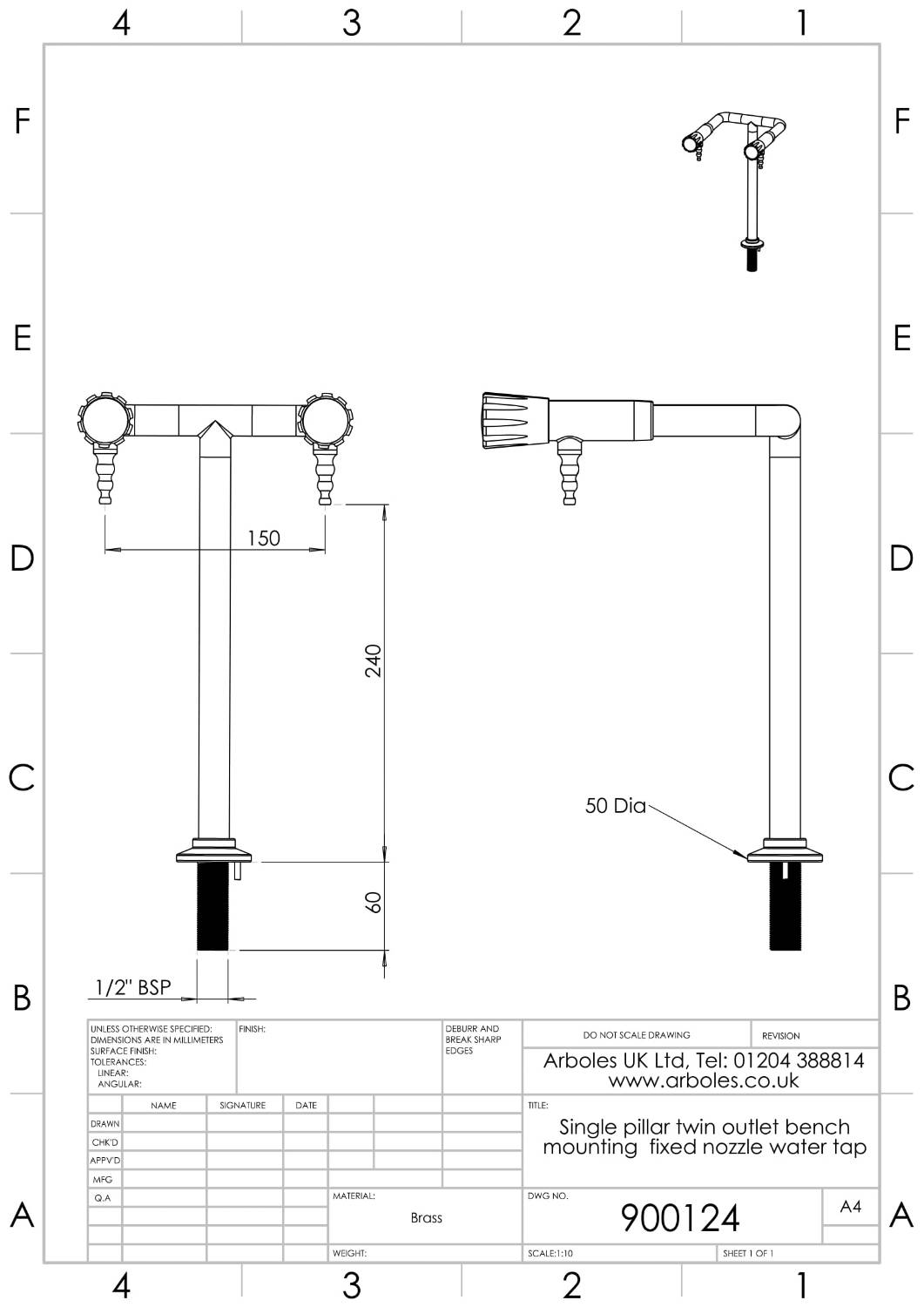

Base	∅50 mm.
Height	320 mm (overall); 240 mm (nozzle).
Projection	210 mm.
Width	150 mm.
