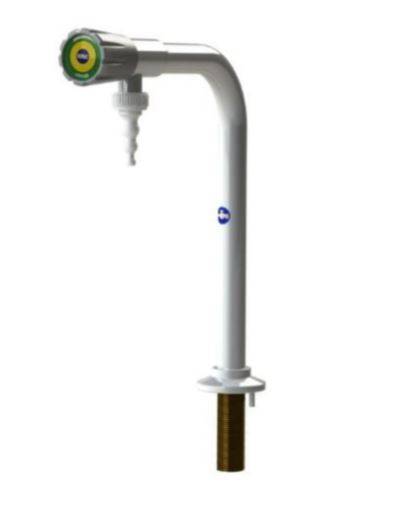

Arboles UK Pillar Bib Tap with Removable Nozzle
Verified by manufacturer 6 months ago
Pillar tap with removable serrated nozzles.
Application
Standard laboratory water tap for all applications where header tank supply is present (Full WRAS approval).
Description
Pillar tap with removable serrated nozzles.
Features and benefits:
- Options: Fixed or full-bore nozzles are available on request. Hot water.
- Construction: All brass body, rilsan plastic coated, white (RAL 9016). Chemical resistant plastic ABS handwheel, identification coding to DIN 13792.
- Connection and mounting: ½” BSP male flat ended shank x 60 mm long with back nut. Standard anti-rotation base with location pin. Two mounting holes 22 mm and 5 mm diameter required template enclosed.
- Pressure and flow: Maximum pressure 100 PSI (Recommended 20 PSI).
- Flow Rate at 20 PSI = 12 L/min.
- Spares: Hand wheel assembly, part number: 960180; Valve headwork, part number: 950148.
- WRAS: Approved.
General information
Color | White Guidance for specification option: RAL 9016. |
Finish | Coated Guidance for specification option: Rilsan plastic coated. |
Material | Brass |
Shape | Other |
Width | 215 mm |
Height | 280 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N10/130 Laboratory furniture N13/335 Washbasins N13/30 Washbasins |
Specification data - Washbasin thermostatic water supply sets
Approvals | Water Regulations Advisory Scheme (WRAS) approved. |
Form | Pillar taps. |
Materials | |
Body | Brass. |
Finish and colour | Rilsan plastic coated, white (RAL9016). |
Flow rate (maximum) | 12 L/minute at 20 psi.Guidance for specification option: Maximum pressure 100 psi (Recommended 20 psi). |
Integral accessories | Not required.Hand wheel assembly.Guidance for specification option: Pt No 960180. Valve headwork.Guidance for specification option: Pt No 950148. |
Options | Fixed nozzle. Full-bore nozzle. |

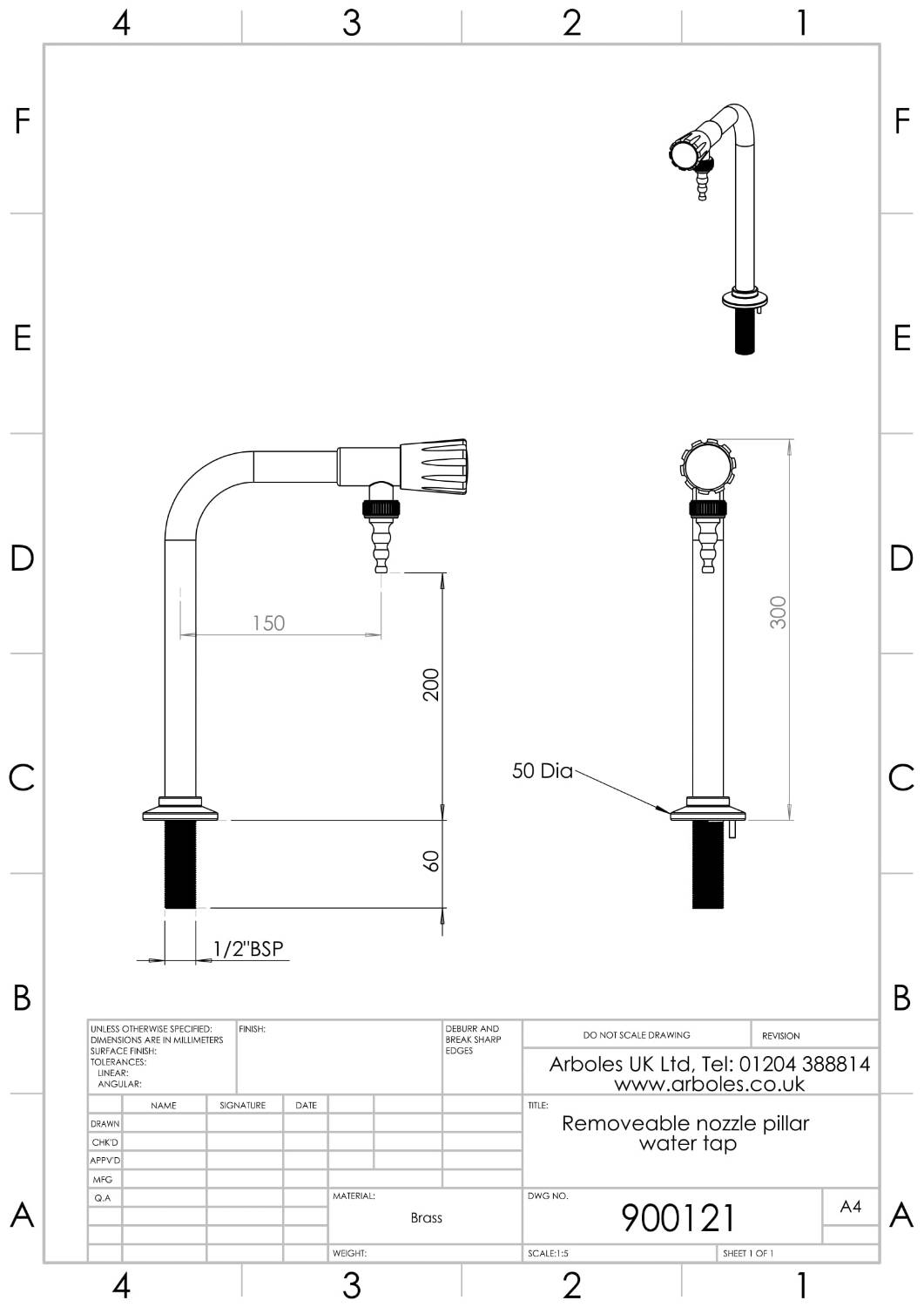

Connection | ½” BSP male flat ended shank x 60 mm long with back nut. |
Mounting | Anti-rotation base with location pin. Guidance for specification option: Two mounting holes 22 mm and 5 mm diameter required template enclosed. |
Base | ∅50 mm. |
Height | 280 mm (overall); 200 mm (nozzle). |
Projection | 215 mm (overall) 150 mm (nozzle). |
Sustainability data
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature

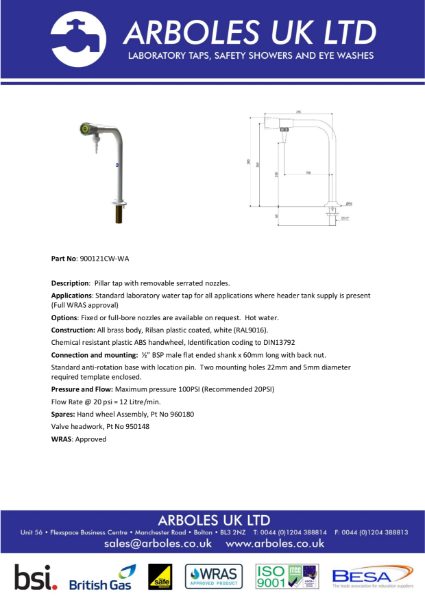

Arboles UK Pillar Bib Tap with Removable Nozzle
