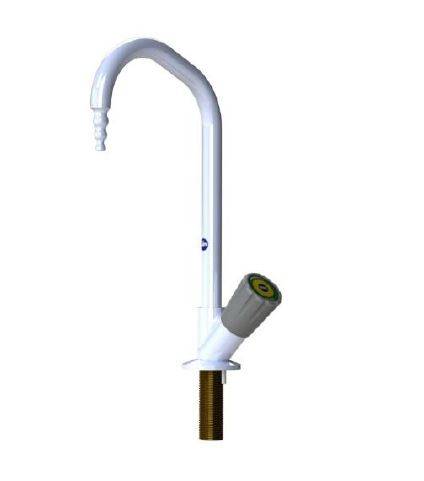

Arboles UK Bench Mounted Cold Water Swan Neck Tap With Removable Nozzle
Verified by manufacturer 18 days ago
Fixed swan neck tap with removeable serrated nozzles.
Application
Standard laboratory water tap for all applications where header tank supply is present (full WRAS approval).
Description
Fixed swan neck tap with removeable serrated nozzles. Cold water right hand removable nozzle.
Features and benefits:
- Removable nozzles.
- Construction: All brass body, Rilsan plastic coated, light white (RAL 9016). Chemical resistant plastic ABS handwheel, identification coding to DIN 13792.
- Connection and mounting: ½” BSP male flat ended shank x 60 mm long with back nut. Standard anti-rotation base with location pin. Two mounting holes 22 mm and 5 mm diameter required template enclosed.
- Pressure and flow: Maximum pressure 100 PSI (Recommended 20 PSI).
- Flow rate at 20 PSI = 12 L/min.
- Installation template for the perfect fit.
- Spares: Handwheel assembly, part number: 960180; Valve headwork, part number: 950148; Removable nozzle, part number: 900130.
- WRAS: Approved.
General information
Color | White Guidance for specification option: Light white (RAL9016). |
Finish | Coated Guidance for specification option: Rilsan plastic coated |
Material | Brass |
Shape | Other |
Width | 130 mm |
Height | 312 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N10/130 Laboratory furniture N13/30 Washbasins N13/335 Washbasins |
Specification data - Washbasin thermostatic water supply sets
Approvals | Water Regulations Advisory Scheme (WRAS) approved. |
Form | Fixed swanneck tap. |
Materials | |
Body | Brass. |
Finish and colour | Rilsan plastic coated, light white (RAL9016). |
Flow rate (maximum) | 12 L/minute at 20 psi.Guidance for specification option: Maximum pressure 100 psi (recommended 20 psi). |
Integral accessories | Not required.Handwheel assembly.Guidance for specification option: Pt No 960180. Valve headwork.Guidance for specification option: Pt No 950148. Removable nozzle.Guidance for specification option: Pt No 900130. |

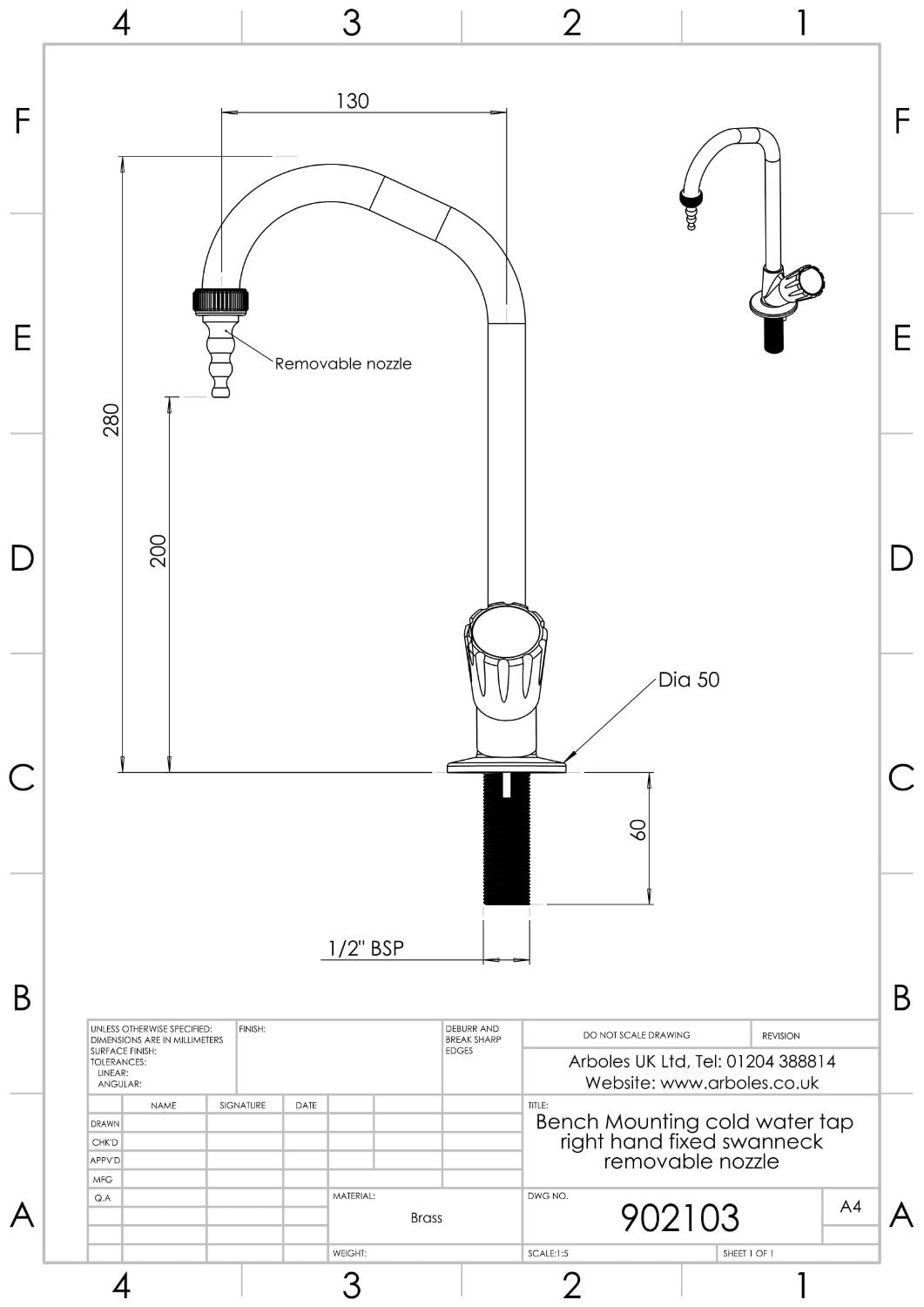

Connection | ½” BSP male flat ended shank x 60 mm long with back nut. |
Mounting | Standard anti-rotation base with location pin. Guidance for specification option: Two mounting holes 22 mm and 5 mm diameter required template enclosed. |
Base | ∅50 mm. |
Height | 312 mm (overall); 200 mm (nozzle). |
Projection | 130 mm. |
Sustainability data
Country of product manufacture | Spain |
Recyclability | 100% |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |

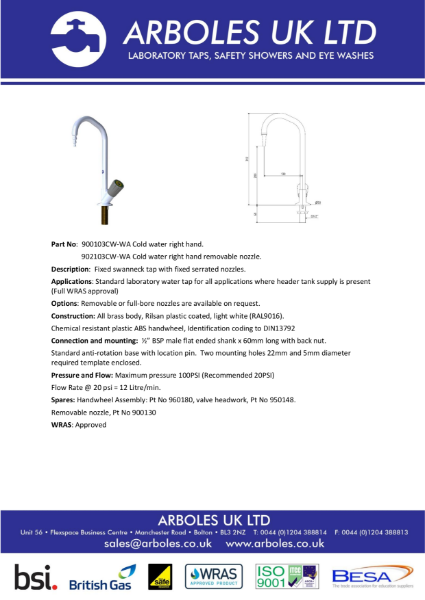

Literature
Arboles UK Bench Mounted Cold Water Swan Neck Tap With Removable Nozzle
