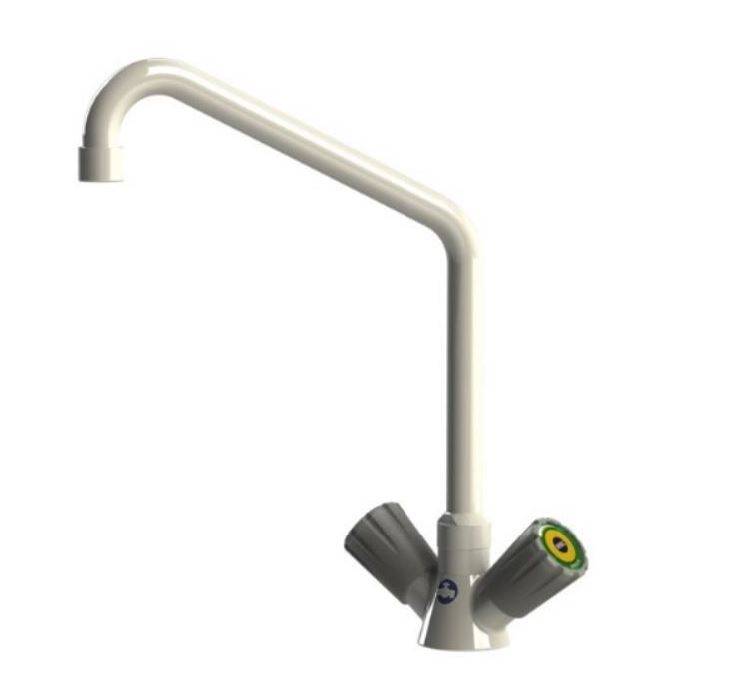

Arboles UK Bench Mounted Monobloc Mixer Tap With Aerator Nozzle
Verified by manufacturer 17 days ago
Balanced flow laboratory monobloc mixer tap with aerated nozzle.
Application
Balanced flow laboratory monobloc mixer tap, aerated nozzle.
Description
Balanced flow laboratory monobloc mixer tap, aerated nozzle.
Features and benefits:
- Options: Removable nozzles are available on request. Lever / wrist actions are available on request too.
- Construction: All brass body, Rilsan plastic coated, light white (RAL9016). ABS grey rotating handwheels, Identification coding to DIN13792.
- Connection and mounting: 2 x 3/8” BSP female flat ended flexible braided SS hoses, 330 mm long.
- Pressure and Flow: Maximum pressure 100 PSI (Recommended 20 PSI).
- Mounting Hole: 30 mm diameter.
- Flow Rate @ 20 psi = 35 Litre/min.
- Spares: Spare handwheel assembly: Pt No 960180 Valve headworks, Pt Nos 950148.
- WRAS: Approved materials.
General information
Color | White Guidance for specification option: Light white (RAL9016). |
Finish | Coated Guidance for specification option: Rilsan plastic coated |
Material | Brass |
Shape | Other |
Width | 200 mm |
Height | 325 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N10/130 Laboratory furniture N13/30 Washbasins N13/335 Washbasins |
Specification data - Washbasin thermostatic water supply sets
Approvals | Water Regulations Advisory Scheme (WRAS) approved. |
Form | Monobloc mixer tap. |
Materials | |
Body | Brass. |
Finish and colour | Rilsan plastic coated, light white (RAL9016). |
Flow rate (maximum) | 35 L/minute at 20 psi.Guidance for specification option: Maximum pressure 100 psi (recommended 20 psi). |
Integral accessories | Not required.Handwheel assembly.Guidance for specification option: Pt No 960180. Valve headwork.Guidance for specification option: Pt No 950148. |
Options | Not required. Removable nozzles. Guidance for specification option: Available on request. |
Connection | 2 x 3/8” BSP female flat ended flexible braided SS hoses, 330 mm long. |
Mounting | ∅30 mm. Manufacturer guidanceMounting hole. |
Base | ∅50 mm. |
Height | 325 mm (overall); 260 mm (nozzle). |
Projection | 200 mm. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |

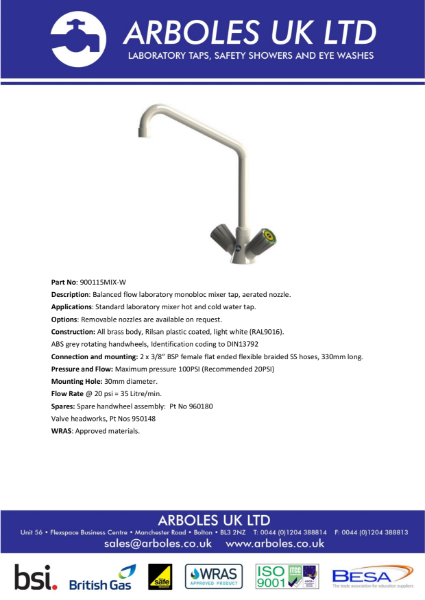

Literature
