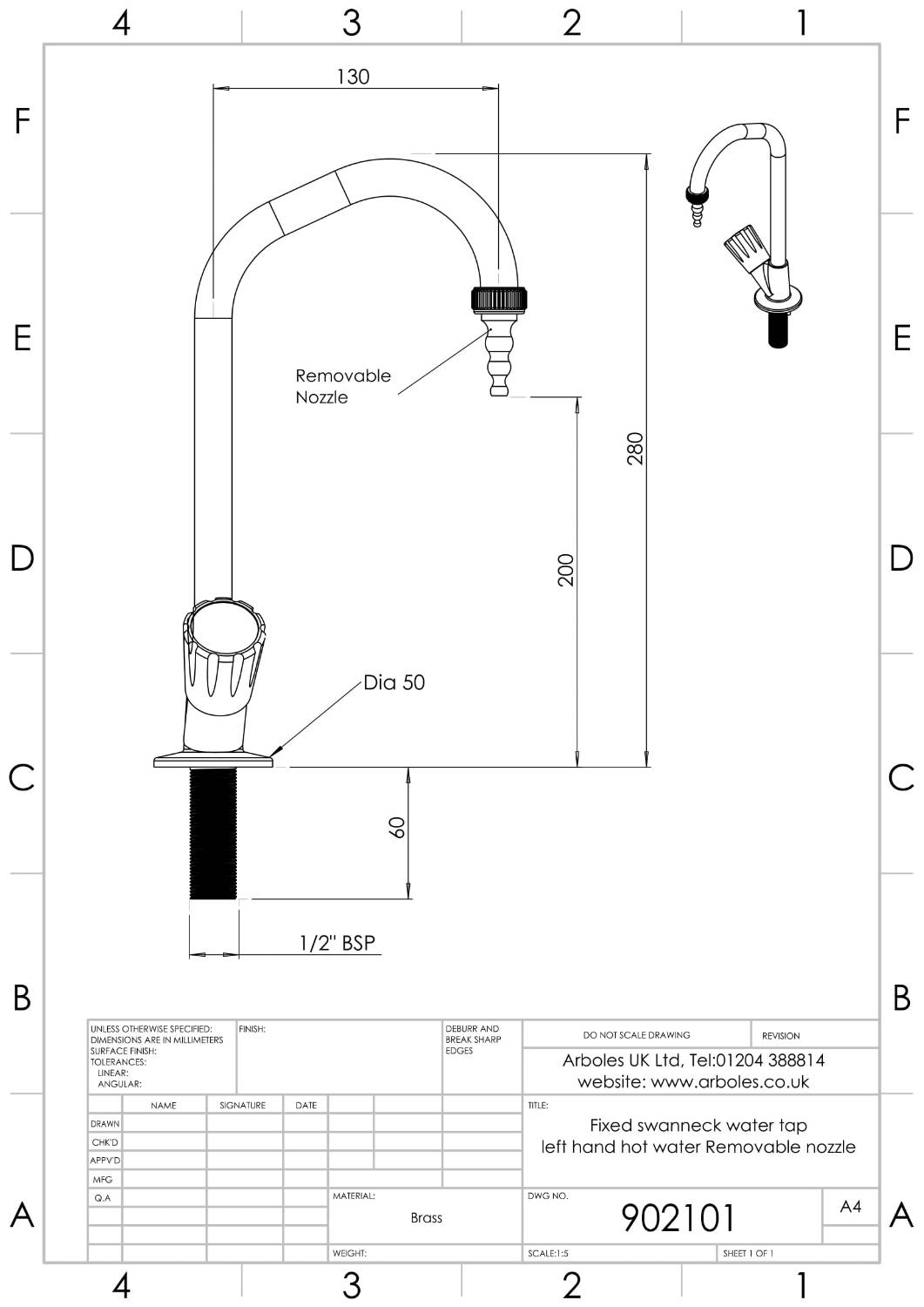

Arboles UK Bench Mounted Hot Water Swan Neck Tap With Removable Nozzle
Verified by manufacturer 18 days ago
Fixed swan neck tap with fixed serrated nozzles.
Application
Standard laboratory water tap for all applications where header tank supply is present (full WRAS approval).
Description
Fixed swan neck tap with removable serrated nozzles.
Features and benefits:
- Options: Fixed nozzles are available on request as is lever/ wrist action operation.
- Construction: All brass body, Rilsan plastic coated, white (RAL9016). Chemical resistant plastic ABS handwheel, Identification coding to DIN13792.
- Connection and mounting: ½” BSP male flat ended shank x 60 mm long with back nut.
- Standard anti-rotation base with location pin. Two mounting holes 22 mm and 5 mm diameter required template enclosed.
- Pressure and Flow: Maximum pressure 100 PSI (Recommended 20 PSI). Flow Rate @ 20 psi = 12 Litre/min.
- Spares: Handwheel Assembly: Pt No 960180, valve headwork, Pt No 950148. Removable nozzle, Pt No 900130.
- WRAS: Approved.
General information
Color | White Guidance for specification option: RAL9016. |
Finish | Coated Guidance for specification option: Rilsan plastic coated |
Material | Brass Acrylonitrile butadiene styrene (ABS) |
Shape | Other |
Width | 130 mm |
Height | 312 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N10/130 Laboratory furniture N13/30 Washbasins N13/335 Washbasins |
Specification data - Washbasin thermostatic water supply sets
Approvals | Water Regulations Advisory Scheme (WRAS) approved. |
Form | Fixed swanneck tap. |
Materials | |
Body | Brass. |
Finish and colour | Rilsan plastic coated, white (RAL9016). |
Flow rate (maximum) | 12 L/minute at 20 psi.Guidance for specification option: Maximum pressure 100 psi (recommended 20 psi). |
Integral accessories | Not required.Handwheel assembly.Guidance for specification option: Pt No 960180. Valve headwork.Guidance for specification option: Pt No 950148. Removable nozzle.Guidance for specification option: Pt No 900130. |
Connection | ½” BSP male flat ended shank x 60 mm long with back nut. |
Mounting | Standard anti-rotation base with location pin. Guidance for specification option: Two mounting holes 22 mm and 5 mm diameter required template enclosed. |
Base | ∅50 mm. |
Height | 312 mm (overall); 200 mm (nozzle). |
Projection | 130 mm. |
Sustainability data
Country of product manufacture | Spain |
Recyclability | 100% |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature

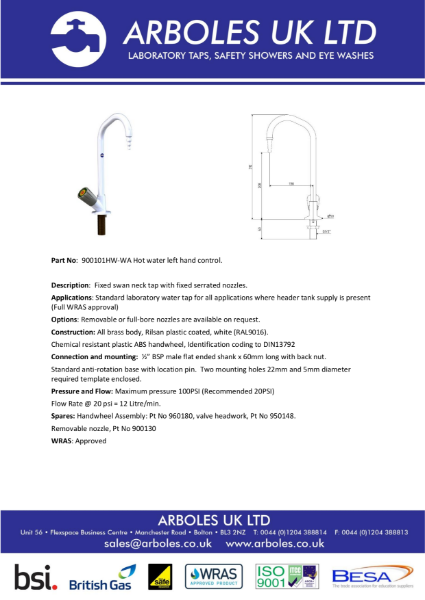

Arboles UK Bench Mounted Hot Water Swan Neck Tap With Removable Nozzle
