Arboles UK AUK 3 Category 5 Backflow Preventer / Anti Siphon Nozzle
Verified by manufacturer 18 days ago

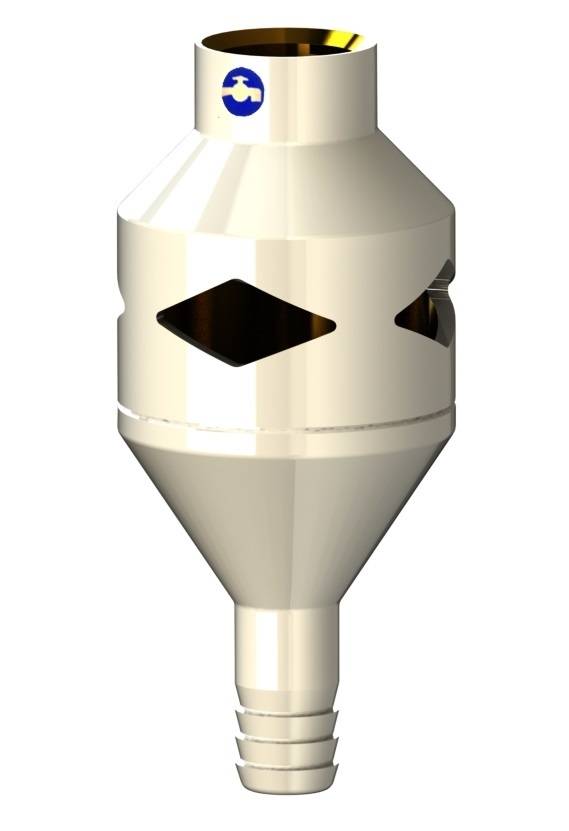

Anti-siphon nozzle.
Application
Suitable for use specifically to protect the water supply against contamination from back siphonage within the laboratory environment.
Description

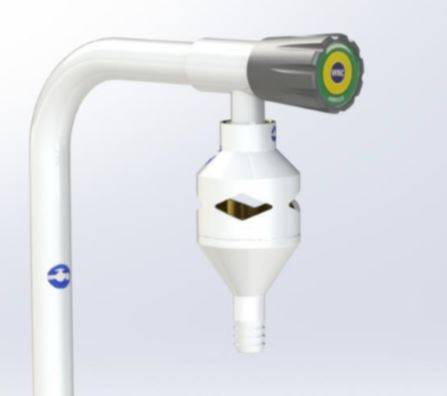

Anti-Siphon Nozzle Part Number: 900100-W. Designed to connect to a tap where the statutory air gap provided by a break tank isn't present.
The nozzle must be permanently fitted to the outlet of the laboratory water tap with Loctite 648. The fitting of this nozzle will introduce the statutory air gap. Advice must be obtained from your local water authority to ensure compliance with current water supply (water fittings) regulations 1999.
Features and benefits:
- Fully approved AUK-3 category five nozzle available.
- WRAS approved for all UK water installations.
- Serrated end for fitting hoses.
- For pharmaceutical, education, public sector.
- Manufactured with a ½” BSP female inlet connection, suitable laboratory taps can be supplied on request.
General information
Color | White Guidance for specification option: RAL 9016. |
Finish | Coated Guidance for specification option: Rilsan plastic coated. |
Material | Brass |
Shape | Other |
Warranty description | Five year |
Uniclass | |
CAWS | N10/130 Laboratory furniture N13/30 Washbasins N13/335 Washbasins |
Specification data - Washbasin thermostatic water supply sets
Approvals | Water Regulations Advisory Scheme (WRAS) approved. |
Form | Anti-siphon nozzle. |
Materials | |
Body | Brass. |
Finish and colour | Rilsan plastic coated, white RAL 9016. |
Connection | ½”BSP female inlet connection. |
Sustainability data
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
Arboles UK AUK 3 Category 5 Backflow Preventer / Anti Siphon Nozzle
Case studies
AUK3 Category 5 & back flow prevention
The only truly WRAS certified back flow prevention nozzle
