Arboles UK Bench Mounted Two Way Pillar Bib Tap With Removable Nozzles
Verified by manufacturer 6 months ago

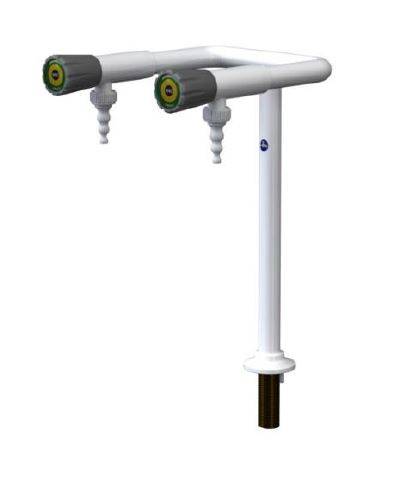

Single pillar tap with twin outlets removeable nozzles.
Application
Standard laboratory water tap for all applications where header tank supply is present (full WRAS approval).
Description
Single Pillar tap with Twin outlets removeable nozzles.
Features and benefits:
- Options: Removable or full-bore nozzles are available on request.
- Construction: All brass body, rilsan plastic coated, white (RAL 9016). Chemical resistant plastic ABS handwheel, identification coding to DIN 13792.
- Connection and mounting: ½” BSP male flat ended shank x 60 mm long with back nut. Standard anti-rotation base with location pin. Two mounting holes 22 mm and 5 mm diameter required template enclosed.
- Pressure and flow: Maximum pressure 100 PSI (Recommended 20 PSI) Flow Rate at 20 PSI = 12 L/min.
- Spares: Handwheel assembly, part number: 960180; Valve headwork, part number: 950148.
General information
Color | White Guidance for specification option: RAL 9016. |
Finish | Coated Guidance for specification option: Rilsan plastic coated. |
Material | Brass |
Shape | Other |
Length | 210 mm |
Width | 150 mm |
Height | 320 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N10/130 Laboratory furniture N13/30 Washbasins N13/335 Washbasins |
Specification data - Washbasin thermostatic water supply sets
Approvals | Water Regulations Advisory Scheme (WRAS) approved. |
Form | Single pillar tap with twin outlets removeable nozzles. |
Materials | |
Body | Brass. |
Finish and colour | Rilsan plastic coated, white (RAL9016). |
Flow rate (maximum) | 12 L/minute at 20 psi. |
Water supply temperature (maximum) | Cold water. |
Integral accessories | Not required.Handwheel assembly.Guidance for specification option: Pt No 960180. Valve headwork.Guidance for specification option: Pt No 950148. |
Options | Not required. Full bore nozzles. Guidance for specification option: Available on request. |
Connection | ½” BSP male flat ended shank x 60 mm long with back nut. |
Mounting | Standard anti-rotation base with location pin. Guidance for specification option: Two mounting holes 22 mm and 5 mm diameter required template enclosed. |

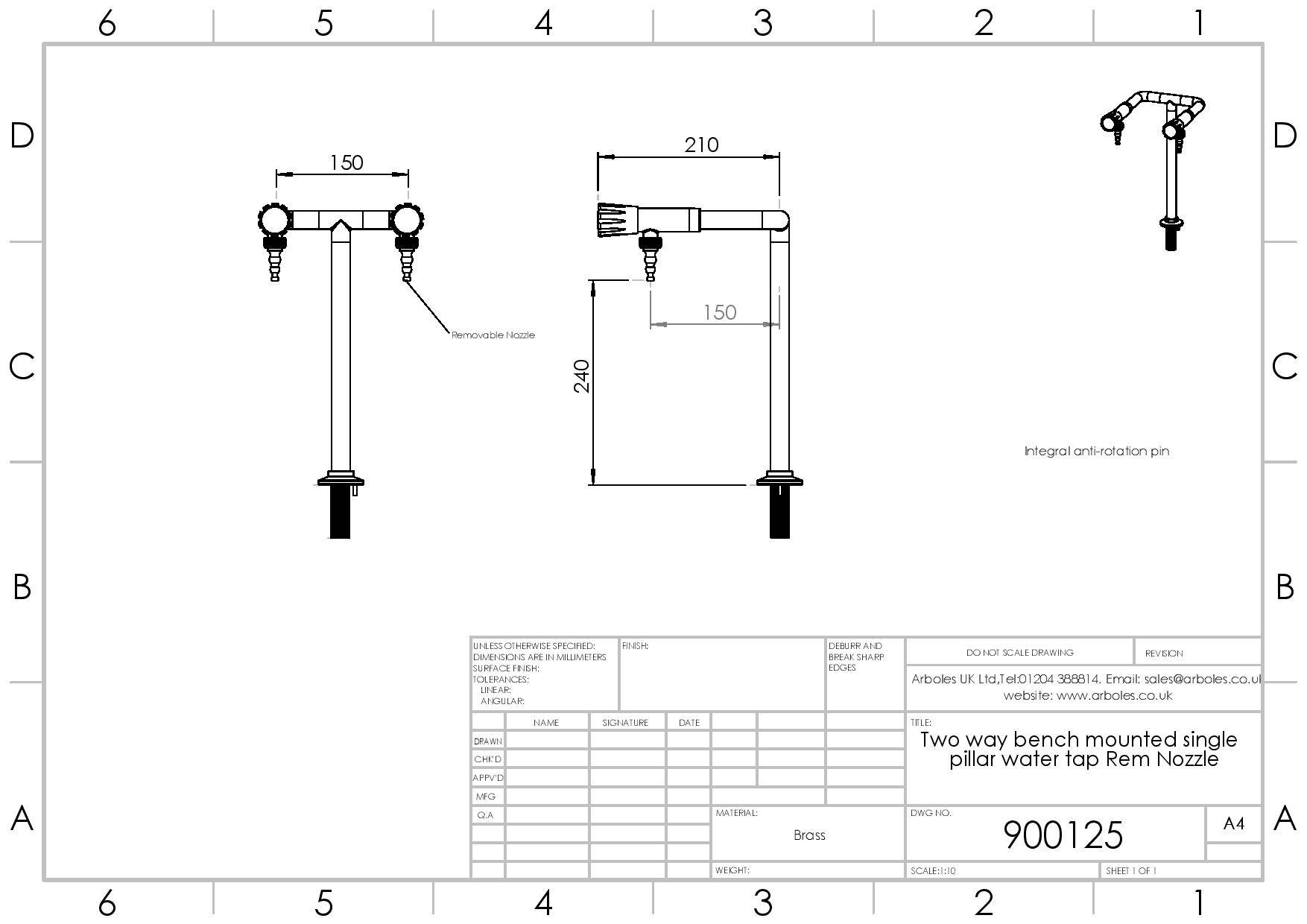

Base | ∅50 mm. |
Height | 320 mm (overall); 240 mm (nozzle). |
Projection | 210 mm. |
Width | 150 mm. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
Arboles UK Bench Mounted Two Way Pillar Bib Tap With Removable Nozzles
