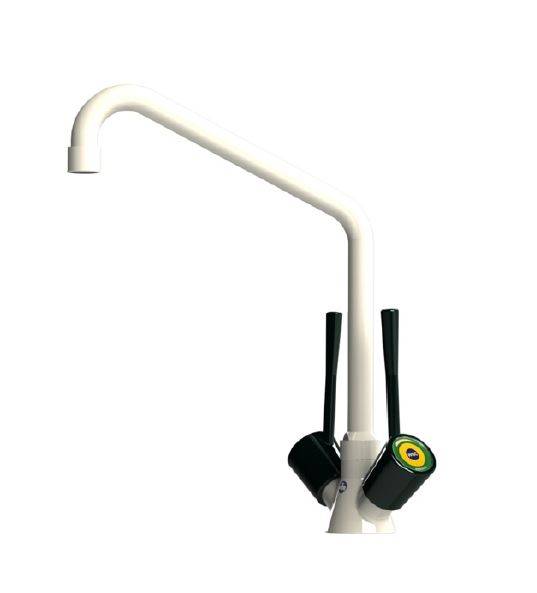

Arboles UK Bench Mounted Monobloc Mixer Tap With Aerator Nozzle and Wrist Action Levers
Verified by manufacturer 6 months ago
Balanced flow laboratory lever action monobloc mixer tap, removable nozzle.
Application
Standard laboratory mixer water tap for all applications where header tank supply is present (full WRAS approval).
Description
Balanced flow laboratory lever action monobloc mixer tap, removable nozzle.
Features and benefits:
- Options: Full bore nozzles are available on request.
- Construction: All brass body, Rilsan plastic coated, white (RAL9016). Green aluminium lever, Identification coding to DIN13792.
- Connection and mounting: 2 x 1/2” BSP female flat ended flexible braided SS hoses, 330 mm long.
- Mounting hole 30 mm diameter.
- Pressure and Flow: Maximum pressure 100PSI (Recommended 20PSI).
- Flow Rate @ 20 psi = 35 Litre/min.
- Spares: Spare handwheel assembly: Pt No 19002 Valve headworks, Left Hand Pt Nos 950139, Right Hand Pt Nos 950149.
- WRAS: Approved materials.
General information
Color | White Guidance for specification option: Light white (RAL9016). Green |
Finish | Coated Guidance for specification option: Rilsan plastic coated |
Material | Brass Aluminium |
Shape | Other |
Width | 200 mm |
Height | 320 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N10/130 Laboratory furniture N13/30 Washbasins N13/335 Washbasins |
Specification data - Washbasin thermostatic water supply sets
Approvals | Water Regulations Advisory Scheme (WRAS) approved. |
Form | Monobloc mixer tap. |
Materials | |
Body | Brass. |
Finish and colour | Rilsan plastic coated, light white (RAL9016). |
Flow rate (maximum) | 35 L/minute at 20 psi.Guidance for specification option: Maximum pressure 100 psi (recommended 20 psi). |
Integral accessories | Not required.Handwheel assembly.Guidance for specification option: Pt No 19002. Valve headworks, left hand.Guidance for specification option: Pt Nos 950139. Valve headworks, right hand.Guidance for specification option: Pt Nos 950149. |
Lever handle | Aluminium, green. |
Options | Not required. Full bore nozzles. Guidance for specification option: Available on request. |
Connection | 2 x 1/2” BSP female flat ended flexible braided SS hoses, 330 mm long. |
Mounting | ∅30 mm. Manufacturer guidanceMounting hole. |
Base | ∅50 mm. |

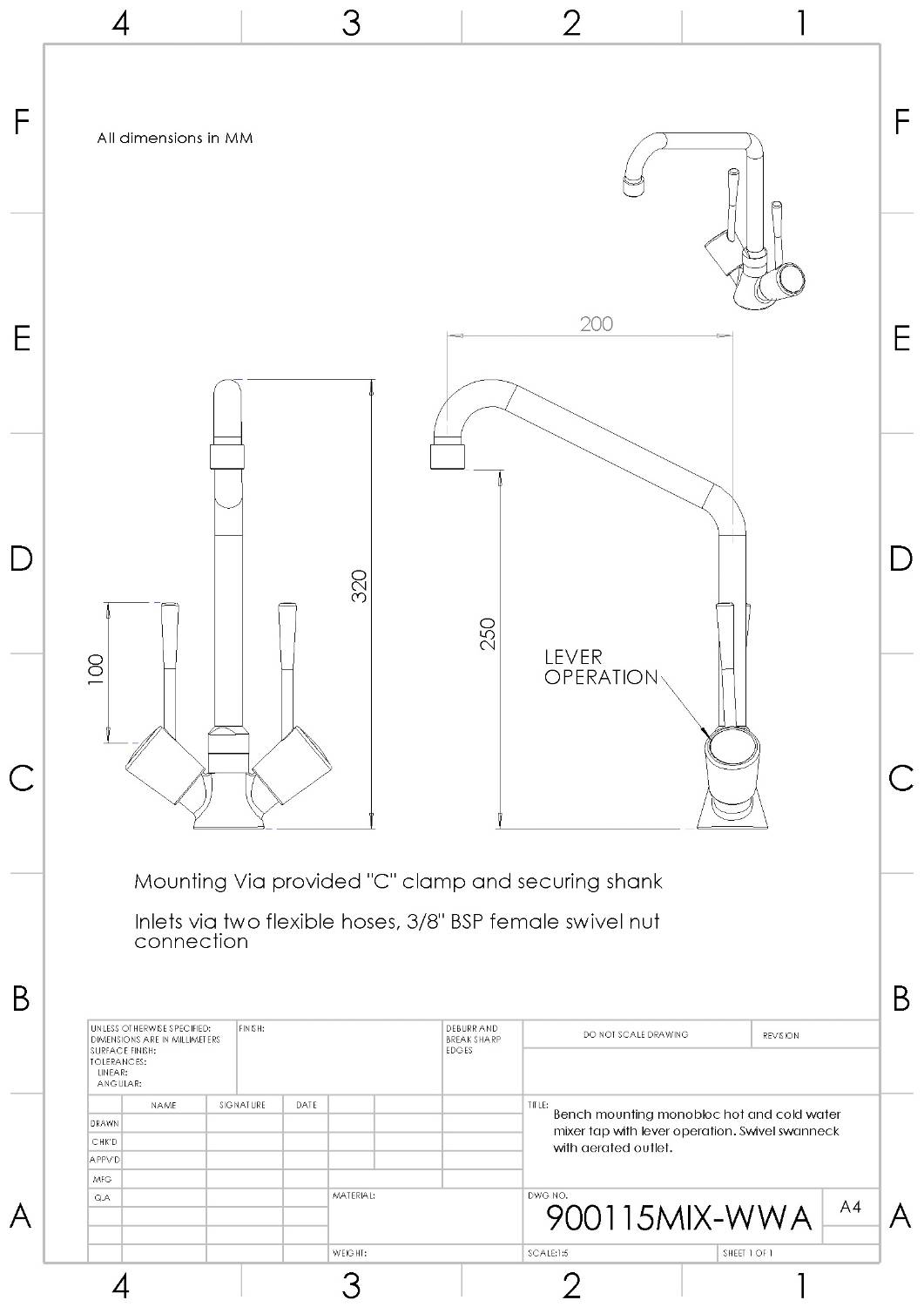

Height | 320 mm (overall); 250 mm (nozzle). |
Projection | 200 mm. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |

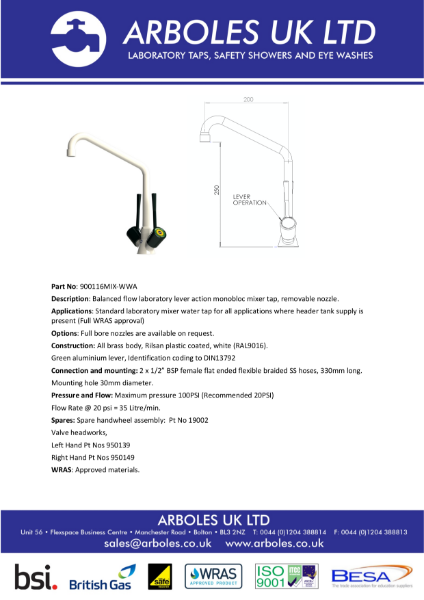

Literature
Arboles UK Bench Mounted Monobloc Mixer Tap With Aerator Nozzle and Wrist Action Levers
