Arboles UK Bench Mounted Three Way Pillar Bib Tap With Removable Nozzles
Verified by manufacturer 6 months ago

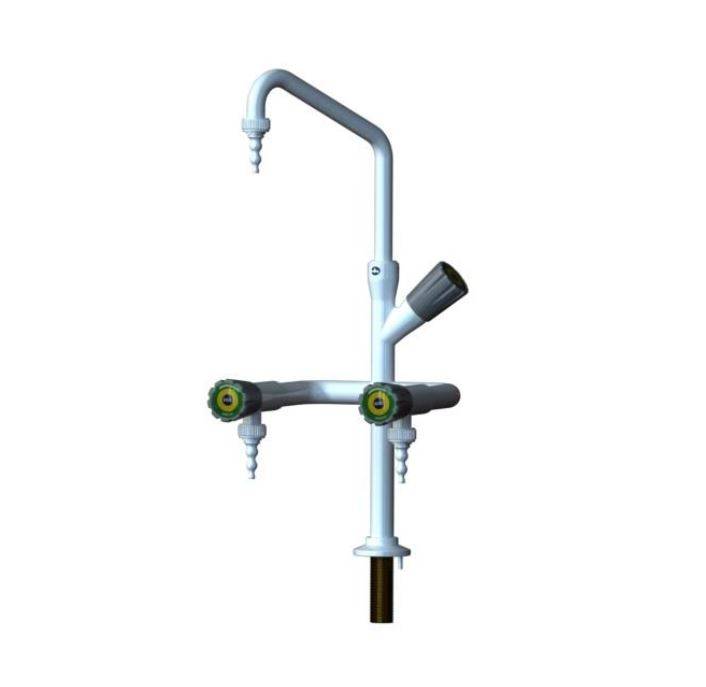

Swivel swan neck tap with removeable serrated nozzles.
Application
Standard laboratory water tap for all applications where header tank supply is present.
Description
Swivel swan neck tap with removeable serrated nozzles.
Features and benefits:
- Options: Fixed or full-bore nozzles are available on request.
- Construction: All brass body, Rilsan plastic coated, white (RAL9016). Identification coding to DIN13792.
- Connection and mounting: ½” BSP male flat ended shank x 60 mm long with back nut.
- Standard anti-rotation base with location pin. Two mounting holes 22 mm and 5 mm diameter required; template enclosed.
- Pressure and Flow: Maximum pressure 100 PSI (Recommended 20 PSI).
- Flow Rate @ 20 psi = 12 Litre/min per outlet.
- Spares: Spare handwheel: Pt No 960180; Valve headworks, Pt Nos 950148.
- WRAS: Approved.
General information
Color | White Guidance for specification option: RAL 9016. |
Finish | Coated Guidance for specification option: Rilsan plastic coated. |
Material | Brass |
Shape | Other |
Length | 150 mm |
Width | 150 mm |
Height | 445 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N10/130 Laboratory furniture N13/30 Washbasins N13/335 Washbasins |
Specification data - Washbasin thermostatic water supply sets
Approvals | Water Regulations Advisory Scheme (WRAS) approved. |
Form | Swivel swan neck tap with removeable serrated nozzles. |
Materials | |
Body | Brass. |
Finish and colour | Rilsan plastic coated, white (RAL9016). |
Flow rate (maximum) | 12 L/minute at 20 psi. |
Water supply temperature (maximum) | Cold water. |
Integral accessories | Not required.Handwheel assembly.Guidance for specification option: Pt No 960180. Valve headwork.Guidance for specification option: Pt No 950148. |
Options | Not required. Fixed nozzles. Full bore nozzles. Guidance for specification option: Available on request. |

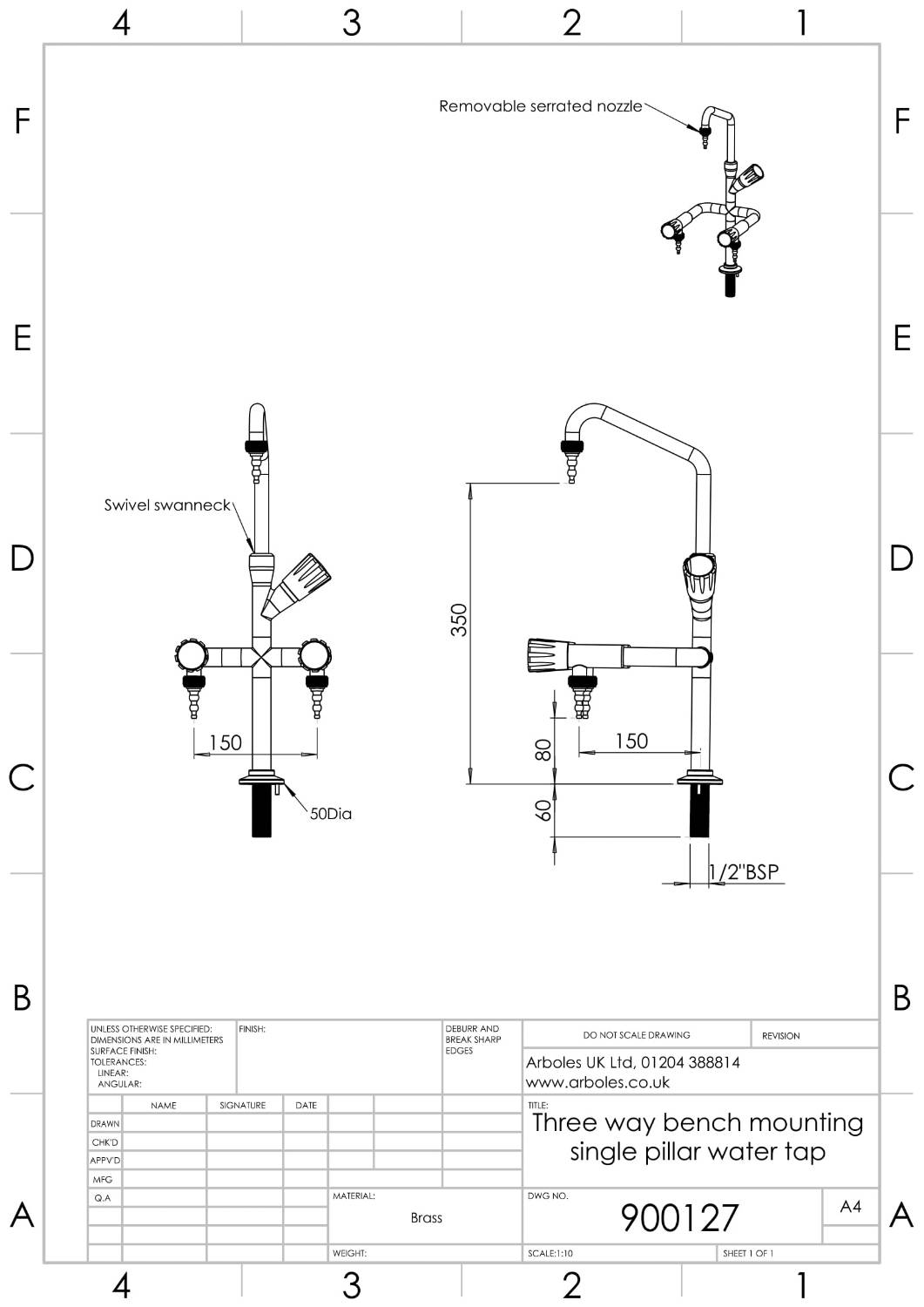

Connection | ½” BSP male flat ended shank x 60 mm long with back nut. |
Mounting | Standard anti-rotation base with location pin. Guidance for specification option: Two mounting holes 22 mm and 5 mm diameter required template enclosed. |
Base | ∅50 mm. |
Height | 445 mm (overall); 350 mm (nozzle). |
Projection | 150 mm. |
Width | 150 mm. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature

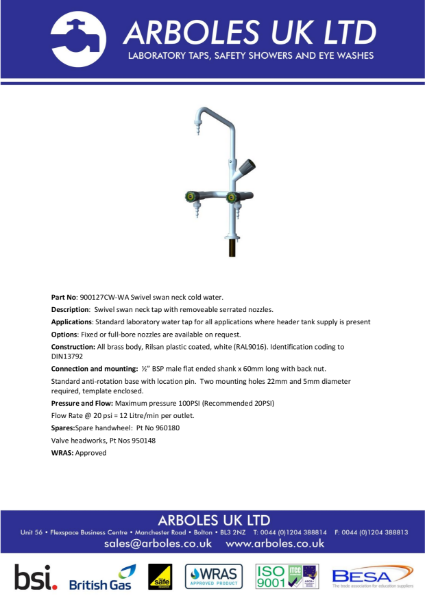

Arboles UK Bench Mounted Three Way Pillar Bib Tap With Removable Nozzles
