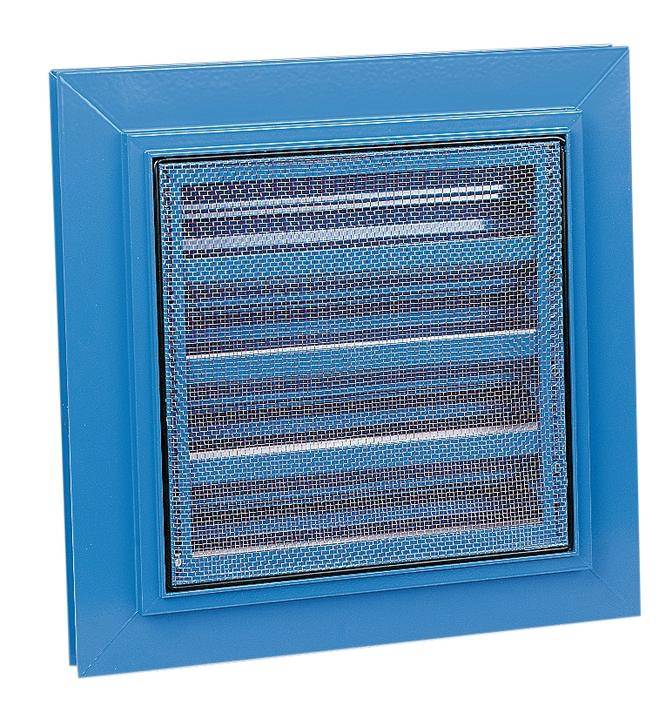

Aluminium Louvre Grille 424
Verified by manufacturer 1 month ago
Anodized
Anodized
Glazed-in aluminium louvre, heavy-duty series.
Application
Suitable for 24 and 28 mm glazing sections.
Description
Frame vent heavy version, can be installed as double glass.
Features and benefits:
- Aesthetic and sturdy.
- Flange width 24 mm or 28 mm.
- Excellent water resistance in air discharge applications.
- Manufactured from aluminium profiles AlMgSi 0.5 (according EN 12020-2).
- Stainless steel 304 insect screen (2.3 x 2.3 mm) included.
- Anodized or powder-coated finish.
- Minimum dimensions: 220 x 220 mm.
General information
Color | Grey Other |
Finish | Anodized Powder-coated Satin Gloss Matt |
Material | Aluminium Stainless steel |
Shape | Square |
Length | 51 mm Manufacturer guidanceDepth. |
Width | Bespoke 220 mm |
Height | Bespoke 220 mm |
Warranty description | Ten year Five year Two year Manufacturer guidance
|
Uniclass | |
CAWS | H11/437 Louvres H11/140 Louvres L10/54 Louvres L10/650 Metal louvres |
Product range |
Specification data - Aluminium louvre panel units
Size (l x w x d) | Guidance for specification option:
|
Material | Aluminium sections (AlMgSi 0.5, according EN 12020-2). |
Finish | Anodized.Guidance for specification option: Layer thickness: 20 microns. |
Colour | Grey. |
Texture | Satin. |
Construction | Flanged frame, 24 mm.Flanged frame, 28 mm. |
Weather performance | |
Discharge loss coefficient (minimum) | To BS EN 13030, Class 3.Guidance for specification option:
|
Louvre configuration | |
Number of banks | One. |
Blade orientation | Horizontal. |
Blade pitch | 50 mm. |
Blade angle | Fixed. |
Accessories | Not required.Water channel.Drainage profile.Removable mesh.Filter.Stainless steel 304 mesh, 6 x 6 mm.Stainless steel 304 mesh, 10 x 10 mm.Stainless steel 304 mesh, 20 x 20 mm.Stainless steel 316 insect screen (2.3 x 2.3 mm).Stainless steel 316 mesh, 6 x 6 mm.Stainless steel 316 mesh, 10 x 10 mm.Stainless steel 316 mesh, 20 x 20 mm. |
Integral accessories | Stainless steel 304 insect screen (2.3 x 2.3 mm). Without mesh. |
Air flow | K-factor (entry) to EN 13030, 13.42. |
Free area | Visual free area: 70%. |
Ingress protection (IP) rating | IP2XD. Guidance for specification option: IP class (louvre with mesh; electrical installation at least 100 mm from louvre). |
Sustainability data
Country of product manufacture | United Kingdom |
Recyclability | 100% recyclable |
