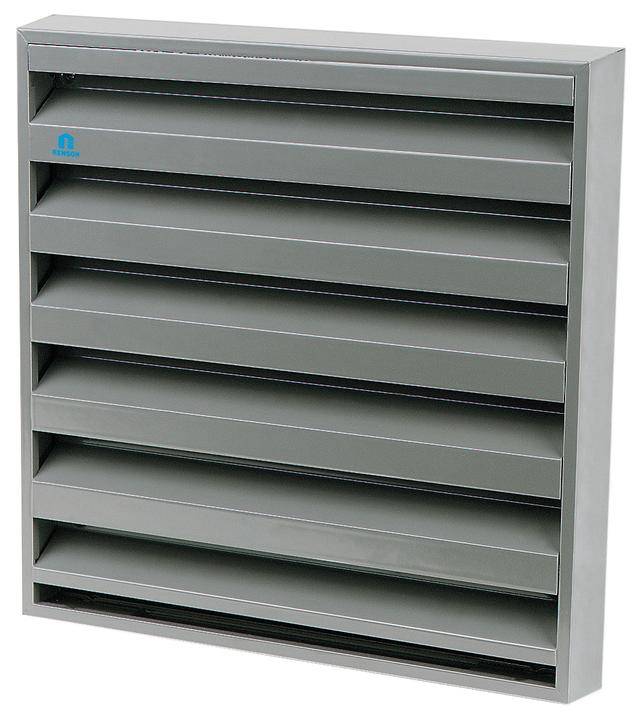

Name: Aluminium Louvre Grille 431
Brand: Renson Fabrications Ltd
SKU: pBsLpBjJKmqt7SAmLMXRyE

Verified by manufacturer 24 days ago

Color

Grey

White

Black

Other

Finish

Anodized

Powder-coated

Satin

Matt

Gloss

Material

Aluminium

Stainless steel

Shape

Square

Length

29 mm

Manufacturer guidance

Depth.

Width

165 mm

225 mm

325 mm

425 mm

525 mm

Height

165 mm

225 mm

325 mm

425 mm

525 mm

Warranty description

Ten year

Five year

Two year

Manufacturer guidance

Renson gives a basic ten-year warranty on all louvres.
The gloss of powder coated parts is limited to five years.
Motors are limited to two years.
More details and modalities can be found in the warranty terms and conditions.

Uniclass

Pr_30_59_48_04 Aluminium louvre panel unitsPrimary

CAWS

H11/437 Louvres

H11/140 Louvres

L10/54 Louvres

L10/650 Metal louvres

Size (l x w x d)

165 x 165 x 29 mm.

Material

Aluminium sections (AlMgSi 0.5, according EN 12020-2).

Finish

Anodized.

Guidance for specification option:

Layer thickness: 20 microns.

Colour

Grey (natural anodized).

Guidance for specification option:

Stock model: 00431111.

Texture

Satin.

Construction

Flangeless frame.

Air intake and exhaust performance

Air volume

23 m³/h.

Manufacturer guidance

Airflow at 2 Pa.

Weather performance

Discharge loss coefficient (minimum)

To BS EN 13030, Class 3.

Guidance for specification option:

Ce coefficient 0.221.
Cd coefficient 0.226.

Louvre configuration

Number of banks

One.

Blade orientation

Horizontal.

Blade pitch

33 mm.

Blade angle

Fixed.

Accessories

Not required.

Stainless steel 304 mesh, 6 x 6 mm.

Stainless steel 304 mesh, 10 x 10 mm.

Stainless steel 304 mesh, 20 x 20 mm.

Stainless steel 316 insect screen, 2.3 x 2.3 mm.

Stainless steel 316 mesh, 6 x 6 mm.

Stainless steel 316 mesh, 10 x 10 mm.

Stainless steel 316 mesh, 20 x 20 mm.

Burglar resistance louvre - 431RC2.

Integral accessories

Stainless steel 304 insect screen (2.3 x 2.3 mm).

Without mesh.

Air flow

K-factor (entry) to EN 13030, 20.47.
K-factor (discharge) to EN 13030, 19.58.

Free area

Visual free area: 59%.
Physical free area: 50%.

Ingress protection (IP) rating

IP2XD.

Guidance for specification option:

IP class (louvre with mesh; electrical installation at least 100 mm from louvre).

Contains Red List materials	No
Country of product manufacture	United Kingdom
Recyclability	100% recyclable

Color	Grey White Black Other
Finish	Anodized Powder-coated Satin Matt Gloss
Material	Aluminium Stainless steel
Shape	Square
Length	29 mm Manufacturer guidance Depth.
Width	165 mm 225 mm 325 mm 425 mm 525 mm 120 mm Bespoke Show more
Height	165 mm 225 mm 325 mm 425 mm 525 mm 120 mm Bespoke Show more
Warranty description	Ten year Five year Two year Manufacturer guidance Renson gives a basic ten-year warranty on all louvres. The gloss of powder coated parts is limited to five years. Motors are limited to two years. More details and modalities can be found in the warranty terms and conditions.

Aluminium Louvre Grille 431

Application

Description

General information

Color

Finish

Material

Shape

Length

Manufacturer guidance

Width

Height

Warranty description

Manufacturer guidance

Uniclass

CAWS

Product range

Specification data - Aluminium louvre panel units

Size (l x w x d)

165 x 165 x 29 mm.

Material

Aluminium sections (AlMgSi 0.5, according EN 12020-2).

Finish

Anodized.

Colour

Grey (natural anodized).

Texture

Satin.

Construction

Flangeless frame.

Air intake and exhaust performance

Air volume

23 m³/h.

Manufacturer guidance

Weather performance

Discharge loss coefficient (minimum)

To BS EN 13030, Class 3.

Louvre configuration

Number of banks

One.

Blade orientation

Horizontal.

Blade pitch

33 mm.

Blade angle

Fixed.

Accessories

Not required.

Stainless steel 304 mesh, 6 x 6 mm.

Stainless steel 304 mesh, 10 x 10 mm.

Stainless steel 304 mesh, 20 x 20 mm.

Stainless steel 316 insect screen, 2.3 x 2.3 mm.

Stainless steel 316 mesh, 6 x 6 mm.

Stainless steel 316 mesh, 10 x 10 mm.

Stainless steel 316 mesh, 20 x 20 mm.

Burglar resistance louvre - 431RC2.

Integral accessories

Air flow

Free area

Ingress protection (IP) rating

Sustainability data

Contains Red List materials

Country of product manufacture

Recyclability
