Aluminium Louvre 412

Name: Aluminium Louvre 412
Brand: Renson Fabrications Ltd
SKU: 7Hg38EqzKxDeyDGbRVEe7r

Verified by manufacturer 2 months ago

Powder-Coated

Renson Fabrications Ltd

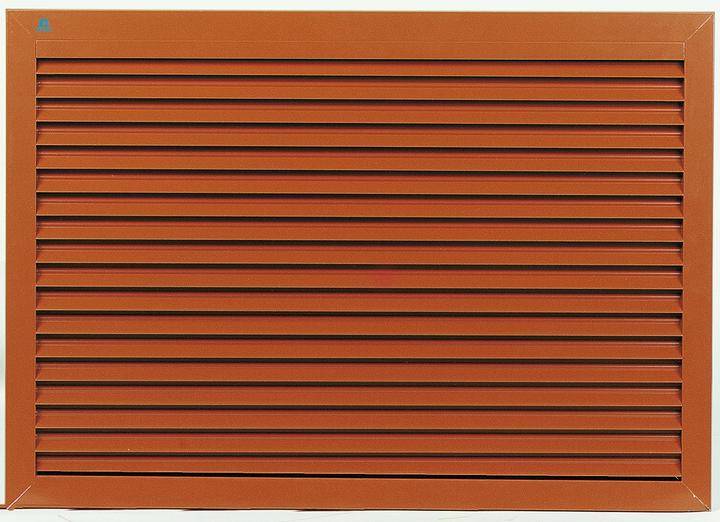

Built-in aluminium wall louvre with chevron section blades.

Jump to:

+44 (0)1622 754123 Website

Application

Typical applications include:

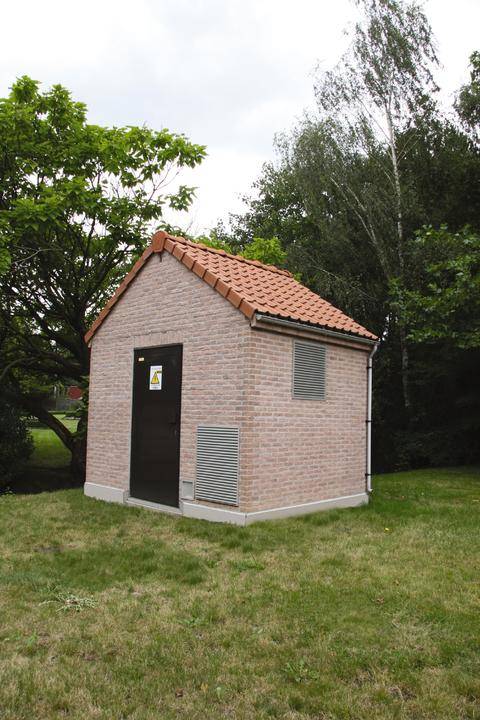

High-voltage stations.
IT rooms.

Description

Built-in wall louvre with chevron section blades and water resistance class A.

Features and benefits:

Quick and easy installation.
Sleek design.
Ingress-protected and with high privacy.
Fitted with earthing clamp.
IP44 classification (construction with water channel and insect screen).
Class A4 water resistance.
Manufactured from aluminium profiles AlMgSi 0.5 (according EN 12020-2).
Stainless steel 304 mesh (6 x 6 mm) as standard.
Anodized or powder-coated finish.
Minimum dimensions: 100 x 100 mm.

General information

Color	Other Grey
Finish	Anodized Gloss Matt Powder-coated Satin
Material	Aluminium Stainless steel
Shape	Square Rectangle
Length	34 mm Manufacturer guidance Depth.
Width	Bespoke 100 mm 200 mm 300 mm 400 mm 500 mm 600 mm Show more
Height	Bespoke 100 mm 200 mm 300 mm 400 mm
Warranty description	Ten year Five year Two year Manufacturer guidance Renson gives a basic ten-year warranty on all louvres. The gloss of powder coated parts is limited to five years. Motors are limited to two years. More details and modalities can be found in the warranty terms and conditions.

Uniclass	Pr_30_59_48_04 Aluminium louvre panel unitsPrimary
CAWS	H11/437 Louvres L10/54 Louvres H11/140 Louvres L10/650 Metal louvres

Product range	Louvres / Built-In Wall Louvres

Specification data - Aluminium louvre panel units

Size (l x w x d)	Guidance for specification option: Minimum dimensions: 100 x 100 mm. Depth: 34 mm. Depth to fit: 29 mm. Insert requirements.
Material	Aluminium sections (AlMgSi 0.5, according EN 12020-2).
Finish	Powder-coated. Guidance for specification option: Layer thickness: 40 microns.
Colour	RAL colour. Guidance for specification option: Insert requirements. Syntha Pulvin colour. Guidance for specification option: Insert requirements.
Texture	Gloss. Guidance for specification option: Gloss level 70%. Matt. Guidance for specification option: Gloss level 30%.
Construction	Flanged frame. Guidance for specification option: Flange size: 21 mm.
Air intake and exhaust performance	-
Air volume	- Manufacturer guidance Consult manufacturer and insert requirements.
Weather performance	-
Water penetration class (minimum)	To BS EN 13030, Class A. Guidance for specification option: Class for execution with mesh 2.3 x 2.3 mm and water channel: A4 (1 m/s).
Discharge loss coefficient (minimum)	To BS EN 13030, Class 4. Guidance for specification option: Ce coefficient 0.170. Cd coefficient 0.170.
Louvre configuration	-
Number of banks	One.
Blade orientation	Horizontal.
Blade pitch	20 mm chevron.
Blade angle	Fixed.
Accessories	Not required. Water channel. Drainage profile. Removable insect mesh. Filter. Flangeless frame (without flange). Glazed-in louvre 415. Stainless steel 304 mesh, 2.3 x 2.3 mm. Stainless steel 304 mesh, 10 x 10 mm. Stainless steel 304 mesh, 20 x 20 mm. Stainless steel 316 insect screen (2.3 x 2.3 mm). Stainless steel 316 mesh, 2.3 x 2.3 mm. Stainless steel 316 mesh, 10 x 10 mm. Stainless steel 316 mesh, 20 x 20 mm. Spring clips (small dimensions).

Integral accessories	Stainless steel 304 mesh (6 x 6 mm). Without mesh.
Air flow	K-factor (entry) to EN 13030, 34.60. K-factor (discharge) to EN 13030, 34.60.
Free area	Visual free area: 93%. Physical free area: 39%.
Ingress protection (IP) rating	IP2XD. Guidance for specification option: IP class for version with mesh 2.3 x 2.3 mm and water channel (electrical installation at least 350 mm): IP44.
Fixing	Brackets. Guidance for specification option: Brackets ref. 418. For louvres larger than approx. 3 m², a reinforcing mullion is required to suit span and wind load.

Sustainability data

Contains Red List materials	No
Country of material origin	Belgium
Country of product manufacture	United Kingdom
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	2 kg CO₂ eq/kg Self declared
Recyclability	100% recyclable
Recycled content As defined in clause 7.8 of BS EN ISO 14021	60 % Guidance for specification option: 15-60%.

Case studies

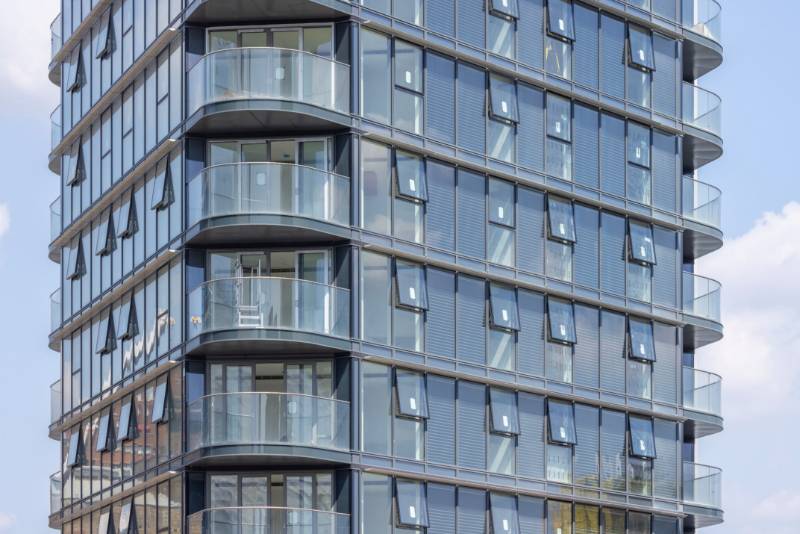

KC1 - LOTS ROAD
