Aluminium Louvre 414

Name: Aluminium Louvre 414
Brand: Renson Fabrications Ltd
SKU: 2eraybizHZQMAAiLRuEgJK

Verified by manufacturer 24 days ago

Anodized

Renson Fabrications Ltd

Glazed-in aluminium louvre with 50% free area.

Jump to:

+44 (0)1622 754123 Website

Application

Suitable for night cooling applications.
For 24, 28, 32 mm glazing sections.

Description

Glazed-in aluminium louvre with 50% free area and class A3 water resistance.

Features and benefits:

50% physical free area.
Water resistance: Class A3.
Manufactured from aluminium profiles AlMgSi 0.5 (according EN 12020-2).
Stainless steel 304 insect screen (2.3 x 2.3 mm) as standard.
Anodized or powder-coated finish.
Minimum dimensions: 130 x 130 mm.

General information

Color	Grey Other
Finish	Powder-coated Anodized Gloss Matt Satin
Material	Aluminium Stainless steel
Shape	Rectangle Square
Length	34 mm Manufacturer guidance Depth.
Width	Bespoke 130 mm
Height	Bespoke 130 mm
Warranty description	Ten year Five year Two year Manufacturer guidance Renson gives a basic ten-year warranty on all louvres. The gloss of powder coated parts is limited to five years. Motors are limited to two years. More details and modalities can be found in the warranty terms and conditions.

Uniclass	Pr_30_59_48_04 Aluminium louvre panel unitsPrimary
CAWS	H11/437 Louvres H11/140 Louvres L10/54 Louvres L10/650 Metal louvres

Product range	Louvres / Glazed-In Louvres

Specification data - Aluminium louvre panel units

Size (l x w x d)	Guidance for specification option: Minimum dimensions: 130 x 130 mm. Depth: 34 mm. Insert requirements.
Material	Aluminium sections (AlMgSi 0.5, according EN 12020-2).
Finish	Anodized. Guidance for specification option: Layer thickness: 20 microns.
Colour	Grey.
Texture	Satin.
Construction	24 mm frame thickness. 28 mm frame thickness. 32 mm frame thickness.
Weather performance	-
Water penetration class (minimum)	To BS EN 13030, Class A. Guidance for specification option: Class A3 (0.5 m/s).
Discharge loss coefficient (minimum)	To BS EN 13030, Class 3. Guidance for specification option: Class A3 (0.5 m/s).
Louvre configuration	-
Number of banks	One.
Blade orientation	Horizontal.
Blade pitch	33.3 mm.
Blade angle	Fixed.
Accessories	Not required. Drainage profile. Pressure-relief damper. Water channel. Removable mesh. Filter. Stainless steel 304 mesh, 6 x 6 mm. Stainless steel 304 mesh, 10 x 10 mm. Stainless steel 304 mesh, 20 x 20 mm. Stainless steel 316 insect screen (2.3 x 2.3 mm). Stainless steel 316 mesh, 6 x 6 mm. Stainless steel 316 mesh, 10 x 10 mm. Stainless steel 316 mesh, 20 x 20 mm.

Integral accessories	Stainless steel 304 insect screen (2.3 x 2.3 mm). Without mesh.
Fixing	Suitable for 24, 28, 32 mm glazing sections.
Air flow	K-factor (entry) to EN 13030, 20.47. K-factor (discharge) to EN 13030, 19.58.
Free area	Visual free area: 59%. Physical free area: 50%.
Ingress protection (IP) rating	IP2XD. Guidance for specification option: IP class (louvre with mesh; electrical installation at least 100 mm from louvre).

Sustainability data

Contains Red List materials	No
Country of material origin	Belgium
Country of product manufacture	United Kingdom
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	2 kg CO₂ eq/kg Self declared
Recyclability	100%
Recycled content As defined in clause 7.8 of BS EN ISO 14021	60 % Guidance for specification option: Actual Percentage cannot be guaranteed. May range between 15% and 60%. Manufacturer guidance Maximum.

Case studies

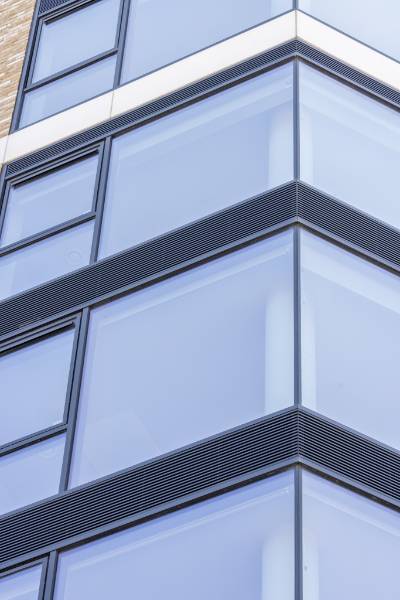

Perfume Factory
