Aluminium Louvre 415

Name: Aluminium Louvre 415
Brand: Renson Fabrications Ltd
SKU: 2ztZjUiJ2tbj8t3J4T8EZa

Verified by manufacturer 2 months ago

Anodized

Renson Fabrications Ltd

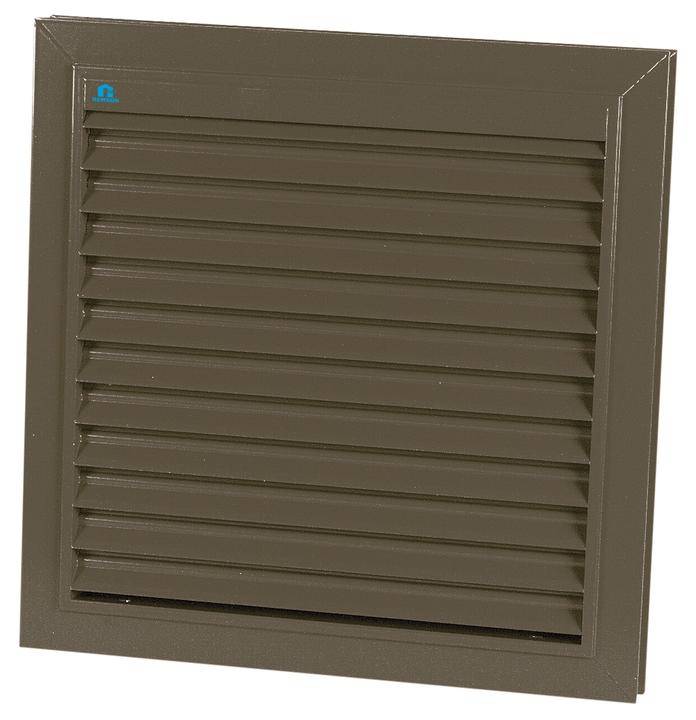

Aluminium glazed-in louvre with chevron section blades.

Jump to:

+44 (0)1622 754123 Website

Application

Window louvre with no look-through and stick-proof.

Description

Glazed-in window louvre with chevron blades, no look-through and stick-proof.

Features and benefits:

To be fitted like double glazing.
Flange width 24 mm, 28 mm or 32 mm.
Ingress-protected and with high privacy.
IP44 classification (construction with water channel and insect screen).
Manufactured from aluminium profiles AlMgSi 0.5 (according EN 12020-2).

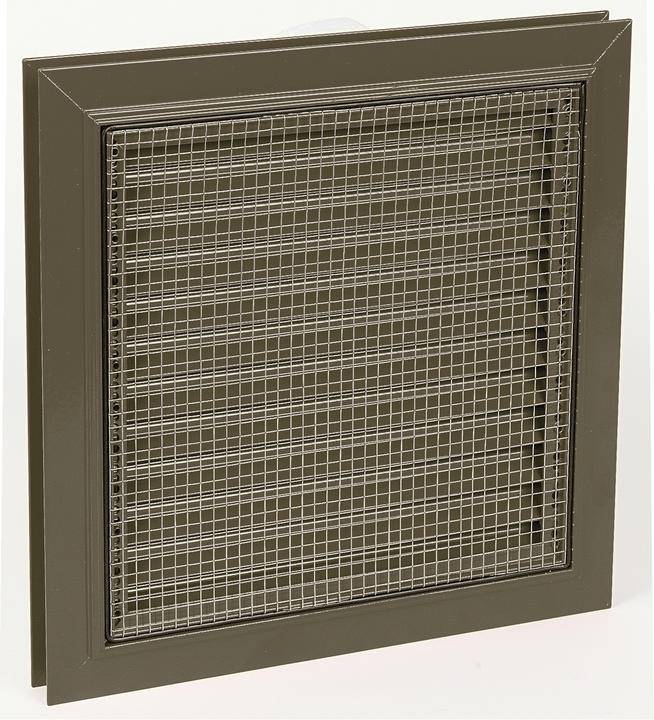

Stainless steel 304 mesh (6 x 6 mm) as standard.
Anodized or powder-coated finish.
Minimum dimensions: 130 x 130 mm.

General information

Color	Other Grey
Finish	Anodized Powder-coated Gloss Matt Satin
Material	Aluminium Stainless steel
Shape	Rectangle Square
Length	34 mm Manufacturer guidance Depth.
Width	Bespoke 130 mm
Height	Bespoke 130 mm
Warranty description	Ten year Five year Two year Manufacturer guidance Renson gives a basic ten-year warranty on all louvres. The gloss of powder coated parts is limited to five years. Motors are limited to two years. More details and modalities can be found in the warranty terms and conditions.

Uniclass	Pr_30_59_48_04 Aluminium louvre panel unitsPrimary
CAWS	H11/437 Louvres H11/140 Louvres L10/54 Louvres L10/650 Metal louvres

Product range	Louvres / Glazed-In Louvres

Specification data - Aluminium louvre panel units

Size (l x w x d)	Guidance for specification option: Minimum dimensions: 130 x 130 mm. Depth: 34 mm. Insert requirements.
Material	Aluminium sections (AlMgSi 0.5, according EN 12020-2).
Finish	Anodized. Guidance for specification option: Layer thickness: 20 microns.
Colour	Grey.
Texture	Satin.
Construction	24 mm frame thickness. 28 mm frame thickness. 32 mm frame thickness.
Weather performance	-
Water penetration class (minimum)	To BS EN 13030, Class A. Guidance for specification option: Class for execution with mesh 2.3 x 2.3 mm and water channel: A4 (1 m/s).
Discharge loss coefficient (minimum)	To BS EN 13030, Class 4. Guidance for specification option: Ce coefficient 0.170. Cd coefficient 0.170.
Louvre configuration	-
Number of banks	One.
Blade orientation	Horizontal.
Blade pitch	20 mm.
Blade angle	Fixed.
Accessories	Not required. Water channel. Drainage profile. Removable mesh. Filter. Stainless steel 304 mesh, 6 x 6 mm. Stainless steel 304 mesh, 10 x 10 mm. Stainless steel 304 mesh, 20 x 20 mm. Stainless steel 316 insect screen (2.3 x 2.3 mm). Stainless steel 316 mesh, 6 x 6 mm. Stainless steel 316 mesh, 10 x 10 mm. Stainless steel 316 mesh, 20 x 20 mm.

Integral accessories	Stainless steel 304 mesh (6 x 6 mm). Without mesh.
Air flow	K-factor (entry) to EN 13030, 34.60. K-factor (discharge) to EN 13030, 34.60.
Free area	Visual free area: 93%. Physical free area: 39%.
Ingress protection (IP) rating	IP2XD. Guidance for specification option: IP class for version with mesh 2.3 x 2.3 mm and water channel (electrical installation at least 350 mm): IP44.

Sustainability data

Contains Red List materials	No
Country of material origin	Belgium
Country of product manufacture	Belgium
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	2 kg CO₂ eq/kg Self declared
Recyclability	100% recyclable
Recycled content As defined in clause 7.8 of BS EN ISO 14021	60 % Guidance for specification option: 15-60%.
