Compare variants

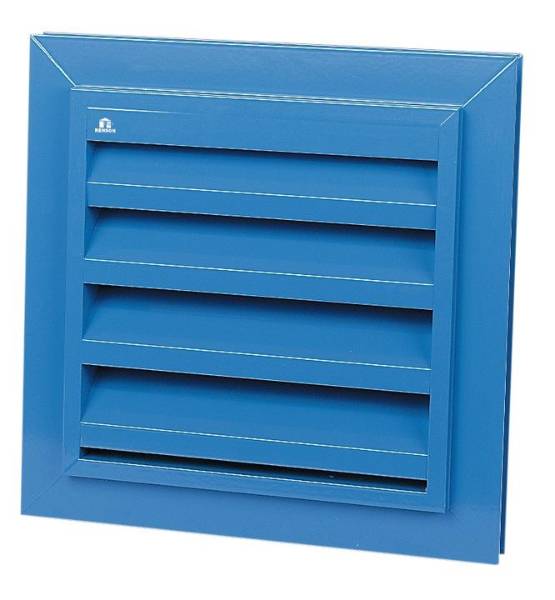

Glazed-in aluminium louvre, heavy-duty series.
Glazed-in aluminium louvre, heavy-duty series.
Grey, Other
Grey, Other
Anodized, Powder-coated, Satin, Gloss, Matt
Anodized, Powder-coated, Satin, Gloss, Matt
Aluminium, Stainless steel
Aluminium, Stainless steel
Square
Square
51 mm
51 mm
Bespoke, 220 mm
Bespoke, 220 mm
Bespoke, 220 mm
Bespoke, 220 mm
Ten year, Five year, Two year
Ten year, Five year, Two year
Specification
-
-
Aluminium sections (AlMgSi 0.5, according EN 12020-2).
Aluminium sections (AlMgSi 0.5, according EN 12020-2).
Anodized.
Powder-coated.
Grey.
RAL colour., Syntha Pulvin colour.
Satin.
Gloss., Matt.
Flanged frame, 24 mm., Flanged frame, 28 mm.
Flanged frame, 24 mm., Flanged frame, 28 mm.
-
-
To BS EN 13030, Class 3.
To BS EN 13030, Class 3.
-
-
One.
One.
Horizontal.
Horizontal.
50 mm.
50 mm.
Fixed.
Fixed.
Not required., Water channel., Drainage profile., Removable mesh., Filter., Stainless steel 304 mesh, 6 x 6 mm., Stainless steel 304 mesh, 10 x 10 mm., Stainless steel 304 mesh, 20 x 20 mm., Stainless steel 316 insect screen (2.3 x 2.3 mm)., Stainless steel 316 mesh, 6 x 6 mm., Stainless steel 316 mesh, 10 x 10 mm., Stainless steel 316 mesh, 20 x 20 mm.
Not required., Water channel., Drainage profile., Removable mesh., Filter., Stainless steel 304 mesh, 6 x 6 mm., Stainless steel 304 mesh, 10 x 10 mm., Stainless steel 304 mesh, 20 x 20 mm., Stainless steel 316 insect screen (2.3 x 2.3 mm)., Stainless steel 316 mesh, 6 x 6 mm., Stainless steel 316 mesh, 10 x 10 mm., Stainless steel 316 mesh, 20 x 20 mm.
Additional properties
Stainless steel 304 insect screen (2.3 x 2.3 mm)., Without mesh.
Stainless steel 304 insect screen (2.3 x 2.3 mm)., Without mesh.
K-factor (entry) to EN 13030, 13.42.
K-factor (discharge) to EN 13030, 11.73.
K-factor (discharge) to EN 13030, 11.73.
K-factor (entry) to EN 13030, 13.42.
K-factor (discharge) to EN 13030, 11.73.
K-factor (discharge) to EN 13030, 11.73.
Visual free area: 70%.
Physical free area: 49%
Physical free area: 49%
Visual free area: 70%.
Physical free area: 49%
Physical free area: 49%
IP2XD.
IP2XD.
Sustainability data
United Kingdom
United Kingdom
100% recyclable
100% recyclable
