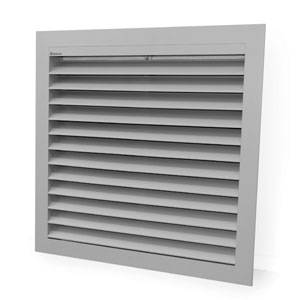

Name: Aluminium Louvre Grille 480
Brand: Renson Fabrications Ltd
SKU: f4MBiDfU9C6ZYdaTp2k6VP

Verified by manufacturer 24 days ago

Color

Grey

Other

Finish

Anodized

Powder-coated

Gloss

Matt

Material

Aluminium

Stainless steel

Shape

Square

Length

87 mm

Manufacturer guidance

Depth.

Width

Bespoke

300 mm

Height

Bespoke

300 mm

Warranty description

Ten year

Five year

Two year

Manufacturer guidance

Renson gives a basic ten-year warranty on all louvres.
The gloss of powder coated parts is limited to five years.
Motors are limited to two years.
More details and modalities can be found in the warranty terms and conditions.

Uniclass

Pr_30_59_48_04 Aluminium louvre panel unitsPrimary

CAWS

H11/437 Louvres

L10/54 Louvres

L10/650 Metal louvres

H11/140 Louvres

Size (l x w x d)

Guidance for specification option:

Minimum dimensions: 300 x 300 mm.
Depth: 87 mm.
Depth to fit: 82 mm.
Insert requirements.

Material

Aluminium sections (AlMgSi 0.5, according EN 12020-2).

Finish

Anodized.

Guidance for specification option:

Layer thickness: 20 microns.

Colour

Grey.

Texture

Satin.

Construction

Flanged frame.

Guidance for specification option:

Flange size: 50 mm.

Weather performance

Discharge loss coefficient (minimum)

To BS EN 13030, Class 1.

Guidance for specification option:

Ce coefficient 0.466.
Cd coefficient 0.440.

Louvre configuration

Number of banks

Two.

Blade orientation

Horizontal.

Blade pitch

60 mm.

Blade angle

Fixed.

Accessories

Not required.

Water channel.

Drainage profile.

Removable mesh.

Filter.

Flangeless frame (without flange).

Glazed-in louvre 483.

Stainless steel 304 insect screen, 2.3 x 2.3 mm.

Stainless steel 304 mesh, 10 x 10 mm.

Stainless steel 304 mesh, 20 x 20 mm.

Stainless steel 316 insect screen, 2.3 x 2.3 mm.

Stainless steel 316 mesh, 10 x 10 mm.

Stainless steel 316 mesh, 20 x 20 mm.

Integral accessories

Stainless steel 304 mesh (6 x 6 mm).

Without mesh.

Fixing

Brackets.

Guidance for specification option:

Bracket reference: 429.
For louvres taller than approx. 3 m², a reinforcing mullion is required to suit span and wind load.

Air flow

K-factor (entry) to EN 13030, 4.6.
K-factor (discharge) to EN 13030, 5.17.

Free area

Visual free area: 90%.
Physical free area: 76%.

Ingress protection (IP) rating

IP2XD.

Guidance for specification option:

IP class (louvre with mesh; electrical installation at least 180 mm from louvre).

Country of product manufacture

United Kingdom

Recyclability

100% recyclable

Color	Grey Other
Finish	Anodized Powder-coated Gloss Matt
Material	Aluminium Stainless steel
Shape	Square
Length	87 mm Manufacturer guidance Depth.
Width	Bespoke 300 mm
Height	Bespoke 300 mm
Warranty description	Ten year Five year Two year Manufacturer guidance Renson gives a basic ten-year warranty on all louvres. The gloss of powder coated parts is limited to five years. Motors are limited to two years. More details and modalities can be found in the warranty terms and conditions.

Size (l x w x d)	Guidance for specification option: Minimum dimensions: 300 x 300 mm. Depth: 87 mm. Depth to fit: 82 mm. Insert requirements.
Material	Aluminium sections (AlMgSi 0.5, according EN 12020-2).
Finish	Anodized. Guidance for specification option: Layer thickness: 20 microns.
Colour	Grey.
Texture	Satin.
Construction	Flanged frame. Guidance for specification option: Flange size: 50 mm.
Weather performance	-
Discharge loss coefficient (minimum)	To BS EN 13030, Class 1. Guidance for specification option: Ce coefficient 0.466. Cd coefficient 0.440.
Louvre configuration	-
Number of banks	Two.
Blade orientation	Horizontal.
Blade pitch	60 mm.
Blade angle	Fixed.
Accessories	Not required. Water channel. Drainage profile. Removable mesh. Filter. Flangeless frame (without flange). Glazed-in louvre 483. Stainless steel 304 insect screen, 2.3 x 2.3 mm. Stainless steel 304 mesh, 10 x 10 mm. Stainless steel 304 mesh, 20 x 20 mm. Stainless steel 316 insect screen, 2.3 x 2.3 mm. Stainless steel 316 mesh, 10 x 10 mm. Stainless steel 316 mesh, 20 x 20 mm.

Integral accessories	Stainless steel 304 mesh (6 x 6 mm). Without mesh.
Fixing	Brackets. Guidance for specification option: Bracket reference: 429. For louvres taller than approx. 3 m², a reinforcing mullion is required to suit span and wind load.
Air flow	K-factor (entry) to EN 13030, 4.6. K-factor (discharge) to EN 13030, 5.17.
Free area	Visual free area: 90%. Physical free area: 76%.
Ingress protection (IP) rating	IP2XD. Guidance for specification option: IP class (louvre with mesh; electrical installation at least 180 mm from louvre).
