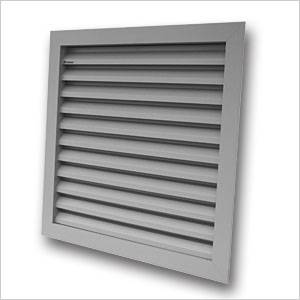

Aluminium Louvre Grille 452 - Weatherable Louvre

Name: Aluminium Louvre Grille 452 - Weatherable Louvre
Brand: Renson Fabrications Ltd
SKU: bepjia7MnEFHhvWRmy4j6c

Verified by manufacturer 2 months ago

Anodized

Renson Fabrications Ltd

Water-resistant and heavy-duty aluminium wall louvre.

Jump to:

+44 (0)1622 754123 Website

Application

Suitable applications include:

Application where strength, stick-proof and excellent weatherability are important selection criteria.
High-voltage cabins.
HVAC.
No see-through.

Description

Wall louvre, heavy-duty series with chevron section blades.

Features and benefits:

Water-resistant.
Light, strong and durable.
Manufactured from aluminium profiles AlMgSi 0.5 (according EN 12020-2).
Stainless steel 304 mesh (6 x 6 mm) as standard.
Anodized or powder-coated finish.
Minimum dimensions: 310 x 310 mm.

General information

Color	Grey Other
Finish	Anodized Powder-coated Textured Matt Gloss
Material	Aluminium Stainless steel
Shape	Rectangle
Length	87 mm Manufacturer guidance Depth.
Width	Bespoke 300 mm
Height	Bespoke 310 mm
Warranty description	Ten year Five year Two year Manufacturer guidance Renson gives a basic ten-year warranty on all louvres. The gloss of powder coated parts is limited to five years. Motors are limited to two years. More details and modalities can be found in the warranty terms and conditions.

Uniclass	Pr_30_59_48_04 Aluminium louvre panel unitsPrimary
CAWS	H11/437 Louvres L10/54 Louvres L10/650 Metal louvres H11/140 Louvres

Product range	Louvres / Built-In Wall Louvres

Specification data - Aluminium louvre panel units

Size (l x w x d)	Guidance for specification option: Minimum dimensions: 120 x 120 mm. Depth: 87 mm. Depth to fit: 82 mm. Insert requirements.
Material	Aluminium sections (AlMgSi 0.5, according EN 12020-2).
Finish	Anodized. Guidance for specification option: Layer thickness: 20 microns.
Colour	Grey.
Texture	Satin.
Construction	Flanged frame. Guidance for specification option: Flange size: 50 mm.
Weather performance	-
Water penetration class (minimum)	To BS EN 13030, Class A. Guidance for specification option: Class for version with mesh 6 x 6 mm and water channel: A4 (1 m/s).
Discharge loss coefficient (minimum)	To BS EN 13030, Class 4. Guidance for specification option: Ce coefficient 0.123. Cd coefficient 0.112.
Louvre configuration	-
Number of banks	Two.
Blade orientation	Horizontal.
Blade pitch	66 mm.
Blade angle	Fixed.
Accessories	Not required. Water channel. Drainage profile. Removable insect mesh. Filter. Flangeless frame (without flange). Glazed-in louvre. Stainless steel 304 insect screen, 2.3 x 2.3 mm. Stainless steel 304 mesh, 10 x 10 mm. Stainless steel 304 mesh, 20 x 20 mm. Stainless steel 316 insect screen, 2.3 x 2.3 mm. Stainless steel 316 mesh, 10 x 10 mm. Stainless steel 316 mesh, 20 x 20 mm.

Integral accessories	Stainless steel 304 mesh (6 x 6 mm). Without mesh.
Fixing	Brackets. Guidance for specification option: Bracket reference: 429. For louvres taller than approx. 3 m², a reinforcing mullion is required to suit span and wind load.
Air flow	K-factor (entry) to EN 13030, 66.1. K-factor (discharge) to EN 13030, 79.7.
Free area	Visual free area: 70%. Physical free area: 41%.
Ingress protection (IP) rating	IP2XD. Guidance for specification option: IP class for version with mesh 2.3 x 2.3 mm and water channel (electrical installation at least 250 mm): IP44.

Sustainability data

Recyclability	100% recyclable
