Aluminium Louvre Grille 483

Verified by manufacturer 24 days ago

Anodized

Renson Fabrications Ltd Variant:

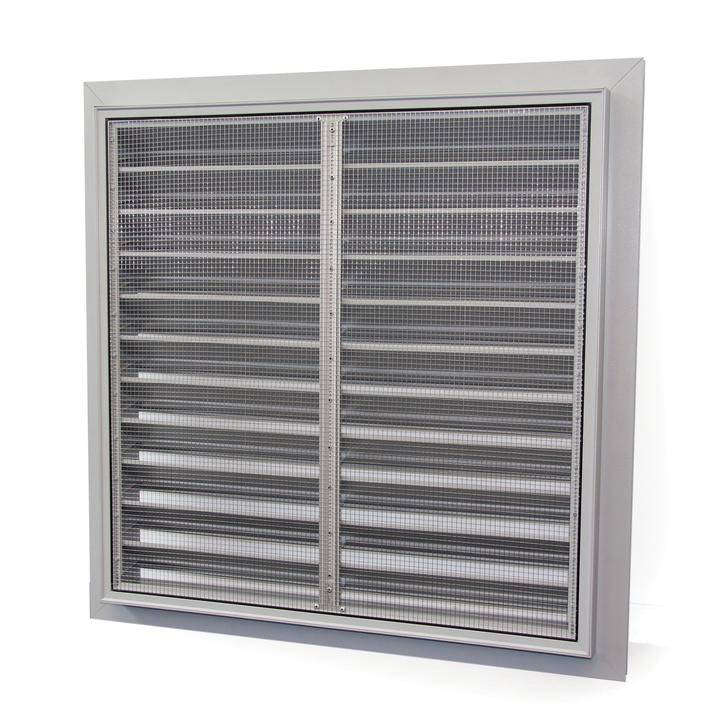

High-airflow glazed-in aluminium louvre.

Jump to:
+44 (0)1622 754123 Website

Application

  • Applications with request for high air-flow.
  • Suitable for 24 and 28 mm glazing sections.

Description

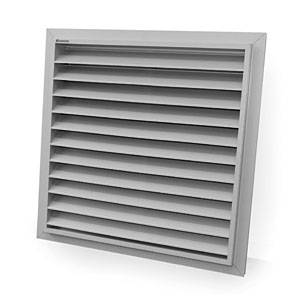

High-air flow glazed-in louvre.


Features and benefits:

  • Suitable for applications with request for high air-flow.
  • High flow.
  • To be fitted like double glazing.
  • Frame thickness: 24 mm (frame thickness of 8 to 80 mm on request).
  • Light, strong and durable.
  • 76% physical free area.
  • Manufactured from aluminium profiles AlMgSi 0.5 (according EN 12020-2).
  • Minimum dimensions: 385 x 385 mm.
  • Stainless steel 304 mesh (6 x 6 mm).
  • Anodized or powder-coated finish.

General information

Color

Grey

Other

Finish

Anodized

Powder-coated

Gloss

Matt

Material

Aluminium

Stainless steel

Shape

Square

Length

87 mm

Width

385 mm

Bespoke

Height

385 mm

Bespoke

Warranty description

Ten year

Five year

Two year

Manufacturer guidance

  • Renson gives a basic ten-year warranty on all louvres.
  • The gloss of powder coated parts is limited to five years.
  • Motors are limited to two years.
  • More details and modalities can be found in the warranty terms and conditions.

Uniclass

Pr_30_59_48_04 Aluminium louvre panel unitsPrimary

CAWS

H11/437 Louvres

H11/140 Louvres

L10/54 Louvres

L10/650 Metal louvres

Product range

Louvres / Glazed-In Louvres

Specification data - Aluminium louvre panel units

Size (l x w x d)

Guidance for specification option:

  • Minimum dimensions: 385 x 385 mm.
  • Depth: 87 mm.
  • Insert requirements.

Material

Aluminium sections (AlMgSi 0.5, according EN 12020-2).

Finish

Anodized.

Guidance for specification option:

Layer thickness: 20 microns.

Colour

Grey.

Texture

Satin.

Construction

Flanged frame.

Guidance for specification option:

Frame thickness: 24 mm (frame thickness of 8 to 80 mm on request).

Weather performance

-

Discharge loss coefficient (minimum)

To BS EN 13030, Class 1.

Guidance for specification option:

  • Ce coefficient 0.466.
  • Cd coefficient 0.440.

Louvre configuration

-

Number of banks

Two.

Blade orientation

Horizontal.

Blade pitch

50 mm.

Blade angle

Fixed.

Accessories

Not required.

Water channel.

Drainage profile.

Removable mesh.

Filter.

Stainless steel 304 insect screen, 2.3 x 2.3 mm.

Stainless steel 304 mesh, 10 x 10 mm.

Stainless steel 304 mesh, 20 x 20 mm.

Stainless steel 316 insect screen, 2.3 x 2.3 mm.

Stainless steel 316 mesh, 10 x 10 mm.

Stainless steel 316 mesh, 20 x 20 mm.

Integral accessories


Stainless steel 304 mesh (6 x 6 mm).

Without mesh.

Fixing

Suitable for 24 and 28 mm glazing sections.

Guidance for specification option:

Other thicknesses on request; consult manufacturer for details.

Air flow

K-factor (entry) to EN 13030, 4.6.
K-factor (discharge) to EN 13030, 5.17.

Free area

Visual free area: 90%.
Physical free area: 76%.

Sustainability data

Country of product manufacture

United Kingdom

Recyclability

100% recyclable
