RIM800 Relay Interface Module With Cover

Verified by manufacturer 3 months ago

Johnson Controls Third party certifications:
  • Certificate of constancy of performance

    Certificate type

Relay interface module.

Jump to:
BOS
Website

Application

ANC-8 ancillary housing.

The housing can accommodate up to eight ancillary PCBs. A stacking kit is available if a second layer of PCBs is required

Description

The RIM800 Addressable Relay Interface Module provides

one volt-free changeover contact unsupervised output.

The relay is controlled by a command sent from the Tyco

MX Control and Indicating Equipment (CIE) via the MX

addressable loop and may be used to signal states to other

systems (e.g. security systems) or to energise loads such

as Door Holders. The relay operation is determined by the

c.i.e. programming. The RIM800 has a red LED which may

be configured to indicate relay activation and c.i.e. polling.


Features and benefits:

  • Addressable changeover volt-free relay contact
  • LED indication of relay operation
  • Common MX module footprint
  • Range of mounting enclosures
  • ActivFire Listed afp-1446
  • FPANZ Listed VF/642.


The RIM800 is supplied as an open circuit board (PCB)

with mounting hardware and must be fitted in a suitable

enclosure. It may be mounted on a gear plate using plastic

standoffs, to an M520 Ancillary Cover and K2142 back box,

or fitted into a D800 Ancillary Housing. The K2142 mounting box provides a convenient surface mounting enclosure and the M520 Cover is designed to accommodate the RIM800.


The RIM800 is shipped with a default (invalid) address of

255 and must be set to the correct loop address using the

850EMT or MX Service Tool and programming lead.

General information

Color

Green

Finish

Acrylic

Material

Plastic

Shape

Rectangle

Length

25 mm

Guidance for specification option:

Depth

Width

84 mm

Height

61 mm

Warranty description

Three year

Uniclass

Pr_75_80_30_28 Fire alarm input and output modulesPrimary

Specification data - Fire alarm input and output modules

Standards

To EN 50130-4 in respect of Conducted Disturbances, Radiated Immunity, Electrostatic Discharge, Fast Transients and Slow High Energy, – EN 61000-6-3 for emissions.

Device type

Relay Interface Module.

Mounting arrangement

Fitted into a D800 Ancillary Housing.

M520 Ancillary Cover and K2142 back box.

Mounted on a gear plate using plastic standoffs.

Operating temperature

–25 to +70°C.

RelativeHumidity

10–95% (non condensing).

Voltage

20–40 Vdc.

Manufacturer guidance

  • Quiescent Current 285 μA.
  • Alarm State Current 2.8 mA.
  • Relay Contact (maximum) 2A at 30 Vdc.
  • Maximum RIM800 per Loop 200/250.

Accessories

517.035.010 K2142 Back Box.

557.201.401 D800 Ancillary Housing.

M520 Ancillary Cover.

Sustainability data

Contains Red List materials

No

Country of material origin

Czechia

Country of product manufacture

Czechia

Material

Plastic

Manufacturing plant location

Expected Life

Ten year

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

Third party certifications

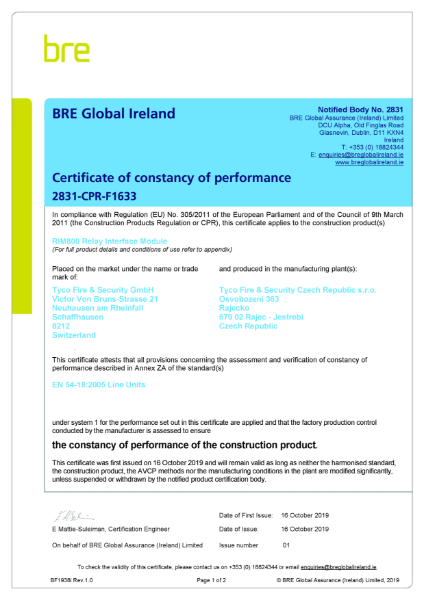

Certificate of constancy of performance

Certificate of constancy of performance

RIM800 CPR

Literature

568.800.033 RIM800 Relay Interface Module With Cover

568.800.033 RIM800 Relay Interface Module With Cover
