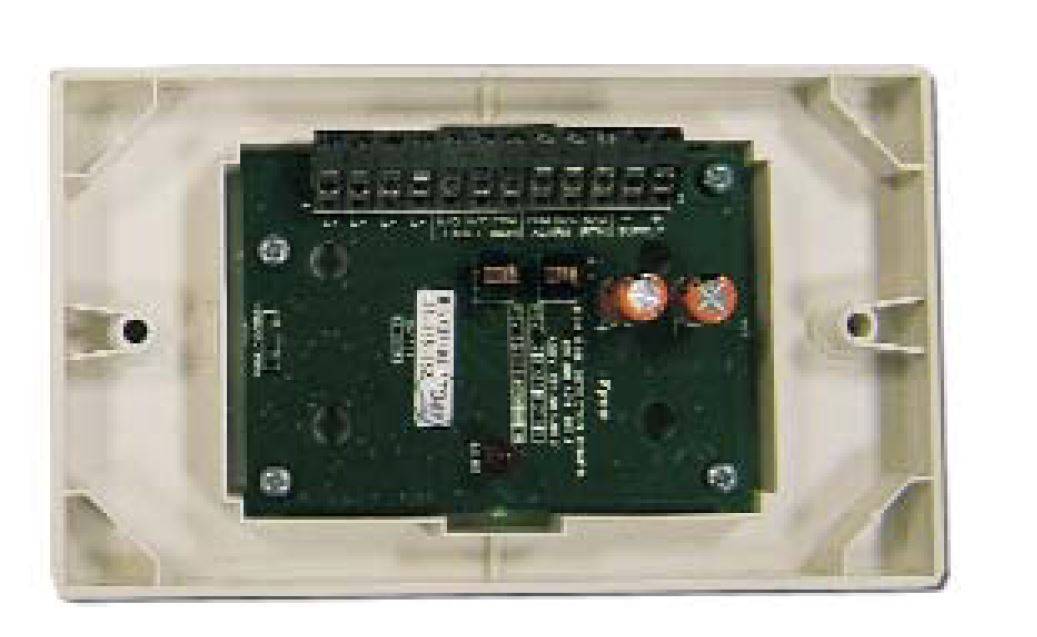

BDM800 Beam Detector Module With Cover

Verified by manufacturer 2 months ago

Johnson Controls Third party certifications:
  • Certificate of constancy of performance

    Certificate type

MX loop powered beam detector module.

Jump to:
BOS
Website

Application

Designed to interface the MINERVA® FireRay 50R/100R/2000 Beam Detectors to the MX Digital Addressable Loop.

Description

The BDM800 Beam Detector Module is designed to interface the MINERVA® FireRay 50R/100R/2000 Beam Detectors to the MX Digital Addressable Loop. The BDM800 provides power from the loop, monitors the Fire and Fault Relay Contacts of the detector and also monitors the wiring to the detector for open and short circuit faults.


The BDM800 can be used to power the complete MINERVA® FireRay 2000 system (via the loop) or just the control and receiver units with a second BDM800 used to power the transmitter unit. Up to Thirteen BDM800’s driving MINERVA® FireRay 50R/100R/2000 beam detectors can be connected to a single loop.


Features and benefits:

  • Powers Beam Detectors directly from the MX Digital Loop.
  • Reduces wiring and installation costs.
  • Monitors Beam Detectors for Fire and Fault.
  • Monitors interconnections for open and short circuit faults.
  • LPCB and VdS Approved.
  • Can be installed to BS5839 Part 1:2002.
  • Onboard LED indicates polling and activation.
  • May be used with the MINERVA® FireRay 50R and 100R reflective beam for greater savings on installation.
  • Compatible with the MINERVA® FireRay 2000 beam detector.
  • Optional BTM800 beam termination module to further simplify installation.
  • Supplied fitted to a standard double gang ancillary front cover.

General information

Color

White

Finish

Acrylic

Material

Plastic

Shape

Rectangle

Length

14 mm

Guidance for specification option:

Depth

Width

148 mm

Height

87 mm

Warranty description

Three year

Uniclass

Pr_75_80_30_28 Fire alarm input and output modulesPrimary

Specification data - Fire alarm input and output modules

Standards

To EN 50130-4 and EN 61000-6-3.

Third-party certification

LPCB and VdS Approved.

Device type

Beam Detector Module With Cover.

Mounting arrangement

Surface.

Enclosure

-

Material

Plastic.

Colour

White.

Operating temperature

-10 to +55°C.

RelativeHumidity

Up to 95% RH (non condensing).

Sustainability data

Contains Red List materials

No

Country of material origin

Czechia

Country of product manufacture

Czechia

Material

Plastic

Manufacturing plant location

Expected Life

Ten year

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

Third party certifications

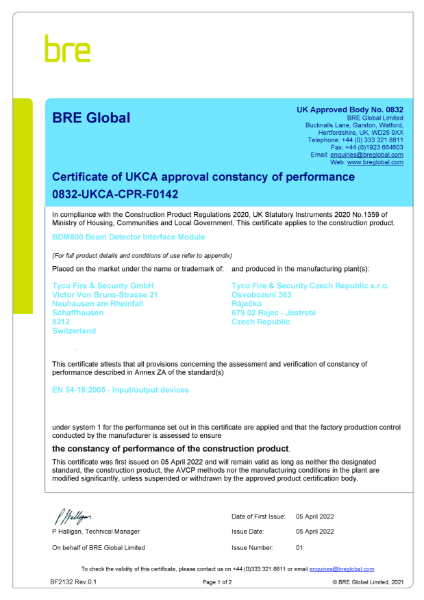

Certificate of constancy of performance

Certificate of constancy of performance

BDM800 CPR

Literature

555.800.066 BDM800 Beam Detector Module With Cover
