DIM800 Detector Input Module With Cover

Verified by manufacturer 3 months ago

Johnson Controls Third party certifications:
  • Certificate of constancy of performance

    Certificate type

Detector input module.

Jump to:
BOS
Website

Application

INSTALLATION OF MODULES INTO AN ANC8 ANCILLARY HOUSING The housing can accommodate up to eight ancillary PCBs. A stacking kit is available if a second layer of PCBs is required.

Description

The DIM800 Addressable Detector Input Module interfaces two conventional detector circuits onto the MX addressable loop. Each circuit can support 3 mA of detector quiescent current and requires a 4k7 Ohm EOL (End Of Line) resistor. The DIM800 requires a suitably rated external 24 V supply to power the detector circuits. Each circuit may be mapped to different zones on the fire panel. Unused circuits must be terminated with an EOL. Do not connect the detection circuits to non-isolated electrical equipment.


Features and benefits:

  • Compatible with MX Addressable Loop on SIMPLEX 4100ESi, VIGILANT MX1 and VIGILANT MX4428 panels
  • Interface up to two circuits of conventional detectors
  • Requires external 24 Vdc supply
  • Common MX module footprint
  • Wide range of compatible detectors.
  • Consult literature for Detector Compatibility.


The DIM800 is supplied as an open circuit board (PCB) with mounting hardware and EOL resistors and must be fitted in a suitable enclosure. It may be mounted on a gear plate using plastic standoffs, to an M520 Ancillary Cover and K2142 back box, or into a D800 Ancillary Housing. The K2142 mounting box provides a convenient surface mounting enclosure and the M520 Cover is designed to accommodate the DIM800.


Note that the external power supply voltage rating is critical for compatibility with some detectors. This supply may be common to a number of DIM800s at the same location, but must be located with the DIM800 modules otherwise only one DIM800 and one circuit may be used on each PSU feed.


The DIM800 is shipped with a default (invalid) address of 255 and must be set to the correct loop address using the 850EMT or MX Service Tool.

General information

Color

Green

Finish

Acrylic

Material

Plastic

Shape

Rectangle

Length

25 mm

Guidance for specification option:

Depth

Width

84 mm

Height

61 mm

Warranty description

Three year

Uniclass

Pr_75_80_30_28 Fire alarm input and output modulesPrimary

Specification data - Fire alarm input and output modules

Device type

Detector Input Module.

Mounting arrangement

M520 Ancillary Cover.

Voltage

20–40 Vdc.

Manufacturer guidance

Quiescent Current 280 μA.

Alarm State Current 280 μA.

Operating temperature

–25 to +70°C.

RelativeHumidity

10–95% (non condensing).

Accessories

517.035.010 K2142 Back Box.

557.201.401 D800 Ancillary Housing.

Sustainability data

Contains Red List materials

No

Country of material origin

Czechia

Country of product manufacture

Czechia

Material

Plastic

Manufacturing plant location

Expected Life

Ten year

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

Third party certifications

Certificate of constancy of performance

Certificate of constancy of performance

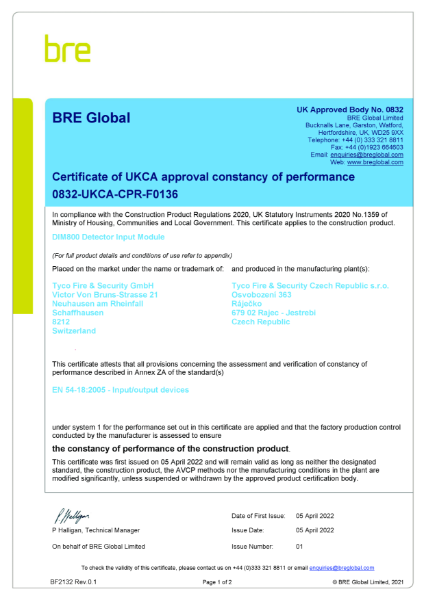

DIM800 CPR

Literature

555.800.042 DIM800 Detector Input Module With Cover

555.800.042 DIM800 Detector Input Module With Cover
