IF800Ex MZX Digital Addressable Interface Module Assembly
Verified by manufacturer 5 months ago

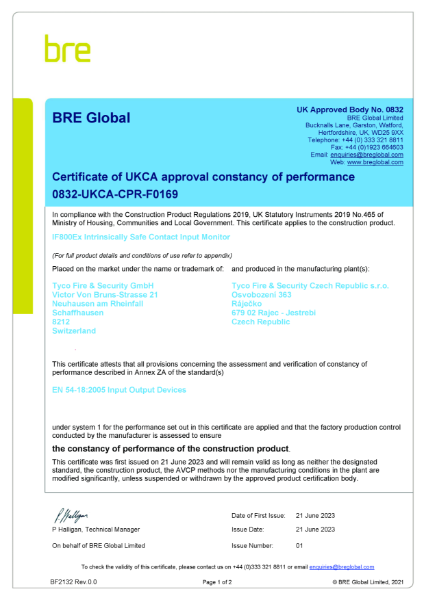

Certificate of constancy of performance
Certificate type
Digital addressable interface module assembly.
Description
The Intrinsically Safe IF800Ex Addressable Interface Module is designed to monitor a clean contact from a “simple apparatus”, e.g., detector, switch, etc., in a hazardous area and communicate its status to compatible MX Control and Indicating Equipment (c.i.e.). The IF800Ex is self-contained in a grey compression-moulded glass-filled polyester box with 3 x 20 mm cable gland holes. The electronic components are mounted on a double sided printed circuit board (PCB) built into a potted module formed from a plastic moulding. Connectivity is via two terminal blocks fitted to the PCB. The remote LED output is not to be used.
The module can be configured to initiate an interrupt procedure in the event of an alarm condition.
The box is to be surface mounted.
General information
Color | Grey |
Material | Polyester |
Shape | Square |
Length | 95 mm Guidance for specification option: Depth |
Width | 122 mm |
Height | 120 mm |
Uniclass |
Specification data - Fire alarm input and output modules
Third-party certification | ATEX certified: BAS01ATEX1394X. IECEX Certificate IECEx BAS 07.0063X. |
Device type | Digital Addressable Interface Module Assembly. |
Mounting arrangement | Surface. |
Enclosure | |
Ingress protection (minimum) | IP 65. |
Material | Compression-moulded glass-filled polyester box. |
Colour | Grey. |
Voltage | 20–40 Vdc. Guidance for specification option: Quiescent Current 325 μA. |
Operating temperature | –25 to +70°C. |
RelativeHumidity | 10–95% (non condensing). |
Sustainability data
Material | Polyester |
Expected Life | Ten year |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
Certificate of constancy of performance
IF800Ex CPR
Literature
514.001.062 IF800Ex MZX Digital Addressable Interface Module Assembly
