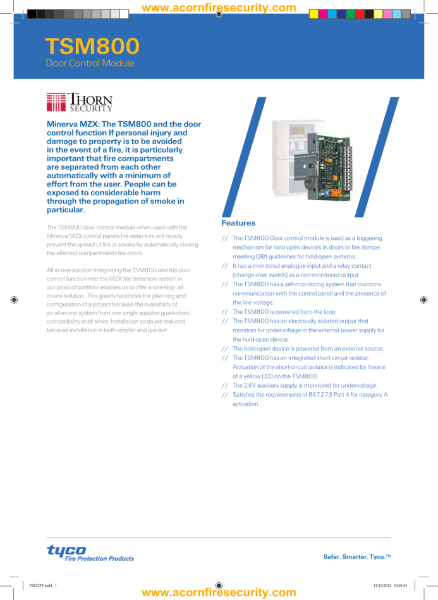

TSM800 - Door Control Module

The TSM800 door control module when used with the

Minerva MZX control panels fire detectors will rapidly

prevent the spread of fire or smoke by automatically closing the affected compartments fire doors.

All-in-one solution Integrating the TSM800 and the door

control function into the MZX fire detection system in

our product portfolio enables us to offer a one-stop, allin-

one solution. This greatly facilitates the planning and

configuration of a project because the availability of

an all-in-one system from one single supplier guarantees

compatibility at all times. Installation costs are reduced

because installation is both simpler and quicker.

Features and benefits:

• The TSM800 Door control module is used as a triggering mechanism for hold-open devices in doors or fire dampe meeting DIBt guidelines for hold-open systems.
• It has a monitored analogue input and a relay contact (change-over switch) as a non-monitored output.
• The TSM800 has a self-monitoring system that monitors communication with the control panel and the presence of the line voltage.
• The TSM800 is powered from the loop.
• The TSM800 has an electrically isolated output that monitors for undervoltage in the external power supply for the hold-open device.
• The hold-open device is powered from an external source.
• The TSM800 has an integrated short-circuit isolator.
• Actuation of the short-circuit isolator is indicated by means of a yellow LED on the TSM800.
• The 24V auxiliary supply is monitored for undervoltage.
• Satisfies the requirements of BS 7273-4 for category A activation.

The unit triggers the process of closing fire compartment doors whenever circumstances indicate there might be a problem in order to eliminate the possibility of dangerous situations developing.

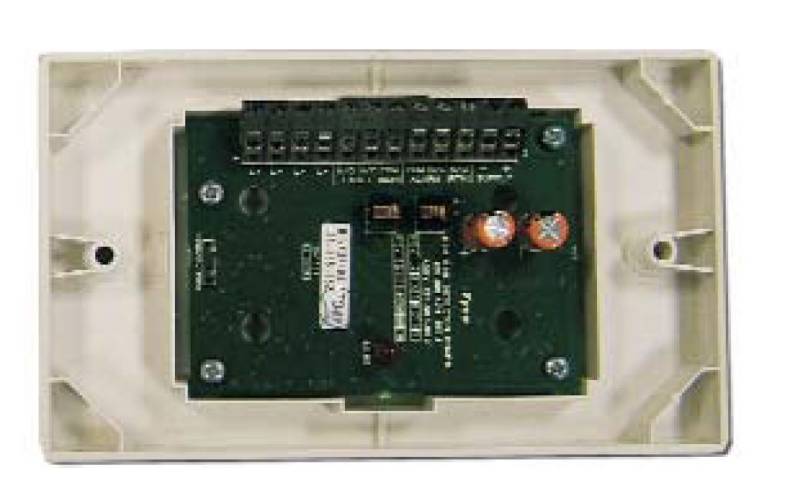

To meet all installation requirements, the TSM800 is supplied as a PCB. Depending on the application, it can be installed in a variety of housings or on a PCB chassis for 35 mm DIN rails (available separately).

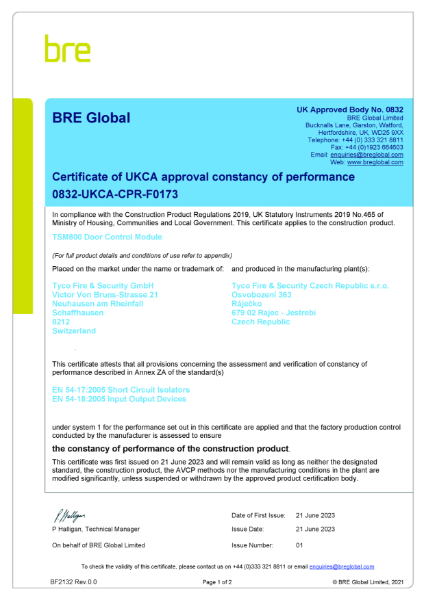

The TSM800 is approved under VdS EN 54-17 and EN 54-18

standards. The TSM800 also meets DIBt and DBI (Denmark)

guidelines. Integration into the fire alarm system means that the transition area of the fire compartments is permanently monitored and documented.
