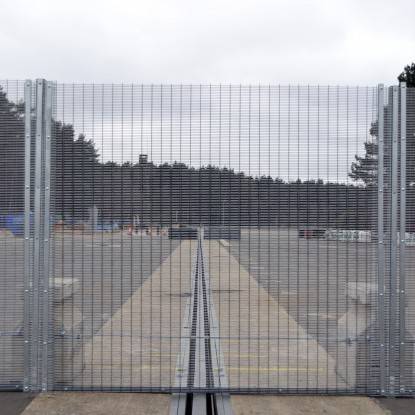

RDS Original PAS68 HVM Security Fencing
Verified by manufacturer 4 months ago
Rapid deploy temporary crash fence system, tested to PAS 68.
Application
Provides protection against external threats to:
- Temporary sporting events.
- Major event overlay.
- Construction sites.
- Utilities.
- Areas where space is an issue, or where fencing is difficult to deploy.
Can be used to create a permanent fence line in areas where below ground foundations are not possible.
Description
Rapid deploy temporary crash fence system, tested to PAS 68 for hostile vehicle mitigation (HVM). On a concrete base with cable system.
Features and benefits:
- Requires no pinning or digging into the ground.
- Allows for changes in direction and differing ground conditions - can be used in hard and soft ground standings.
- Single fence line with hostile vehicle mitigation PAS 68 enhancement.
- Rapidly deployable, and can be erected and removed within minutes.
- Minimal disruption during installation and removal.
- Highly secure compared to other temporary fencing systems.
- High visibility.
- CCTV cameras, Perimeter Intrusion Detection Systems (PIDs), topping enhancements and crash gates can be incorporated.
- Visually appealing.
- Mob and crowd tested for use in areas of mass population.
- Crash tested to stop 2.5 t and 7.5 t vehicles, meeting ratings of V2500(N1G)/48/90:4.7/0.0 and V7500(N2)/48/90:11.6/0.0 - consult manufacturer for information.
General information
Finish | Galvanized Powder coated |
Material | Metal |
Size | 3000 x 2900 mm Guidance for specification option: Max. |
CAWS | Q40/126 Open mesh steel panel security fencing Q40/27 Open mesh steel panel general purpose fencing Q40/30 Proprietary fencing Q40/430 Proprietary fencing |
Specification data
Posts | 70 x 70 mm rectangular hollow section (RHS) posts. |
Panel/ mesh type | HiSec 358 mesh. Guidance for specification option: 76.2 x 12.7 mm pattern with 4 mm vertical and horizontal wires. Others are available - consult manufacturer for information. |
Colour | Guidance for specification option: Insert RAL colour requirement. |
Accessories/ Other requirements | Not required. CCTV cameras. Perimeter Intrusion Detection Systems (PIDs). Topping enhancements. Manufacturer guidanceAdditional pedestrian access portals with PAS 68 rating and CCTV and PID systems also available, using carefully selected system technologies. Consult manufacturer and insert requirements. |
Height | 1800—3000 mm. Manufacturer guidanceConsult manufacturer and insert requirements. |
Gates | Manufacturer guidanceA range are available. Can be designed and manufactured with matching mesh. |
Post centres | 2750 mm. |
Base size (l x w x h) | 900 x 450 x 800 mm. Manufacturer guidanceConcrete base size. |
Panel fixings | Panels fixed to posts with full height 40 mm x 5 mm clamp bar, with through bolt fixings at 400 mm centres. |
Weight | 750 kg. Manufacturer guidanceConcrete base weight. |
Type | Required. Guidance for specification option: Crash fence gates. Not required. |
Size | Manufacturer guidanceConsult manufacturer and insert requirements. |
Applied finish | Galvanized and polyester powder-coated (PPC). Guidance for specification option: Insert RAL colour requirement. |
Standards | To BS1722, ISO 12944. |
Width | 2900 mm. |
