Optima Paladin Style Perimeter Fencing
Verified by manufacturer 4 months ago

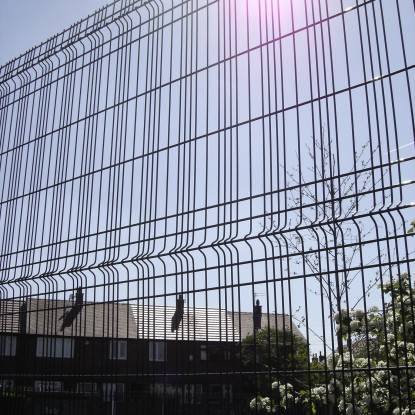

Variable mesh pattern fence.
Application
- Agricultural.
- Residential and commercial.
- Educational establishments.
- Emergency services and health.
- Civic and public sectors.
Description
Variable mesh pattern fence which combines security, appearance and value.
Features and benefits:
- Closed mesh makes the fence difficult to climb.
- V-shaped pressings along the length of the panel add lateral rigidity, and contribute to the styling of the system along with variable vertical wires.
- Fewer posts are required due to larger 3 m panel widths.
- Quick and easy to install.
- Uses clips rather than clamp bars to fix the panels to the posts’ rectangular washers to help reduce costs.
- High visibility.
General information
Finish | Galvanized Powder-coated |
Material | Metal |
Width | 3005 mm |
Height | 1750 mm 1950 mm 2350 mm |
CAWS | Q40/125 Open mesh steel panel general purpose fencing Q40/27 Open mesh steel panel general purpose fencing Q40/30 Proprietary fencing Q40/430 Proprietary fencing |
Specification data
Height | 1700 mm. 1900 mm. 2300 mm. Manufacturer guidanceOther heights are available upon request. |
Colour | Guidance for specification option: Insert RAL colour requirement. |
Fixing | Bolt down. In ground. On wall. |
System accessories | Not required. Pedestrian gates. Guidance for specification option: Available in single leaf, 1.2 m wide, or width to suit. Consult manufacturer and insert requirements. Vehicular gates. Guidance for specification option: Available in single and double leaf, 3.0 m wide, or width to suit. Consult manufacturer and insert requirements. |
Width | 3000 mm. |
Finish: | Galvanized and polyester powder-coated (PPC). |
Mesh | Variable mesh pattern. Manufacturer guidanceVariable, with vertical wires of 4 mm and horizontal wires of 6 mm. |
Post centres | 3025 mm. |
Panel fixings | Clips fix the panels to the posts. Guidance for specification option: Consult manufacturer for information. |
Standards | To BS1722, ISO 12944. |
Size | 60 x 60 mm. |
Fixing type | Clips. |
Fixings | Anti tamper security fixings. |
Width | 3000 mm. |
