MultiFence Temporary Security Fencing

Name: MultiFence Temporary Security Fencing
Brand: Zaun Limited
SKU: 3uMNWi698jKGsuYhnQaRBf

Verified by manufacturer 3 months ago

Zaun Limited

Temporary security fencing system.

Jump to:

Request BIM

+44 (0)1902 796699 Website

Application

Provides protection against external threats for sites that require temporary to long term protection, including:

Temporary events.
High profile areas.
Construction sites.
Utilities.
Car parks.

Description

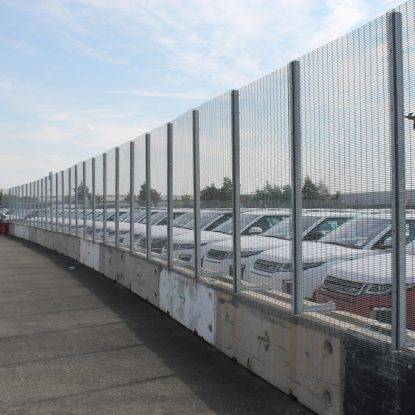

Temporary security fencing system, mounted onto concrete foundation blocks.

MultiFence can also combine two different fencing types with two different BS EN 1317, Part 2 vehicle restraint system blocks – consult manufacturer for information.

Features and benefits:

Mobile, durable solution.
No ground pinning or foundations are required.
Allows for changes in direction and ground standings using a unique post configuration - and the specialist bolting method also means that the fencing can follow a curve or go from a flat surface to an incline with ease.
Space-saving.
Post clamps are mounted into receiving fixings which are cast into the concrete block, creating a robust fence line.
PAS 68 enhancements can be incorporated.
Approved for use by the Highways Agency, and manufactured in accordance with BS EN 1317, Part 2.
CCTV cameras, Perimeter Intrusion Detection Systems (PIDs), and topping enhancements can be incorporated.
The Association of Chief Police Officers (ACPO) have declared MultiFence a Secured by Design approved product.
Welded mesh conforms to BS 1722, Part 14.
Concrete block weight: 2.5 t.

General information

Shape	Rectangle
Finish	Galvanized
Material	Steel
Size	2700 x 1600 mm Guidance for specification option: Max.

CAWS	Q40/125 Open mesh steel panel general-purpose fencing Q40/126 Open mesh steel panel security fencing Q40/27 Open mesh steel panel general-purpose fencing Q40/30 Proprietary fencing Q40/430 Proprietary fencing

Specification data

Classification data
Height	2000—2700 mm. Manufacturer guidance Consult manufacturer and insert requirements.
Colour	Guidance for specification option: Insert RAL colour requirement.
Panel termination	Ground level. Top of block.
Gates	50 x 50 mm rectangular hollow section (RHS) frame with Zaun HiSec mesh bolted onto the frame, slide latch, rubber bump stop, two gate posts. Guidance for specification option: Vehicular gates also include drop bolts.
Accessories/ Other requirements	Not required. CCTV cameras. PAS 68 enhancements. Perimeter Intrusion Detection Systems (PIDs). Topping enhancements. Pedestrian gates. Guidance for specification option: Available in single leaf, 1.2 m wide, or width to suit. Consult manufacturer and insert requirements. Vehicular gates. Guidance for specification option: Available in single and double leaf, 3.0 m wide, or width to suit. Consult manufacturer and insert requirements.
Post centres	1500 mm.
Posts	60 x 60 mm.
Base size (l x w x h)	3000 x 450 x 800 mm. Guidance for specification option: Concrete block. Weight: 2.5 t.
Standards	To BS EN 1317 Part 2, BS EN 10244-2.
Width	1600 mm.
Fixings	Anti tamper security fixings.
WireDiameter	4 mm / 4 mm. Guidance for specification option: Vertical x Horizontal.
Mesh size	12.7 x 76.2mm. Guidance for specification option: (358 style mesh) as standard. Manufacturer guidance Other mesh options such as ArmaWeave are also available upon request.
