HiSec PAS68 HVM Security Fencing
Verified by manufacturer 4 months ago
Fencing system with fully integrated hostile vehicle mitigation (HVM) to PAS 68.
Application
Designed to mitigate the ever-increasing security risk on sites of Critical National Infrastructure (CNI).
Suitable for use in:
- Emergency services and health.
- Industrial.
- Utilities.
- Temporary events.
- Infrastructure.
Description

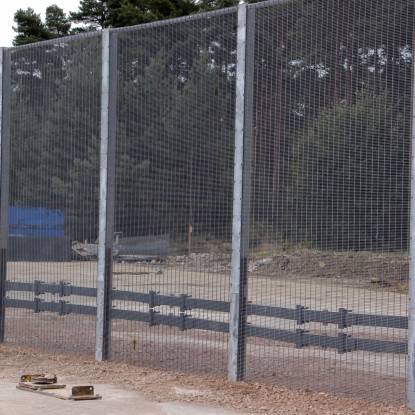

Fencing system with fully integrated hostile vehicle mitigation (HVM), successfully crash tested to PAS 68.
Features and benefits:
- Does not penetrate.
- Nullifies attacks by vehicles - can stop a 2.5 t vehicle travelling at 30 mph (58 km/h).
- Works as a stand-alone, high security fencing system.
- Easy installation with concrete footing.
- Provides a barrier to those hoping to gain unauthorized access.
- Features car park spring barriers, tested to BS 6399 and BS 1680.
- Simple and cost effective.
- Available with fence toppings and a range of integrated solutions.
- HVM crash tested to PAS 68:2010 V/2500 (N1G)/48/90:0/0.0.
- Secured by Design.
General information
Shape | Rectangle |
Finish | Galvanized Powder coated |
Material | Metal |
Size | 3600 x 2520 mm. Guidance for specification option: Max. |
CAWS | Q40/126 Open mesh steel panel security fencing Q40/27 Open mesh steel panel general purpose fencing Q40/30 Proprietary fencing Q40/430 Proprietary fencing |
Specification data
Panel/ mesh type | HiSec Super 6. HiSec Super 8. HiSec Super 10. |
Height | 2000—3600 mm. Manufacturer guidanceConsult manufacturer and insert requirements. |
Colour/ Finish | Galvanized and polyester powder-coated (PPC). Guidance for specification option: Insert RAL colour requirement. Galvanized only. |
Accessories/ Other requirements | Not required. Fence toppings. Guidance for specification option: Consult manufacturer and insert requirements. Gates. Guidance for specification option: Range available. Manufactured with matching HiSec mesh to the fence line. Consult manufacturer and insert requirements. |
Barriers | GME spring system. |
Posts | OMEGA posts. Guidance for specification option: 2470 mm centres. |
Standards | To BSI PAS 68:2010, BS1722, ISO 12944. |
Mesh size | 12.7 x 76.2 mm. Guidance for specification option: 358 style mesh. |
Width | 2520 mm. |
WireDiameter | 6 mm / 4 mm. Guidance for specification option: Vertical x Horizontal. |
Fixings | Anti tamper security fixings. |
Post foundations | 7000 x 1000 mm. Guidance for specification option: Diameter x Depth. |
