RDS Original Temporary Security Fencing
Verified by manufacturer 4 months ago
Rapid deploy temporary fencing system.
Application
Provides protection against external threats to:
- Temporary sporting events.
- Major event overlay.
- Construction sites.
- Utilities.
- Areas where space is an issue, or where fencing is difficult to deploy.
Can be used to create a permanent fence line in areas where below ground foundations are not possible.
Description

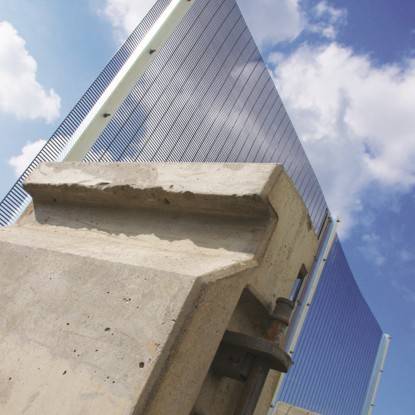

Above-ground, rapid deploy temporary fencing system on a concrete base.
Features and benefits:
- Requires no pinning or digging into the ground.
- Allows for changes in direction and differing ground conditions - can be used in hard and soft ground standings.
- Designed to use a single fence line to protect against crowd loads or unauthorized visitors.
- Can be both deployed and redeployed quickly to protect an area quickly and efficiently.
- Minimal disruption.
- High security compared to other temporary security fences.
- Offers significant protection, greatly reducing policing and security costs.
- PAS 68 enhancements are available - consult manufacturer for information.
- High visibility.
- CCTV cameras, Perimeter Intrusion Detection Systems (PIDs), topping enhancements and vehicle and pedestrian access solutions can be incorporated.
- A lightweight version is available - consult manufacturer for information.
General information
Finish | Galvanized Powder coated |
Material | Metal |
Size | 3000 x 2900 mm Guidance for specification option: Max. |
CAWS | Q40/125 Open mesh steel panel general purpose fencing Q40/126 Open mesh steel panel security fencing Q40/27 Open mesh steel panel general purpose fencing Q40/30 Proprietary fencing Q40/430 Proprietary fencing |
Specification data
Panel/ mesh type | HiSec 358 mesh. Guidance for specification option: 76.2 mm x 12.7 mm pattern. With 4 mm vertical and horizontal wires. Others are available - consult manufacturer for information. |
Height | 1800—3000 mm. Manufacturer guidanceConsult manufacturer and insert requirements. |
Colour | Guidance for specification option: Insert RAL colour requirement. |
Gates | 50 x 50 mm rectangular hollow section (RHS) frame with Zaun HiSec mesh bolted onto the frame, slide latch, rubber bump stop, two gate posts. Guidance for specification option: Vehicular gates also include drop bolts. |
Accessories/ Other requirements | Not required. CCTV cameras. PAS 68 enhancements. Perimeter Intrusion Detection Systems (PIDs). Topping enhancements. |
Finish: | Galvanized and polyester powder-coated (PPC). |
Posts | 70 x 70 mm rectangular hollow section (RHS) posts. |
Post centres | 2750 mm. |
Panel fixings | Panels fixed to posts with full height 40 mm x 5 mm clamp bar, with through bolt fixings at 400 mm centres. |
Base size (l x w x h) | 900 x 450 x 800 mm. Manufacturer guidanceConcrete base size. |
Weight | 750 kg. Manufacturer guidanceConcrete base weight. |
Width | 2900 mm. |
Standards | To BS EN 10244-2. |
Literature
High Security Temporary Fencing
Vehicle Gates & Pedestrian Gates & Barriers
