MultiFence PAS68 HVM Security Fencing

Name: MultiFence PAS68 HVM Security Fencing
Brand: Zaun Limited
SKU: vfF7HbU17jqLA3JWc3nxwt

Verified by manufacturer 5 months ago

Zaun Limited

Fence and barrier system for hostile vehicle mitigation (HVM) to PAS 68.

Jump to:

+44 (0)1902 796699 Website

Application

Suitable for permanent or temporary installations for preventing unauthorized access to:

Sites of National Critical Infrastructure (CNI).

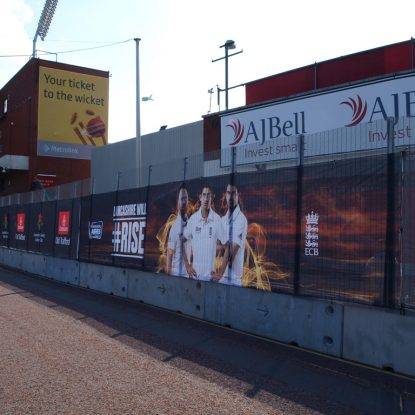

Sporting events.
High profile areas.
Construction sites.
Utilities.
Car parks.
Fields.
Can provide direction or protection to pedestrians and light vehicles in quarries, airports or other commercial or public areas.

Description

Fully integrated fence and barrier system for hostile vehicle mitigation (HVM). Combines the features of the standard MultiFence system with additional strength and PAS 68 testing.

Features and benefits:

No ground pinning or foundations are required; zero penetration into the ground.
Allows for changes in direction and differing ground conditions - can be used in hard and soft ground standings.
High security.
Designed to minimize the security risk on sites of critical importance, and to provide protection for the travelling public from roadside and site hazards, vehicle-borne attacks, ram-raiders etc.
Available with temporary vertical concrete blocks (TVCB's) with two levels of containment.
CCTV cameras, Perimeter Intrusion Detection Systems (PIDs), and topping enhancements can be incorporated to provide a complete, high security solution.
Provides a safe working area.
Effectively separates between opposing traffic streams in contraflows, by preventing 'crossover' accidents, whilst maximising available carriageway width.
Approved for use by the Highways Agency, and manufactured in accordance with BS EN 1317, Part 2.
Secured by Design.
HVM crash test rated to PAS 68 (PAS 68 2010: V/7500[N2]/64/90:5.0/0.0 and PAS 68 2010: V/7500[N2]/48/90:3.0/0.0 - consult manufacturer for information.

General information

Shape	Rectangle
Finish	Galvanized
Material	Steel
Size	1600 x 2700 mm Guidance for specification option: Max.

CAWS	Q40/126 Open mesh steel panel security fencing Q40/27 Open mesh steel panel general purpose fencing Q40/30 Proprietary fencing Q40/430 Proprietary fencing

Specification data

Height	2000—2700 mm. Manufacturer guidance Consult manufacturer and insert requirements.
Colour	Guidance for specification option: Insert RAL colour requirement.
Panel termination	Ground level. Top of block.
Concrete barrier type	80 block. Guidance for specification option: Performance class N1. Working width W3. 110 block. Guidance for specification option: Performance class N2. Working width W3. Manufacturer guidance Designed to deflect an errant vehicle away from local hazards within or immediately adjacent to the highway, which have the potential to cause danger.
Gates	HVM gates, supplied with matching mesh.
Accessories/ Other requirements	Not required. CCTV cameras. Perimeter Intrusion Detection Systems (PIDs). Topping enhancements. Pedestrian gates. Guidance for specification option: Available in single leaf, 1.2 m wide, or width to suit. Consult manufacturer and insert requirements. Vehicular gates. Guidance for specification option: Available in single and double leaf, 3.0 m wide, or width to suit. Consult manufacturer and insert requirements. Show more
Post centres	1500 mm.
Posts	60 x 60 mm.
Base size (l x w x h)	3000 x 450 x 800 mm. Manufacturer guidance Concrete base size.
Weight	2.5 t. Manufacturer guidance Concrete block weight.
Standards	To BS EN 10244-2, BS EN 1317.
Width	1600 mm.
Mesh size	12.7 x 76.2 mm. Guidance for specification option: (358 style mesh) as standard. Manufacturer guidance Other mesh options such as ArmaWeave are also available upon request.
WireDiameter	4 mm / 4 mm. Guidance for specification option: Vertical x Horizontal.
Fixings	Anti tamper security fixings.
