HiSec 358 Prison Fencing

Name: HiSec 358 Prison Fencing
Brand: Zaun Limited
SKU: rAJP4r8RTZHruPjShCiyd1

Verified by manufacturer 3 months ago

Zaun Limited

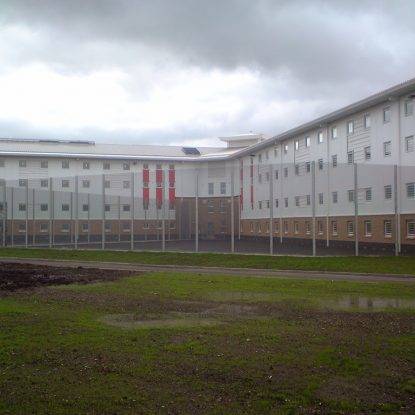

High security fencing system for use in prisons.

Jump to:

Request BIM

+44 (0)1902 796699 Website

Application

Suitable for use in high security areas such as:

Prisons.
Utilities.
Health and emergency services.

Description

High security fencing system for use in prisons.

Features and benefits:

Close mesh offers no climbing aids and ensures the fence is almost impossible to climb, repelling potential intruders.
Difficult to cut without power tools.
Supplied with prison specified round posts using full length clamp bars and fixing bolts.
All panels are fixed to the secure side of the posts.
Steel cladding privacy screens and double skin enhancements are available for additional protection.
Can be integrated with CCTV, Perimeter Intrusion Detection (PIDs), FST security toppings and barbed and razor coils.
Manufactured in accordance with BS 1722, Part 14, and BS EN 10244-2.
Tested and approved by the Ministry of Justice, and Secured by Design.

General information

Finish	Galvanized Powder coated
Material	Metal
Size	5207 x 2515 mm 4204 x 2515 mm 3600 x 2515 mm

CAWS	Q40/126 Open mesh steel panel security fencing Q40/27 Open mesh steel panel general-purpose fencing Q40/30 Proprietary fencing Q40/430 Proprietary fencing

Specification data

Classification data
Height	3600 mm. 4204 mm. 5207 mm.
Colour/ Finish	Galvanized and polyester powder-coated (PPC). Guidance for specification option: Insert RAL colour requirement. Galvanized only.
Fixing	Bolt down. In ground. On wall.
Panel termination	Buried. Concrete sill. Ground level.
Panel fixings	Shear nuts. Standard. Manufacturer guidance Panels fixed to posts with full height 40 x 8 mm clamp bar with twin bolt fixings at 152.4 mm centres. The full height clamp bars create a safe finish with the mesh ends behind the clamp bar.
Accessories/ Other requirements	Not required. Barbed and razor coils. CCTV. Double skin enhancements. Guidance for specification option: For additional protection. FST security toppings. Perimeter Intrusion Detection (PIDs). Printed panel. Privacy screens. Guidance for specification option: For additional privacy. Pedestrian gates. Guidance for specification option: Available in single leaf, 1.2 m wide, or width to suit. Consult manufacturer and insert requirements. Vehicular gates. Guidance for specification option: Available in single and double leaf, 3.8 m wide, or width to suit. Consult manufacturer and insert requirements.
Panels	HiSec 358. Guidance for specification option: Comprising of 12.7 x 76.2 mm mesh with 4 mm vertical wires at 76.2 mm centres and 4 mm horizontal wires at 12.7 mm centres.
Posts	Round prison specified posts. Guidance for specification option: Centres: 2440 mm.
Gates	Round tubular frame, Zaun HiSec mesh clad on inside the frame. Approved locking system and drop bolts.
Standards	To BS 1722, Part 14, BS EN 10244-2.
Width	2515 mm.
Mesh size	76.2 x 12.7 mm.
WireDiameter	4 mm / 4 mm. Guidance for specification option: Vertical x Horizontal.
Fixings	Through bolts. Washers & nuts
