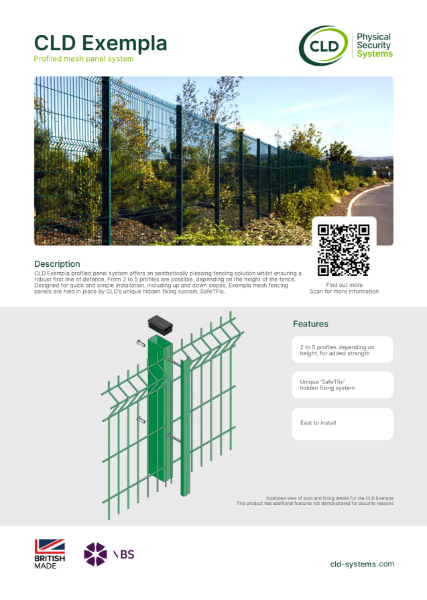

CLD Exempla - Panel Fence

Name: CLD Exempla - Panel Fence
Brand: CLD Physical Security Systems
SKU: fjzrouNhsLbT5BTQyhh9TG

Verified by manufacturer 4 months ago

630 mm high

CLD Physical Security Systems

Profiled mesh panel system.

Jump to:

BOS

+44 (0)1270 764751 Website

Application

Public buildings.

Schools.

Car parks.

Business parks and retail premises.

Description

CLD Exempla profiled panel system offers an aesthetically pleasing fencing solution whilst ensuring a robust first line of defense. Two to five profiles are possible, depending on the height of the fence. Designed for quick and simple installation, including up and down slopes, Exempla mesh fencing panels are held in place by CLD’s hidden fixing system, SafeTFix.

Features and benefits:

Easily fitted to steel, wood or concrete posts.
Wide range of height options.
RAL colours available.
Marine grade and metallics available.
SafeTFix hidden fixing system.

General information

Color	Green Other Guidance for specification option: Any RAL colour available.
Finish	Galvanized Powder-coated
Material	Steel
Shape	Other
Width	2505 mm
Height	630 mm 830 mm 1030 mm 1230 mm 1530 mm 1730 mm 1930 mm 2330 mm 2530 mm 2730 mm 3030 mm Show more
Warranty description	15 year Guidance for specification option: Minimum of 15 years against manufacturing defects.

Uniclass	Ss_25_14_61_51 Metal mesh panel fencing systemsPrimary
CAWS	Q40/126 Open mesh steel panel security fencing Q40/27 Open mesh steel panel general purpose fencing Q40/30 Proprietary fencing Q40/430 Proprietary fencing

Product range	Perimeter Security Systems

Specification data - Metal mesh panel fencing systems

System performance	Anti-intruder and security fencing performance.
Standard	To BS 1722-14:2017, BS EN ISO 141:2009, BS EN 13438:2013.
Posts	Carbon steel posts. Guidance for specification option: RHS. Manufacturer guidance Galvanised after manufacture and polyester powder-coated to match fencing.
Post foundations	Set posts in holes minimum 300 mm diameter x 800 mm deep.
Panels	Profiled mesh panel system. Guidance for specification option: Number of profiles varies according to height.
Site applied finishes	Polyester powder-coated to 60-80 µ. Polyester powder-coated to 160-200 µ. Manufacturer guidance With marine grade and metallics.

Height	630 mm.
Width	2505 mm.
Colour and finish	Green. RAL colour. Guidance for specification option: Consult manufacturer and insert requirement.
Mesh size	200 x 55 mm.
WireDiameter	5 mm.
Fixing	41 x 21 mm clamping channels and CLD SafeTFix hidden fixing system.
Projection	30 mm. Manufacturer guidance Top edge projection.
Size	60 x 40 mm minimum.
Post centres	2515 mm.
Installation	Bottom of panel approximately 40 mm above ground.
Profiles	Two profiles.
