CLD FenceSafe SR1 Security Fence - Temporary Fencing System

Name: CLD FenceSafe SR1 Security Fence - Temporary Fencing System
Brand: CLD Physical Security Systems
SKU: 4vcABeMj2dMmJqkfLDmPiK

Verified by manufacturer 2 days ago

CLD Physical Security Systems

Product certifications:

BRE Certificate
Certificate type

Temporary fencing system rated to LPS 1175 (SR1) Issue 7.

Jump to:

BOS

+44 (0)1270 764751 Website

Application

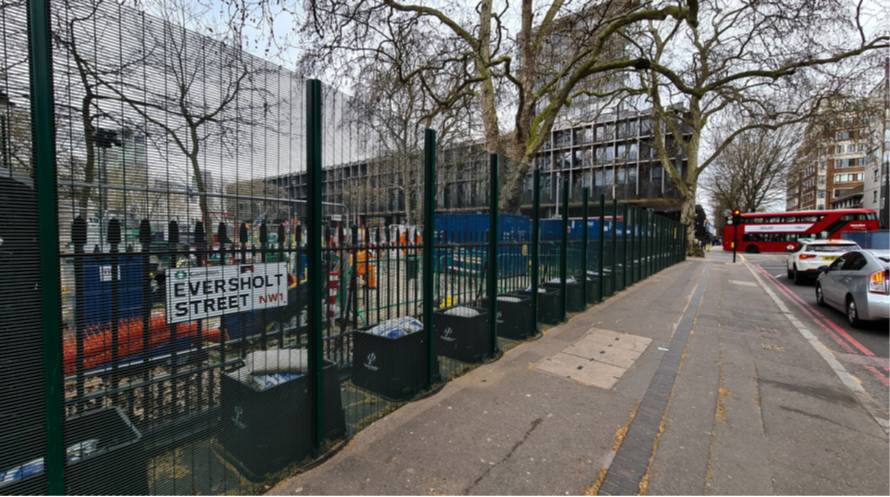

The FenceSafe Securus S1 system by CLD is a high-security, LPS 1175-rated temporary fencing solution, offering a unique combination of safety, security, and sustainability. Designed for rapid deployment without the need for permanent foundations, it features CLD’s innovative foundation-free cantilevered FenceSafe base paired with Securus 358 mesh panels—providing a guaranteed minimum delay of 60 seconds against attack.

Ideal for high-footfall and high-risk environments, FenceSafe Securus S1 is especially well-suited for:

Major events
Utility sites
Crowded public spaces
Airports

The system offers enhanced protection through overlapping panels, a full-length clamp bar with no external fixings, and a rear-fastened through-bolt—ensuring tamper-resistance and preventing unauthorised disassembly. Its Secured by Design accreditation further demonstrates its suitability for sensitive or regulated environments.

Both the FenceSafe base and Securus panels are fully reusable, making this system not only secure but also environmentally responsible and cost-effective for repeated or long-term temporary use.

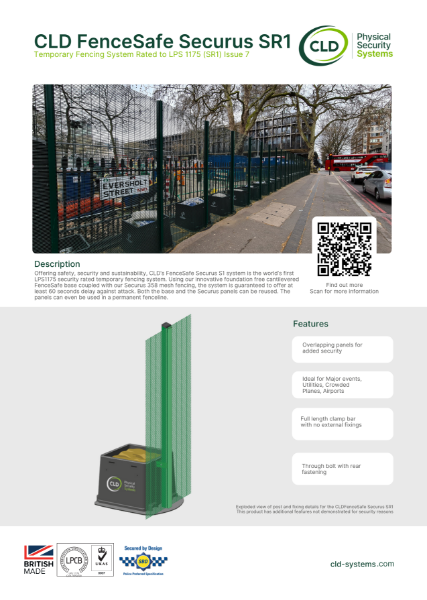

Description

CLD’s FenceSafe Securus S1 system is an LPS 1175 security rated temporary fencing system offering safety, security and sustainability. Using CLD's foundation free cantilevered FenceSafe base coupled with Securus 358 mesh fencing, the system is guaranteed to offer at least 60 seconds delay against attack. Both the base and the Securus panels can be reused.

Features and benefits:

Overlapping panels for added security.
Full length clamp bar with no external fixings.
Through bolt with rear fastening.
Secured by Design accredited.

General information

Color	Green Other Guidance for specification option: Any RAL colour available.
Finish	Powder-coated
Material	Steel
Shape	Other
Length	Bespoke
Width	2518 mm
Height	2440 mm
Warranty description	15 year Guidance for specification option: Minimum of 15 years against manufacturing defects.

Uniclass	Ss_25_14_61_51 Metal mesh panel fencing systemsPrimary
CAWS	Q40/126 Open mesh steel panel security fencing Q40/430 Proprietary fencing Q40/27 Open mesh steel panel general-purpose fencing

Specification data - Metal mesh panel fencing systems

Standard	To BS 1722-14.
Posts	60 x 60 mm RHS post. Guidance for specification option: Galvanized after manufacture and polyester powder-coated to match fencing. Post centres: 1220 mm +/- 9mm.
Post foundations	CLD FenceSafe Base. Guidance for specification option: Installed using CLD FenceSafe Base, with 4-way adjustable bracket and 200 kg of ballast. System to be designed in accordance with BS 6399-2 or BS EN 1991 for area of use.
Panels	Mesh and wire with profiles.
Fence topping	Barbed wire, cranked. Barbed wire, straight. Razor wire, cranked. Razor wire, straight.

Colour/ Finish	Polyester powder-coated, RAL. Guidance for specification option: Any RAL colour available, insert requirements.
Coating thickness (minimum)	60–80 microns. 160–200 microns. Guidance for specification option: Marine grade and metallics.
Fixings	41 x 21 mm clamping channel and CLD SafeTFix hidden fixing system.
Mesh size	76.2 x 12.5 mm.
WireDiameter	5 mm verticals and twin 6 mm horizontals.
SecurityRating	LPS 1175 A1 (SR1) Issue 7.
Base	Bottom of panel maximum 50 mm above ground.
Panel width	2500 mm. 3000 mm.
