CLD Dulok Lite Fencing System - Mesh Panel Fence

Name: CLD Dulok Lite Fencing System - Mesh Panel Fence
Brand: CLD Physical Security Systems
SKU: oHP9QmXmkP4oj9CQiuohZ4

Verified by manufacturer 27 days ago

CLD Physical Security Systems

Fence panel system.

Jump to:

BOS

+44 (0)1270 764751 Website

Application

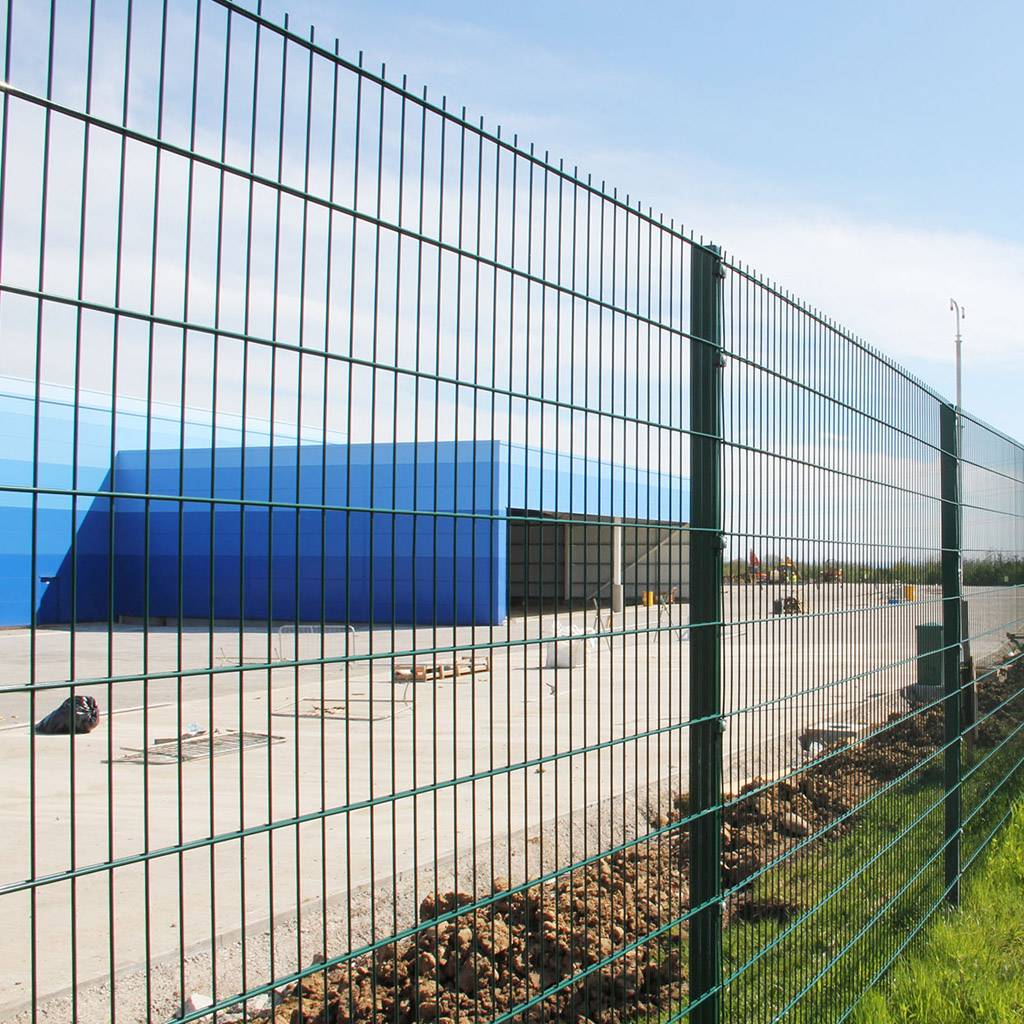

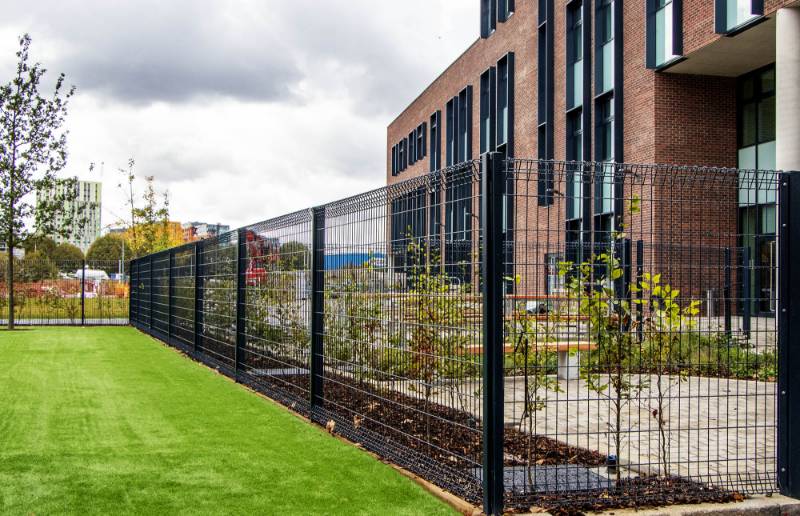

The CLD Dulok Lite fencing system is ideal for a wide range of environments where durability, security, and low maintenance are key priorities. Thanks to its robust twin-wire construction and tamper-proof fittings, Dulok Lite is well-suited for the following applications:

School Playgrounds: Provides a secure and long-lasting perimeter solution that resists vandalism and minimises maintenance, ensuring a safe environment for students.
Public Buildings: Offers a clean and professional appearance while enhancing security around civic facilities.
Schools: Ideal for educational campuses, combining strength and aesthetics to safeguard students, staff, and property.
Car Parks: With anti cut-through panels and secure fixings, it serves as a deterrent against theft and unauthorized access.
Business Parks and Retail Premises: Ensures perimeter protection without compromising on visual appeal, with options for RAL colours, including metallics and marine grades.

The system supports a wide range of mesh sizes and heights, with optional cranked or straight extensions for barbed and razor wire, making it highly adaptable to various site-specific requirements.

Description

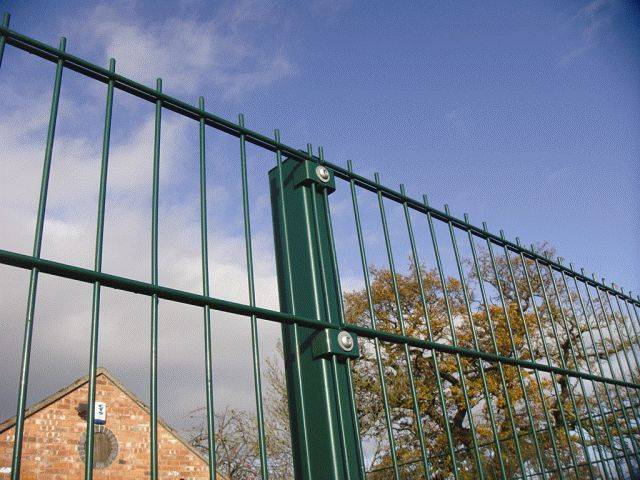

CLD Dulok Lite is a durable and low maintenance general purpose fence system. Manufactured from twin horizontal wires with a choice of 6 mm or 8 mm diameter, either side of vertical wires which are either 5 mm or 6 mm in diameter. Panels are fixed to steel posts using metal clips with tamper-proof angled returns which are secured in place with pin hex screws for added security.

Features and benefits:

Anti cut-through, double wire panels.
Wide range of height options.
Range of mesh sizes.
RAL colours available, including marine grades and metallics.
Cranked or straight extensions for barbed and razor wire available.

General information

Color	Green Other Guidance for specification option: Any RAL colour available.
Finish	Powder-coated Galvanized
Material	Steel
Shape	Rectangle
Width	2506 mm
Height	Bespoke Guidance for specification option: 630-3030 mm.
Warranty description	15 year Guidance for specification option: Minimum of 15 years against manufacturing defects.

Uniclass	Ss_25_14_61_51 Metal mesh panel fencing systemsPrimary
CAWS	Q40/125 Open mesh steel panel general-purpose fencing Q40/27 Open mesh steel panel general-purpose fencing Q40/30 Proprietary fencing Q40/430 Proprietary fencing

Product range	General Purpose Fence Systems

Specification data - Metal mesh panel fencing systems

Classification data
System performance	Anti-intruder and security fencing performance.
Standard	To BS 1722-14:2017, BS EN ISO 141:2009, BS EN 13438:2013.
Posts	Carbon steel posts. Guidance for specification option: RHS. Manufacturer guidance Galvanised after manufacture and polyester powder-coated to match fencing.
Post foundations	Set posts in holes minimum 300 mm diameter x 800 mm deep.
Panels	Mesh and wire, single vertical and double horizontal wires.
Fence topping	Cranked. Straight. Manufacturer guidance For barbed and razor wire.
Site applied finishes	Polyester powder-coated to 60-80 µ. Polyester powder-coated to 160-200 µ. Manufacturer guidance With marine grade and metallics.
Height	- Manufacturer guidance Available heights between 630–3030 mm. Insert requirements. Post dimensions 60 mm x 40 mm to 80 mm x 40 mm depending on height of panel.
Colour and finish	Green. Guidance for specification option: As standard. RAL colour. Guidance for specification option: Consult manufacturer and insert requirement.
Fixing	47 x 25 x 3 mm steel clips with M8 x 40 mm stainless steel pin hex dome-head security screws.
Width	2506 mm.
Mesh size	200 x 50 mm.
Projection	30 mm. Manufacturer guidance Top edge projection.
WireDiameter	6 mm verticals and twin 8 mm horizontals. 5 mm verticals and twin 6 mm horizontals.
Installation	Bottom of panel approximately 40 mm above ground.
Size	60 x 40 mm. 80 x 40 mm. Manufacturer guidance Depending on height of panel.
Post centres	2520 mm.
