CLD Dulok WaveTop Fencing System - Top Panel Fencing System

Name: CLD Dulok WaveTop Fencing System - Top Panel Fencing System
Brand: CLD Physical Security Systems
SKU: kPqDyVymnARjPZGXrLVtk8

Verified by manufacturer 2 days ago

CLD Physical Security Systems

Decorative double wire rebound panel fencing system.

Jump to:

BOS

+44 (0)1270 764751 Website

Application

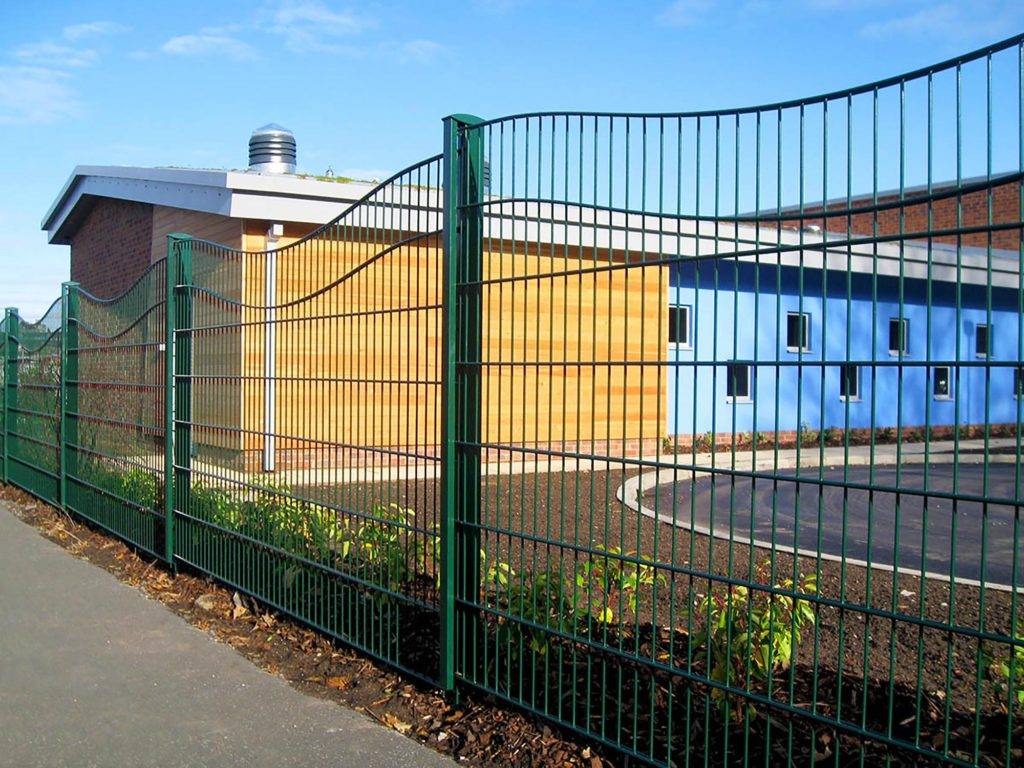

The CLD Dulok decorative mesh fencing system combines security, durability, and design appeal, making it an ideal choice for community spaces where safety and style go hand in hand. With its distinctive wave top effect, Dulok adds a decorative finish while maintaining the proven strength of a twin-wire system—featuring 8mm horizontal wires either side of a 6mm vertical wire (868 configuration).

This makes Dulok particularly well-suited to:

Playgrounds
Recreational grounds
Parks
Housing developments

Its smooth rolled top enhances safety, especially in environments where children are present, while the absence of visible fixings significantly reduces the risk of vandalism. Fast and simple to install, the Dulok system is also available in a full range of RAL colours, with bespoke panel options to suit the aesthetics of modern developments and public spaces.

Whether enhancing the look of a residential community or securing a public park, Dulok delivers reliable performance with an attractive finish.

Description

CLD Dulok is a highly versatile mesh fencing system, which offers an aesthetic and cost-effective solution where visibility is required. This decorative version of Dulok features an appealing wave top effect. The twin 8 mm horizontal wires either side of the 6 mm vertical wire (traditionally known as 868) slow down potential intruders whilst a smooth top makes it suitable for play areas and schools.

Features and benefits:

No visible fixings - minimal risk of vandalism.
Fast and simple installation.
Full range of RAL colours available.
Bespoke decorative panels available.

General information

Color	Green Other Guidance for specification option: Any RAL colour available.
Finish	Powder-coated Galvanized
Material	Steel
Shape	Rectangle
Width	2506 mm
Height	Bespoke Guidance for specification option: 630-2230 mm.
Warranty description	15 year Guidance for specification option: Minimum of 15 years against manufacturing defects.

Uniclass	Ss_25_14_61_51 Metal mesh panel fencing systemsPrimary
CAWS	Q40/125 Open mesh steel panel general-purpose fencing Q40/27 Open mesh steel panel general-purpose fencing Q40/30 Proprietary fencing Q40/430 Proprietary fencing

Product range	Decorative Fences

Specification data - Metal mesh panel fencing systems

System performance	Visual performance.
Standard	To BS 1722-14:2017, BS EN ISO 1461:2009, BS EN 13438:2013.
Posts	Carbon steel posts. Guidance for specification option: RHS. Manufacturer guidance Galvanised after manufacture and polyester powder-coated to match fencing.
Post foundations	Set posts in holes minimum 300 mm diameter x 800 mm deep.
Panels	Mesh and wire, single vertical and double horizontal wires.
Fence topping	Smooth.
Site applied finishes	Polyester powder-coated to 60-80 µ. Polyester powder-coated to 160-200 µ. Manufacturer guidance With marine grade and metallics.

Height	- Manufacturer guidance Available heights between 630–2230 mm. Insert requirements. Post dimensions minimum 60 mm x 40 mm depending on height of panel.
Colour/ Finish:	Green. Guidance for specification option: As standard. RAL colour. Guidance for specification option: Consult manufacturer and insert requirement.
Mesh size	200 x 50 mm.
Width	2506 mm.
WireDiameter	6 mm verticals and twin 8 mm horizontals (868).
Fixings	40 x 5 mm full length clamp bar. M8 x 40 mm stainless steel pin hex dome-head security screws. Guidance for specification option: Sheardrive™ if required instead of pin hex.
Installation	Bottom of panel approximately 40 mm above ground.
Size	60 x 40 mm. Guidance for specification option: Minimum dependent on height of panel.
Post centres	2520 mm.
