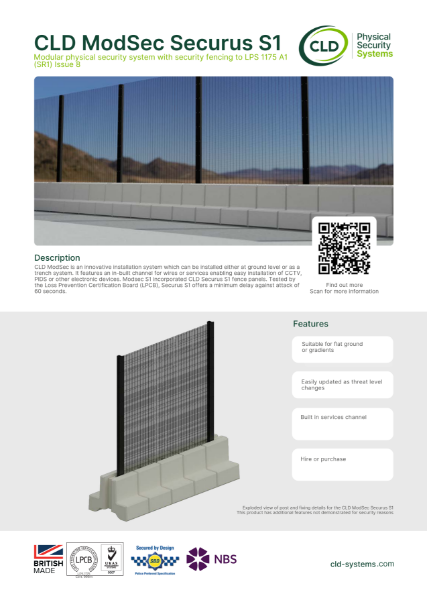

CLD Modsec Securus S1 - Security Fence

Name: CLD Modsec Securus S1 - Security Fence
Brand: CLD Physical Security Systems
SKU: eoAQjvQgHY5VUMiJWMEXqr

Verified by manufacturer 2 days ago

CLD Physical Security Systems

Product certifications:

BRE Certificate
Certificate type

Modular physical security system with security fencing.

Jump to:

BOS

+44 (0)1270 764751 Website

Application

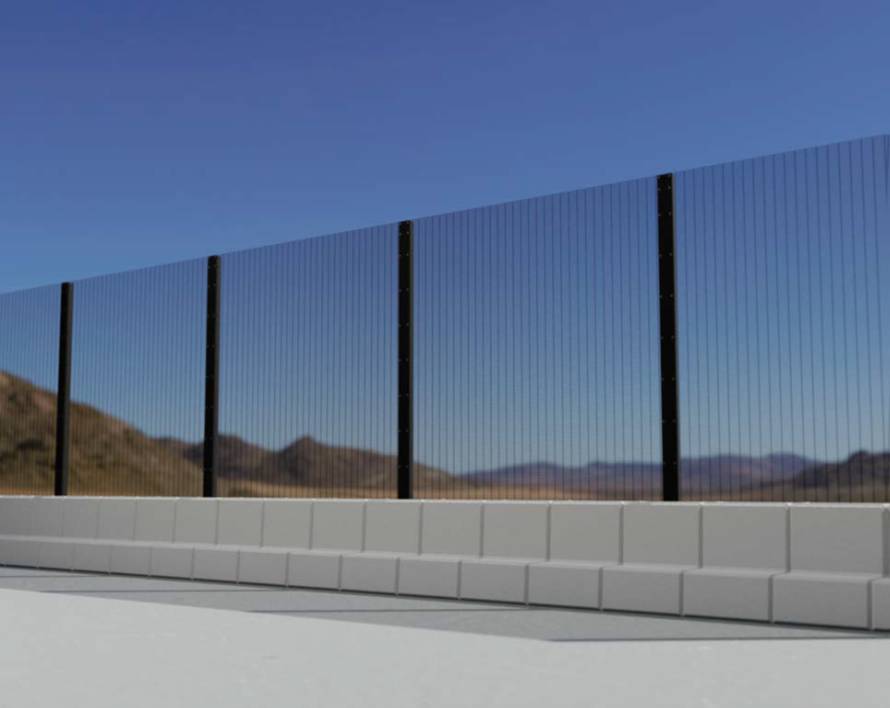

CLD ModSec is a versatile modular installation system designed for high-security applications requiring adaptability, ease of installation, and integrated technology support. Suitable for both flat ground and sloped gradients, ModSec can be installed directly at ground level or as a trench system through concrete bases—offering flexible deployment across a wide range of site conditions.

Incorporating CLD’s Securus S1 fence panels, which are tested and certified by the Loss Prevention Certification Board (LPCB), ModSec S1 delivers a minimum delay of 60 seconds against attack. This makes it an ideal solution for critical infrastructure, utilities, and high-risk sites where rapid response time is essential.

The system features a built-in services channel, simplifying the integration of electronic security devices such as CCTV, PIDS, and other monitoring systems. Its modular design also allows for easy upgrades, enabling the fence line to evolve in line with changing threat levels. Accredited by Secured by Design, ModSec provides trusted, proven protection without compromising on functionality or futureproofing.

Description

CLD ModSec is an installation system which can be installed either at ground level or as a trench system through concrete bases. It features an in-built channel for wires or services enabling easy installation of CCTV, PIDS or other electronic devices. Modsec S1 incorporates CLD Securus S1 fence panels. Tested by the Loss Prevention Certification Board (LPCB), Securus S1 offers a minimum delay against attack of 60 seconds.

Features and benefits:

Suitable for flat ground or gradients.
Easily updated as threat level changes.
Built in services channel.
Secured by Design accredited.

General information

Color	Green Other Guidance for specification option: Any RAL colour.
Finish	Powder-coated Galvanized
Material	Steel Concrete
Length	Bespoke
Width	2520 mm Guidance for specification option: Panel width.
Height	Bespoke Guidance for specification option: 1830–5000 mm.
Warranty description	15 year Guidance for specification option: Minimum of 15 years against manufacturing defects.

Uniclass	Ss_25_14_61_51 Metal mesh panel fencing systemsPrimary
CAWS	Q40/126 Open mesh steel panel security fencing Q40/430 Proprietary fencing Q40/27 Open mesh steel panel general-purpose fencing

Specification data - Metal mesh panel fencing systems

Standard	To BS 1722-14.
Posts	Special flanged posts. Guidance for specification option: Post dimensions: 80 x 60 mm. Corner posts: 80 x 80 mm. Galvanized after manufacture and polyester powder-coated to match fencing. Manufacturer guidance Post centres: 2520 mm +/- 9 mm.
Post foundations	ModSec foundation system. Guidance for specification option: Must be installed on suitable flat ground, ensuring blocks interlock and posts are installed in every fourth block. Set post into block with suitable compound depending on permanent or temporary installation.
Panels	Mesh and wire panel.
Fence topping	Barbed wire, cranked. Barbed wire, straight. Razor wire, cranked. Razor wire, straight.

Colour/ Finish	Polyester powder-coated, RAL. Guidance for specification option: Any RAL colour available, insert requirements.
Coating thickness (minimum)	60–80 microns. 160–200 microns. Guidance for specification option: Marine grade and metallics.
Fixings	120 x 6 mm full length clamp bar. M8 stainless steel cup square bolt (minimum 30 mm).
Mesh size	76.2 x 12.5 mm.
WireDiameter	4 mm.
SecurityRating	LPS 1175 A1 (SR1) Issue 8.
Base	Bottom of panel maximum 50 mm above ModSec concrete base.
