CLD Eclipse Lite Fencing System - Mesh Fencing
Verified by manufacturer 27 days ago
Economical profiled rigid mesh panel fencing system.
Application
Eclipse Lite is an ideal solution for projects requiring a practical yet visually appealing perimeter, offering a cost-effective fencing system without compromising on deterrent value. Its profiled panels and projecting spikes create a strong visual and physical barrier that helps to discourage unauthorised access, while enclosed fixings and matching clips maintain a clean, uniform appearance.
Perfect for applications such as:
- Car parks
- Retail environments
- Commercial parks
- Public buildings
- General perimeter demarcation
Designed for versatility and ease of installation, Eclipse Lite is well-suited for a wide range of public and private sector environments where security, durability, and aesthetics are essential.
Description
Eclipse Lite is a general purpose perimeter fencing system offering a cost-effective and attractive fenceline. With projecting spikes, Eclipse is difficult to climb over offering some deterrent against vandals and intruders.
Features and benefits:
- Cost effective.
- Profiled panels.
- Enclosed fixings.
- Matching clips.
General information
Color | Green Other Guidance for specification option: Any RAL colour available. |
Finish | Powder-coated Galvanized |
Material | Steel |
Shape | Rectangle |
Width | 3000 mm Guidance for specification option: Panel width up to 2.4 m high. |
Height | 1230 mm 1730 mm 1930 mm 2330 mm |
Warranty description | 15 year Guidance for specification option: Minimum of 15 years against manufacturing defects. |
Uniclass | |
CAWS | Q40/27 Open mesh steel panel general-purpose fencing Q40/30 Proprietary fencing Q40/430 Proprietary fencing Q40/125 Open mesh steel panel general-purpose fencing |
Specification data - Metal mesh panel fencing systems
Classification data | |
Standard | To BS 1722-14. |
Posts | SHS/ RHS posts. Guidance for specification option: Post dimensions: 60 x 60 mm up to 2330 mm. Manufacturer guidanceGalvanized after manufacture and polyester powder-coated to match fencing. |
Post foundations | Set posts in holes minimum 300 mm square or 400 mm diameter round x 800 mm deep. Guidance for specification option: The manufacturer advises that the contractor/ client is responsible for the foundation size suitable for the ground conditions and fence height. Base plated. Manufacturer guidancePost centres: 3010 mm. |
Panels | Mesh and wire with profiles. |
Fence topping | Barbed wire, cranked. Barbed wire, straight. Razor wire, cranked. Razor wire, straight. |
Colour/ Finish | Polyester powder-coated, RAL. Guidance for specification option: Any RAL colour available; insert requirements. |
Coating thickness (minimum) | 60–80 microns. 160–200 microns. Guidance for specification option: Marine grade and metallics. |
Fixings | 47 x 35 mm steel clips. |
Mesh size | 200 x 50 mm. |
WireDiameter | 4 mm. |
Base | Bottom of panel approximately 40 mm above ground. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Steel |
Literature

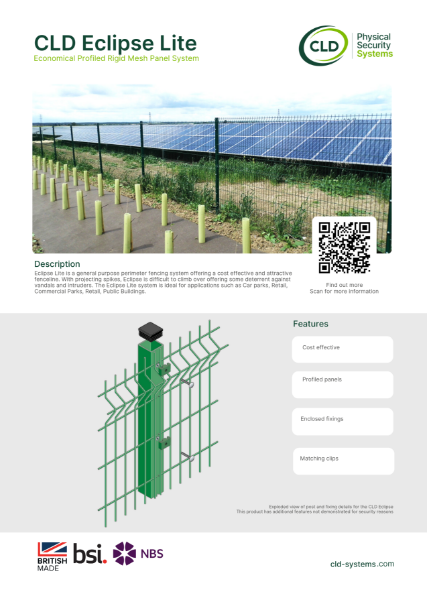

CLD Eclipse Lite
