CLD Dulok S1 - Perimeter Security Fence

Name: CLD Dulok S1 - Perimeter Security Fence
Brand: CLD Physical Security Systems
SKU: u3osun6hJLfuvtrpgTK19W

Verified by manufacturer 27 days ago

CLD Physical Security Systems

Product certifications:

BRE Certificate
Certificate type

Double wire panel fencing system.

Jump to:

BOS

+44 (0)1270 764751 Website

Application

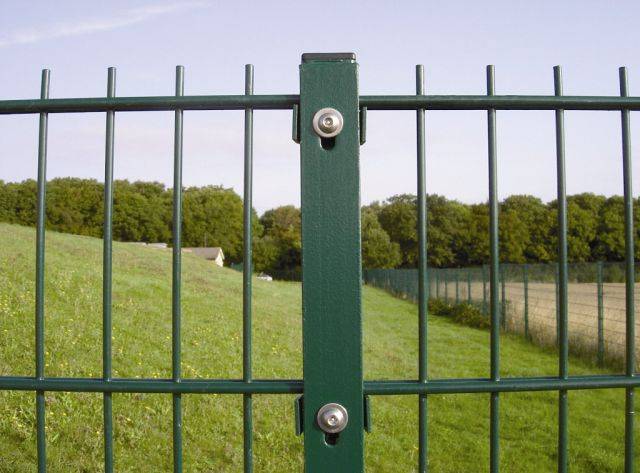

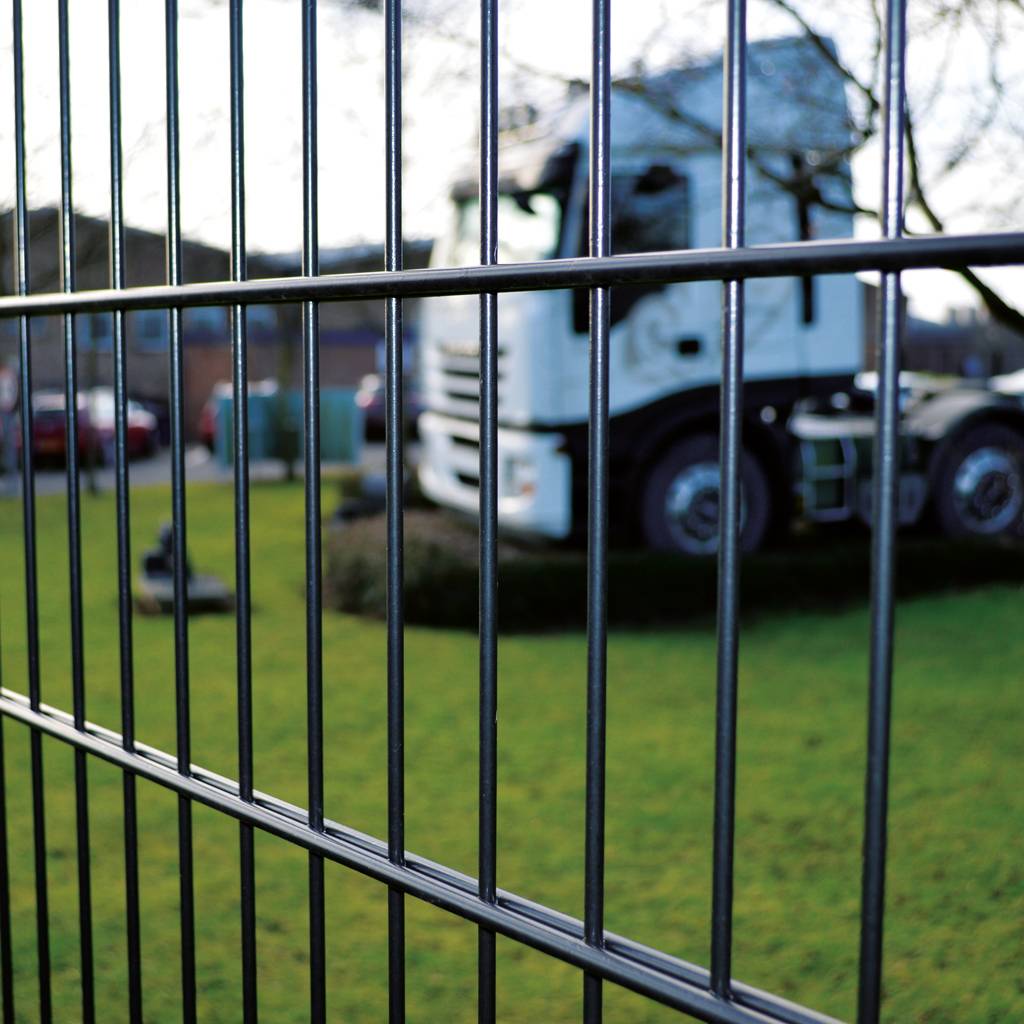

CLD Dulok S1 is a robust, high-security fencing solution built from LPS 1175 A1 certified twin-wire weld mesh panels. Engineered with heavy-duty 8mm horizontal wires welded either side of 6mm vertical wires, the system provides superior resistance to cutting and vandalism.

This system is ideally suited for securing a wide range of public and private environments where safety, durability, and compliance are paramount. Applications include public buildings and spaces, schools, multi-use games areas (MUGAs), leisure facilities, and industrial buildings. With 200 x 50mm mesh apertures and full-length clamp bars for added strength, Dulok S1 offers reliable perimeter protection without compromising visibility or design.

Available in a variety of height options and a full range of RAL colours, the system is also Secured by Design accredited and can be enhanced with optional security toppings for elevated threat levels.

Description

CLD Dulok S1 is a highly versatile mesh fencing system, where visibility is required. This security-rated version of Dulok features twin 8 mm horizontal wires either side of the 6 mm vertical wire (traditionally known as 868), slowing down potential intruders.

Features and benefits:

High security anti-cut-through, double wire panels.
Range of height options.
Secured by Design accredited system - LPS 1175 A1 (SR1) Issue 8.
RAL colours available.

General information

Color	Green Other Guidance for specification option: Any RAL colour available.
Finish	Powder-coated Galvanized
Material	Steel
Shape	Rectangle
Width	2508 mm
Height	Bespoke Guidance for specification option: 1830-5070 mm.
Warranty description	15 year Guidance for specification option: Minimum of 15 years against manufacturing defects.

Uniclass	Ss_25_14_61_51 Metal mesh panel fencing systemsPrimary
CAWS	Q40/126 Open mesh steel panel security fencing Q40/27 Open mesh steel panel general-purpose fencing Q40/430 Proprietary fencing

Product range	High Level Security Systems

Specification data - Metal mesh panel fencing systems

Classification data
System performance	Anti-intruder and security fencing performance.
Standard	To BS 1722-14:2017, BS EN ISO 1461:2009, BS EN 13438:2013.
Posts	Carbon steel posts. Guidance for specification option: RHS. Manufacturer guidance Galvanized after manufacture and polyester powder-coated to match fencing.
Post foundations	Set posts in holes minimum of 300 mm square or 400 mm diameter x 800 mm deep.
Panels	Mesh and wire, single vertical and double horizontal wires.
Fence topping	- Manufacturer guidance Available on request, contact manufacturer for details.
Site applied finishes	Polyester powder-coated to 60-80 µ. Polyester powder-coated to 160-200 µ. Manufacturer guidance With marine grade and metallics.
Height	- Manufacturer guidance Available heights between 1830–5070 mm. Insert requirements. Post dimensions minimum 60 mm x 40 mm depending on height of panel.
Width	2508 mm.
Colour/ Finish	Green. Guidance for specification option: As standard. RAL colour. Guidance for specification option: Consult manufacturer and insert requirement.
Mesh size	200 x 50 mm.
WireDiameter	6 mm verticals and twin 8 mm horizontals (868).
Fixings	40 x 5 mm full length clamp bar. M8 x 40 mm stainless steel Sheardrive bolt.
Projection	30 mm. Manufacturer guidance Top edge projection.
Size	60 x 40 mm. Guidance for specification option: Dependent on panel size.
Installation	Bottom of panel approximately 50 mm above ground.
SecurityRating	LPS 1175 A1 (SR1) Issue 8.
