Voice Alarm Projector Loudspeaker
Verified by manufacturer 4 months ago

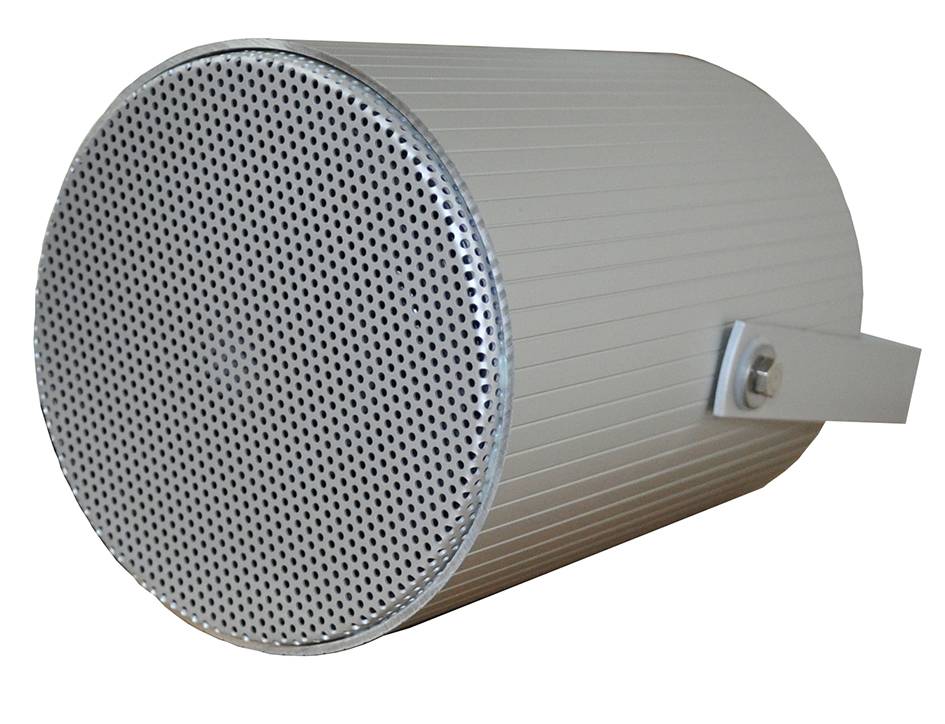

EN54-24 certified 15 Watt projector loudspeaker.
Application
Suitable for wall mounting.
Description
EN54-24 certified 15 Watt projector loudspeaker. The loudspeaker comes with a factory fitted capacitor and is therefore ready for DC line monitored systems.
Feature and benefits:
- Capacitor factory fitted.
- Loudspeaker for voice alarm systems.
General information
Color | Grey Guidance for specification option: RAL 9006. |
Finish | Anodized |
Material | Aluminium |
Shape | Circle |
Uniclass | |
CAWS | W53/115 Emergency voice communication systems |
Specification data - Voice alarm controllers
Standard | To BS 5839-8 and EN 54-24. |
Enclosure | |
Material | Aluminum. |
Finish | Anodized. |
Colour | Grey, RAL 9006.Guidance for specification option: Aluminium anodized. |
Environmental requirements | 70°C to -25°C.Manufacturer guidanceAmbient temperature. |
Mounting method | Wall.Guidance for specification option: Aluminium bracket. |
Power | 15 W. Manufacturer guidanceMax power. |
Environmental | Free-field. Manufacturer guidanceMeasurement environment. |
Terminal | Ceramic terminal. |
Total weight | 2.2 kg. |
Fixing | Aluminium bracket. |
ExpectedLife | 15 year. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
