Description

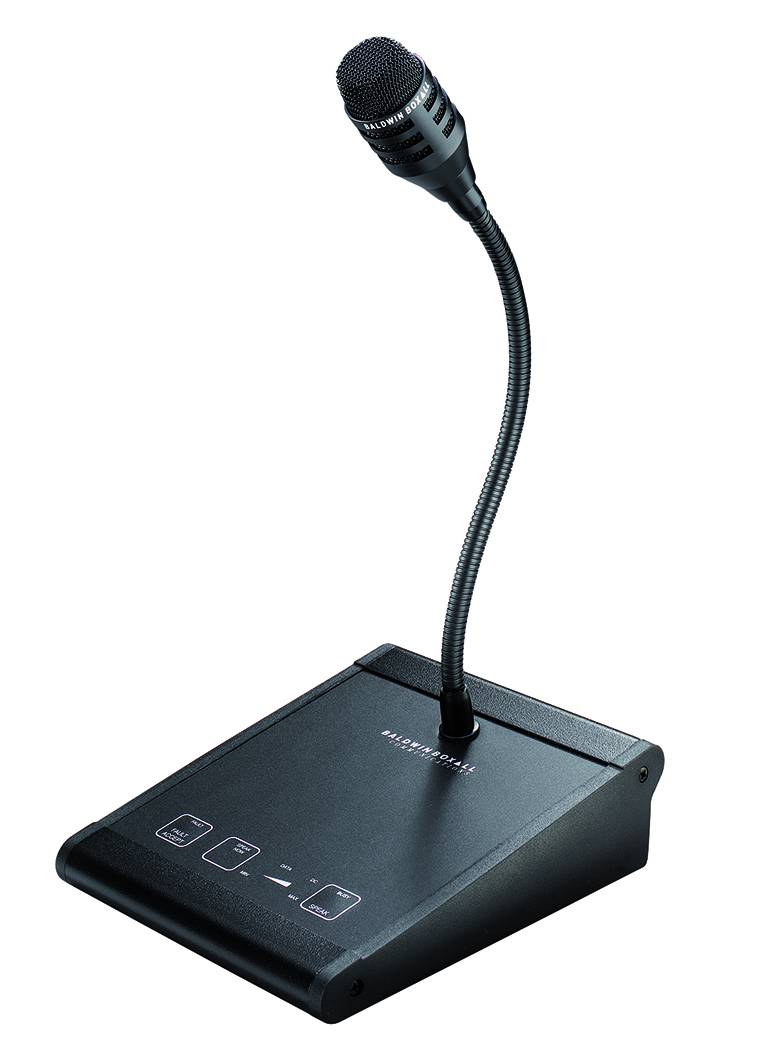

Single zone RS485 controlled intelligent paging microphone which can be operated as a parallel microphone - selectable via jumpers. A standard RJ45 (CAT5 network) cable is used to carry both audio and serial data. Microphones can be linked together (via wall sockets - product code BMS8) and connected to a single input at the control rack.


Features and benefits:

  • Power on and data indicators show the unit is functioning correctly.
  • Common fault indicator included.
  • Set to either monitored or unmonitored status.
  • Bar graph to show current speaking volume.
  • Data Serial Link: RS485 9600 BR.
  • CE certified.

General information

Color

Black

Finish

Powder-coated

Material

Steel

Plastic

Shape

Rectangle

Length

177 mm

Width

148 mm

Height

48 mm

Warranty description

Seven year

Uniclass

Pr_75_75_94_95 Voice alarm controllersPrimary

CAWS

W53/115 Emergency voice communication systems

Specification data - Voice alarm controllers

Standard

To BS EN 55103-1, 5.

Third party certification

CE marked.

Rated voltage

1.5 V.

Enclosure

-

Material

Steel and plastic.

Colour

Black.

Size:

177 x 148 x 48 mm.

Guidance for specification option:

(l x w x h).

FrequencyResponse

250—10 kHz.

Output

700 mV.

Manufacturer guidance

Normal Output Level.

Impedence

400 ohms.

Manufacturer guidance

Output Impedance.

Power requirement

26 mA standby (30 mA maximum).

Cut-outs

3.

Manufacturer guidance

Sub-membrane 16 mm Cutouts.

Cable

RJ45 (CAT5 network) cable.

Guidance for specification option:

Used to carry both audio and serial data.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
 -

1

Revit
 -

1
