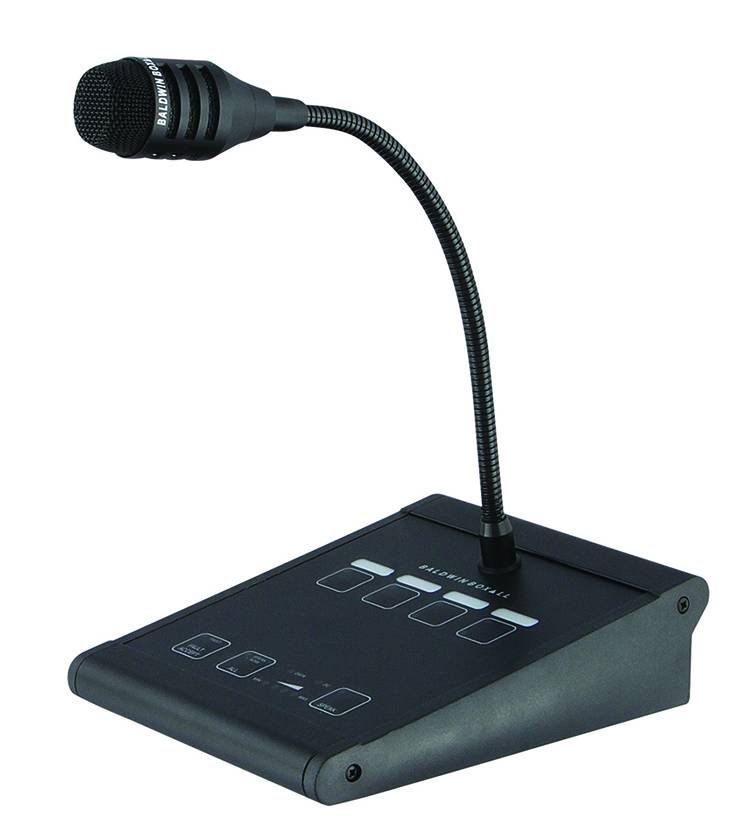

BDM400 Intelligent Paging Microphone (BDM404)

Name: BDM400 Intelligent Paging Microphone (BDM404)
Brand: Baldwin Boxall Communications Ltd
SKU: dNr15vvKEAt1tmhQVEBA7z

Verified by manufacturer 2 months ago

Baldwin Boxall Communications Ltd

Four zone intelligent paging microphone.

Jump to:

BOS

+44 (0)1892 664422 Website

Description

Four zone RS485 controlled intelligent paging microphone. A standard RJ45 (CAT5 network) cable is used to carry both audio and serial data. Microphones can be linked together (via wall sockets - product code BMS8) and connected to a single input at the control rack.

Features and benefits:

Power on and data indicators show the unit is functioning correctly.
Common fault indicator included.
Set to either monitored or unmonitored status.
Bar graph to show current speaking volume.
Data Serial Link: RS485 9600 BR.
CE certified.

General information

Color	Black
Material	Steel Plastic
Shape	Rectangle
Length	177 mm
Width	148 mm
Height	48 mm
Warranty description	Seven year

Uniclass	Pr_75_75_94_95 Voice alarm controllersPrimary
CAWS	W53/115 Emergency voice communication systems

SKU Code	BDM404

Specification data - Voice alarm controllers

Standard	To BS EN 55103-1, 5.
Rated voltage	1.5 V.
Enclosure	-
Material	Steel and plastic.
Colour	Black.

Size:	177 x 148 x 48 mm. Guidance for specification option: (l x w x h).
FrequencyResponse	250—10 kHz.
Output	700 mV. Manufacturer guidance Normal Output Level.
Impedence	400 ohms. Manufacturer guidance Output Impedance.
Power requirement	35 mA standby (70 mA maximum).
Cut-outs	3. Manufacturer guidance Sub-membrane 16 mm cutouts.
Cable	RJ45 (CAT5 network) cable. Guidance for specification option: Used to carry both audio and serial data.
