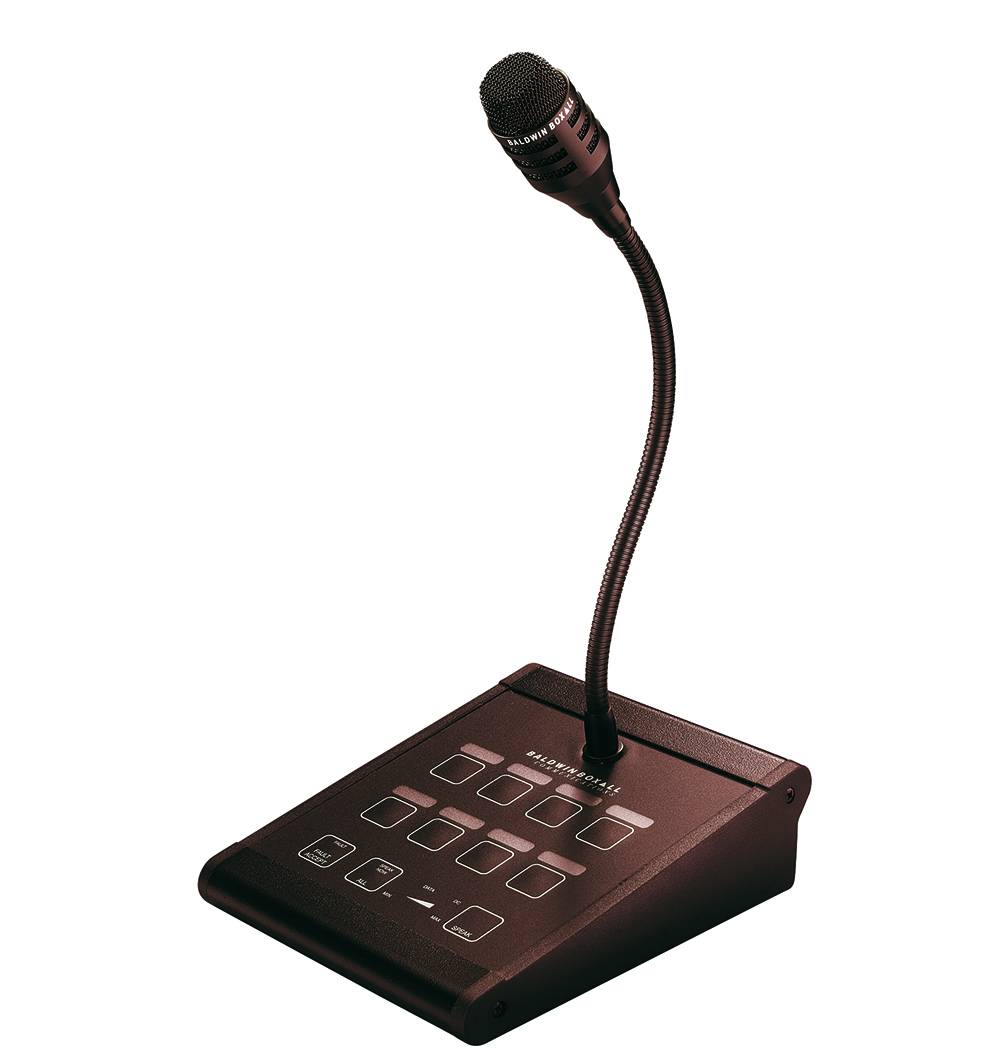

BDM400 Intelligent Paging Microphone (BDM408)
Verified by manufacturer 4 months ago
Eight zone intelligent paging microphone.
Description
Eight zone RS485 controlled intelligent paging microphone. A standard RJ45 (CAT5 network) cable is used to carry both audio and serial data. Microphones can be linked together (via wall sockets - product code BMS8) and connected to a single input at the control rack.
Features and benefits:
- Power on and data indicators show the unit is functioning correctly.
- Common fault indicator included.
- Set to either monitored or unmonitored status.
- Bar graph to show current speaking volume.
- Data Serial Link: RS485 9600 BR.
- CE certified.
General information
Color | Black |
Material | Steel Plastic |
Shape | Rectangle |
Length | 177 mm |
Width | 148 mm |
Height | 48 mm |
Warranty description | Seven year |
Uniclass | |
CAWS | W53/115 Emergency voice communication systems |
Specification data - Voice alarm controllers
Standard | To BS EN 55103-1, 5. |
Third party certification | CE marked. |
Rated voltage | 1.5 V. |
Enclosure | |
Material | Steel and plastic. |
Colour | Black. |
Size: | 177 x 148 x 48 mm. Guidance for specification option: (l x w x h). |
FrequencyResponse | 250—10 kHz. |
Output | 700 mV. Manufacturer guidanceNormal Output Level. |
Impedence | 400 ohms. Manufacturer guidanceOutput Impedance. |
Power requirement | 35 mA standby (70 mA maximum). |
Cut-outs | 3. Manufacturer guidanceSub-membrane 16 mm cutouts. |
Cable | RJ45 (CAT5 network) cable. Guidance for specification option: Used to carry both audio and serial data. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
