BVRDCI Control Interface For Zonal Access Switching

Verified by manufacturer 10 days ago

Baldwin Boxall Communications Ltd Third party certifications:
  • Made in Britain

    Made in Britain

    Certificate type

Control interface for zonal access switching.

Jump to:
BOS
+44 (0)1892 664422 Website

Application

Control interface for universal zonal access switching.

Description

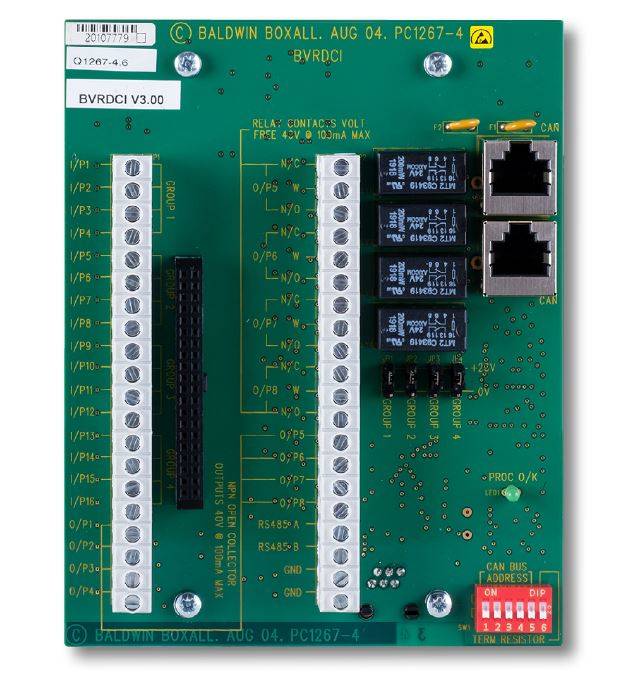

The BVRDCI canbus module is a control interface for universal zonal access switching.


Features and benefits:

  • DIN rail mounted module.
  • 16 x analogue voltage sensing inputs for monitored and unmonitored input access, ambient noise sensors, remote volume controls, etc.
  • 4 x volt free changeover relay contacts for busy, etc.
  • 4 x NPN open collector outputs 40 V at 100 mA.
  • 1 x RS485 half-duplex port for communicating to control microphones, fire detection systems, network control, fault reporting.
  • Dimensions (H x W x D): 139 x 111 x 25 mm.

General information

Color

Green

Finish

Guidance for specification option:

Zintec.

Material

Zintec steel

Shape

Square

Length

139 mm

Width

111 mm

Height

25 mm

Warranty description

Seven year

Uniclass

Pr_75_75_94_95 Voice alarm controllersPrimary

CAWS

W53/115 Emergency voice communication systems

Specification data - Voice alarm controllers

Standard

To BS EN 54-16 and BS 5839: part 8.

Connection ports

-

Audio inputs

16 x analogue voltage sensing inputs.

Guidance for specification option:

For monitored and unmonitored input access, ambient noise sensors, remote volume controls, etc.

Control inputs

4.

Guidance for specification option:

4 x volt free changeover relay contacts for busy, etc.

Control outputs

4.

Guidance for specification option:

4 x NPN open collector outputs 40V @ 100mA.

Communications

1 x RS485.

Guidance for specification option:

1 x RS485 half-duplex port for communicating to control microphones, fire detection systems, network control, fault reporting.

Enclosure

-

Material

Zintec steel.

Finish

Zintec.

Colour

Grey.

Ingress protection (minimum)

IP30.

Guidance for specification option:

As a system.

Mounting method

DIN rail.

Height

25 mm.

Width

111 mm.

Length

139 mm.

Life expectancy

15 year.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

Made in Britain

Made in Britain

Made in Britain membership

Similar products from Baldwin Boxall Communications Ltd

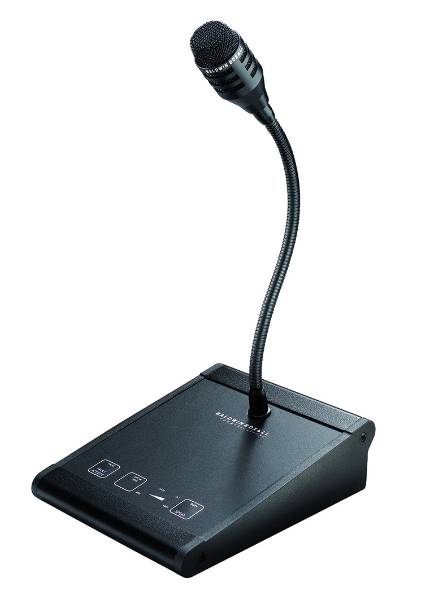

BDM400 Intelligent Paging Microphone (BDM401)

BDM400 Intelligent Paging Microphone (BDM401)

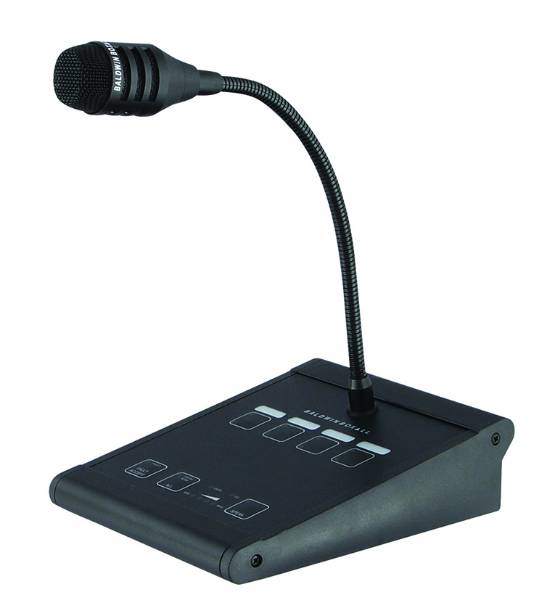

BDM400 Intelligent Paging Microphone (BDM404)

BDM400 Intelligent Paging Microphone (BDM404)

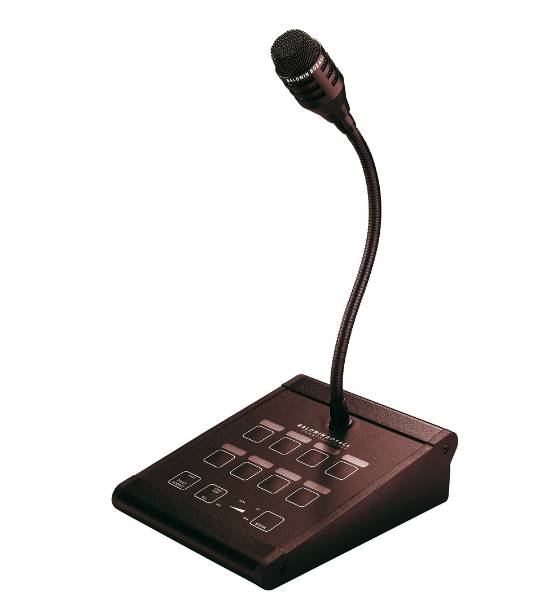

BDM400 Intelligent Paging Microphone (BDM408)

BDM400 Intelligent Paging Microphone (BDM408)

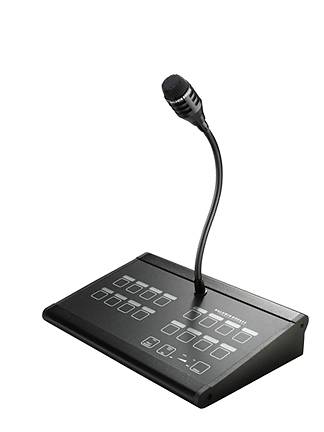

BDM400 Intelligent Paging Microphone (BDM416)

BDM400 Intelligent Paging Microphone (BDM416)

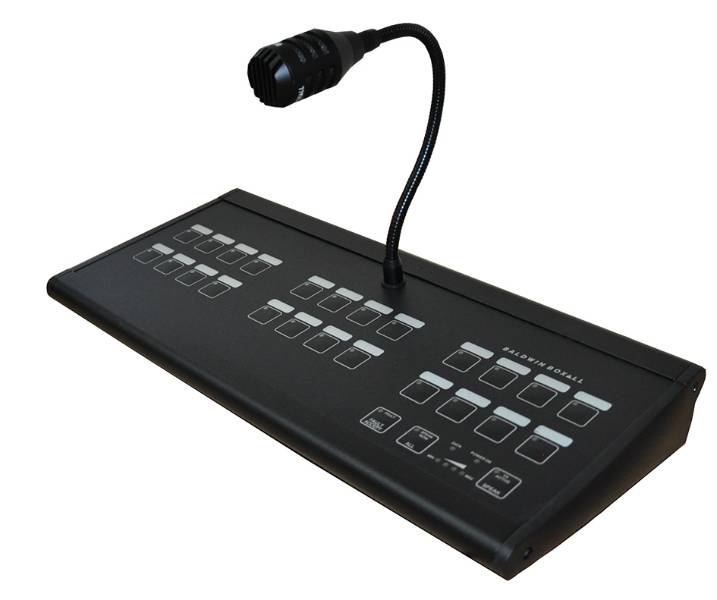

BDM400 Intelligent Paging Microphone (BDM424)

BDM400 Intelligent Paging Microphone (BDM424)

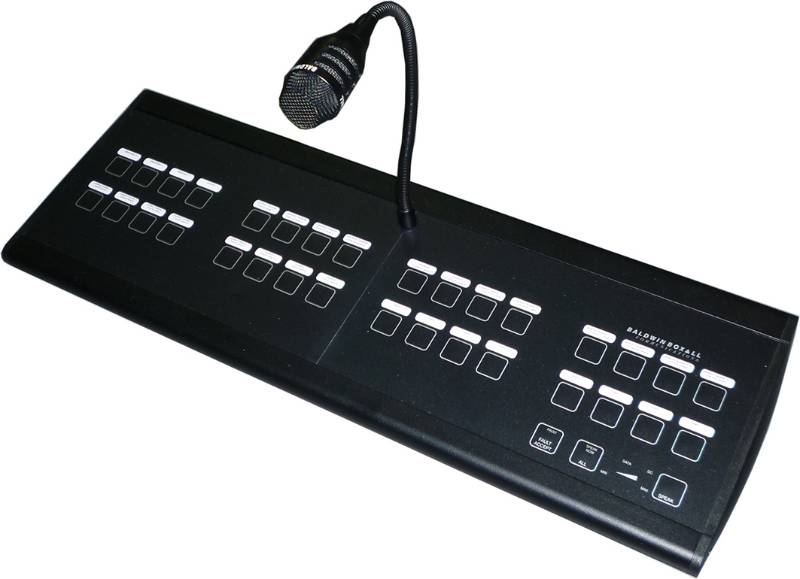

BDM400 Intelligent Paging Microphone (BDM432)

BDM400 Intelligent Paging Microphone (BDM432)

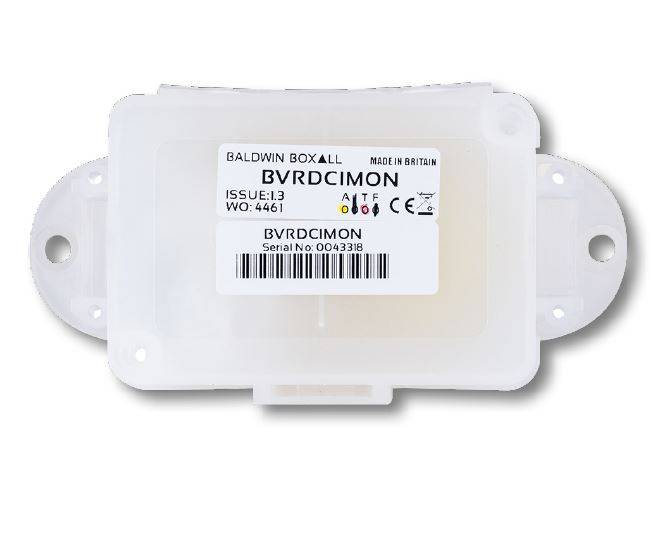

BVRDCIMON CIE Monitor Device

BVRDCIMON CIE Monitor Device

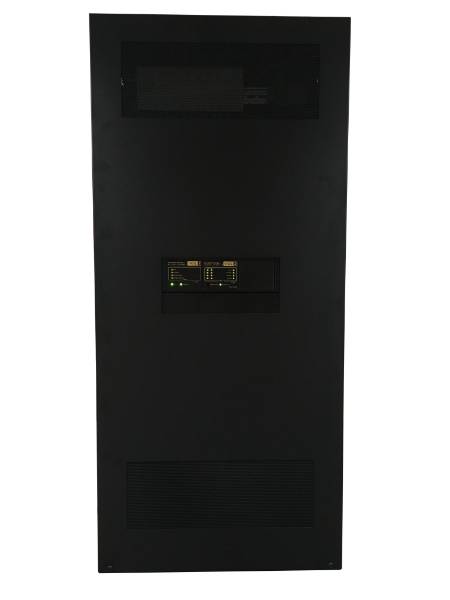

Eclipse5

Eclipse5

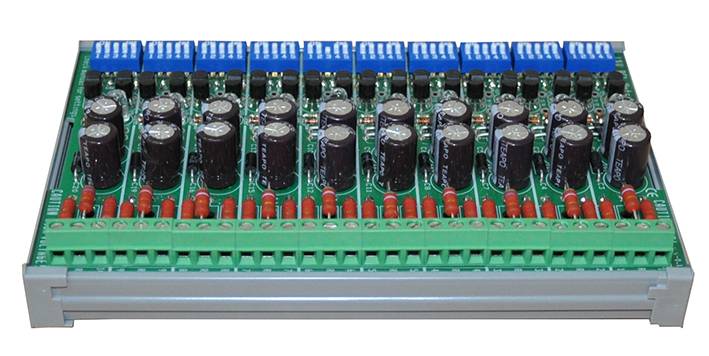

End of Line Monitoring – BEL10

End of Line Monitoring – BEL10

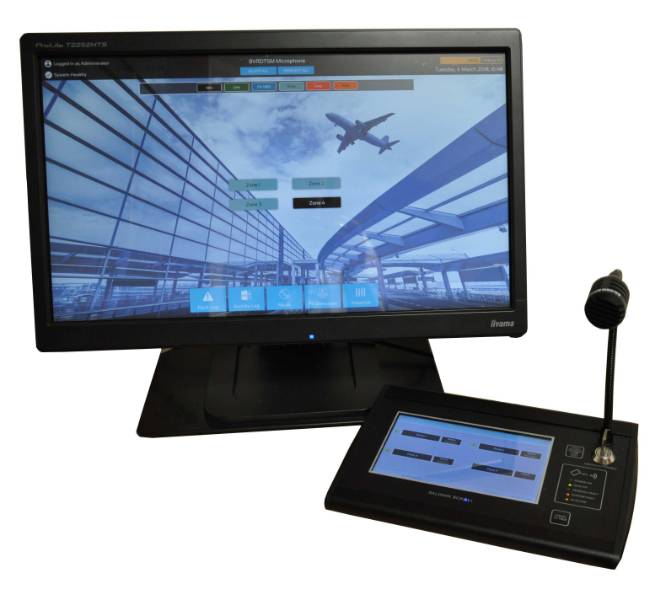

Large Format Touchscreen
