End of Line Monitoring – BEL10
Verified by manufacturer 4 months ago

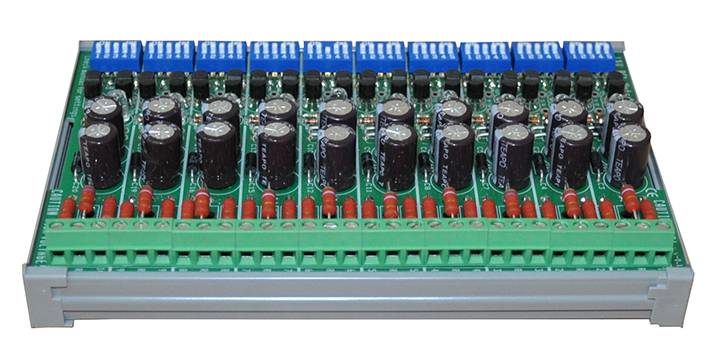

Din rail mounted device for monitoring 10 voice alarm loudspeaker lines.
Application
Suitable for use with a VIGIL voice alarm system.
Description
DIN rail mounted, the BEL10 is the equivalent of ten BEL1 units. Loudspeaker lines terminate at the BEL10. Monitors the critical signal path of speaker lines for open, short circuit, and earth faults. Typically, the BEL10 is used to ease the upgrading of an existing voice alarm system, where loudspeaker lines are wired in a loop back to the rack.
Features and benefits:
- End of line voice alarm monitoring system.
General information
Color | White |
Finish | Powder-coated |
Material | Steel Guidance for specification option: Various. |
Shape | Rectangle |
Length | 162 mm |
Width | 105 mm |
Height | 45 mm |
Warranty description | Seven year |
Uniclass | |
CAWS | W53/115 Emergency voice communication systems |
Specification data - Voice alarm controllers
Standard | To BS EN 54. |
Rated voltage | 100 V a.c. |
Connection ports | |
Audio inputs | 10. |
Audio outputs | 10. |
Controls | |
Display type | Red LED. |
Enclosure | |
Material | Guidance for specification option: Various. |
Mounting method | DIN rail. |
Size: | 162 x 105 x 45 mm. Guidance for specification option: (l x w x h). |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Steel Guidance for specification option: Various. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
