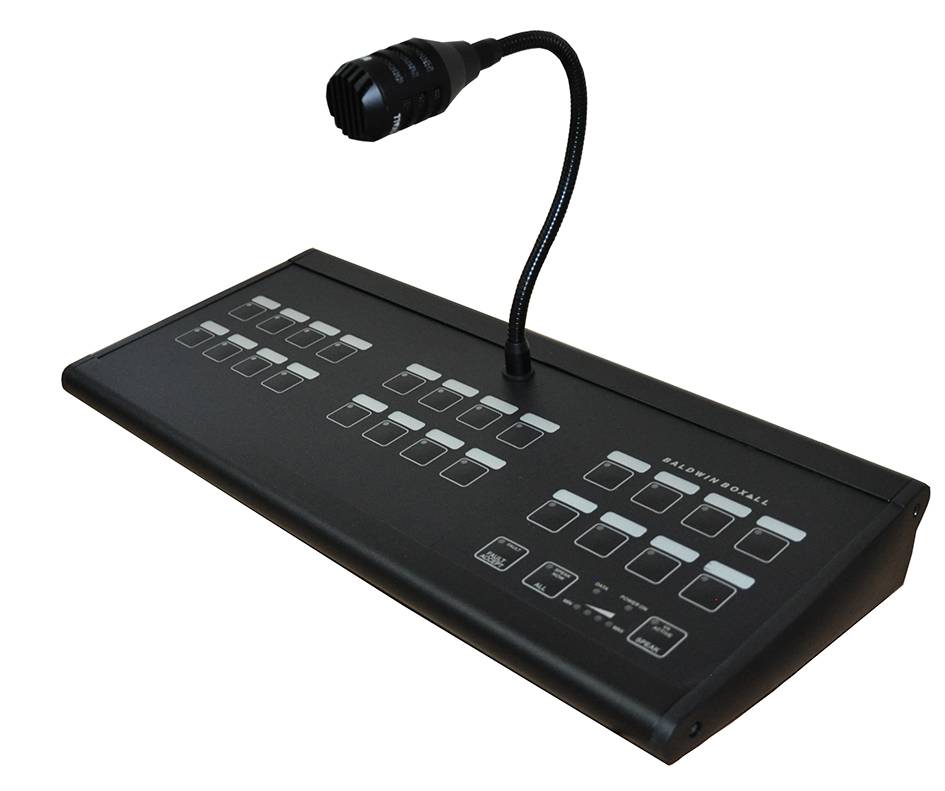

BDM400 Intelligent Paging Microphone (BDM424)
Verified by manufacturer 4 months ago
Twenty four zone intelligent zone paging microphone.
Description
Twenty-four zone RS485 controlled intelligent zone paging microphone. A standard RJ45 (CAT5 network) cable is used to carry both audio and serial data. Microphones can be linked together (via wall sockets - product code BMS8) and connected to a single input at the control rack.
Features and benefits:
- Power on and data indicators show the unit is functioning correctly.
- Common fault indicator included.
- Set to either monitored or unmonitored status.
- Bar graph to show current speaking volume.
- Data Serial Link: RS485 9600 BR.
- CE certified.
General information
Color | Black |
Material | Steel Plastic |
Shape | Rectangle |
Length | 177 mm |
Width | 398 mm |
Height | 48 mm |
Warranty description | Seven year |
Uniclass | |
CAWS | W53/115 Emergency voice communication systems |
Specification data - Voice alarm controllers
Standard | To BS EN 55103-1, 5. |
Third party certification | CE marked. |
Rated voltage | 1.5 V. |
Enclosure | |
Material | Steel.Plastic. |
Colour | Black. |
Size: | 177 x 398 x 48 mm. Guidance for specification option: (l x w x h). |
FrequencyResponse | 250—10 kHz. |
Output | 700 mV. Manufacturer guidanceNormal output level. |
Impedence | 400 ohms. Manufacturer guidanceOutput impedance. |
Power requirement | 52 mA standby (150 mA maximum). |
Cut-outs | 9. Manufacturer guidanceSub-membrane 16 mm cutouts. |
Cable | RJ45 (CAT5 network) cable. Guidance for specification option: Used to carry both audio and serial data. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
