Voice Alarm Horn Loudspeaker
Verified by manufacturer 4 months ago

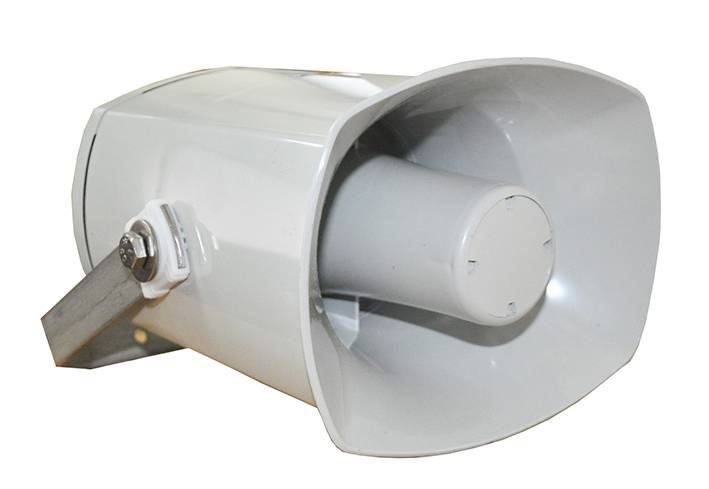

EN54-24 certified 15 Watt horn loudspeaker.
Application
Suitable for wall mounting.
Description
EN54-24 certified 15 Watt horn loudspeaker. The loudspeaker comes with a factory fitted capacitor and is therefore ready for DC line monitored systems.
Features and benefits:
- Capacitor factory fitted.
- Loudspeaker for voice alarm systems.
General information
Color | Grey |
Shape | Rectangle |
Warranty description | Five year |
Uniclass | |
CAWS | W53/115 Emergency voice communication systems |
Specification data - Voice alarm controllers
Standard | To BS 5839-8 and EN 54-24. |
Power amplifiers | |
Rated power output | 15 W. |
Enclosure | |
Material | Ronfalin. |
Colour | Grey, RAL 7035. |
Ingress protection (minimum) | 33C / 67. |
Environmental requirements | 70°C to -25°C.Guidance for specification option: Ambient temperature. |
Mounting method | Wall bracket. |
Size: | 207 x 186 x 144 mm. Guidance for specification option: (l x w x h). |
Terminal | Screw terminals. |
Weight | 1.8 kg. |
Environmental | Free-field. Manufacturer guidanceMeasurement environment. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
