Verified by manufacturer 5 months ago

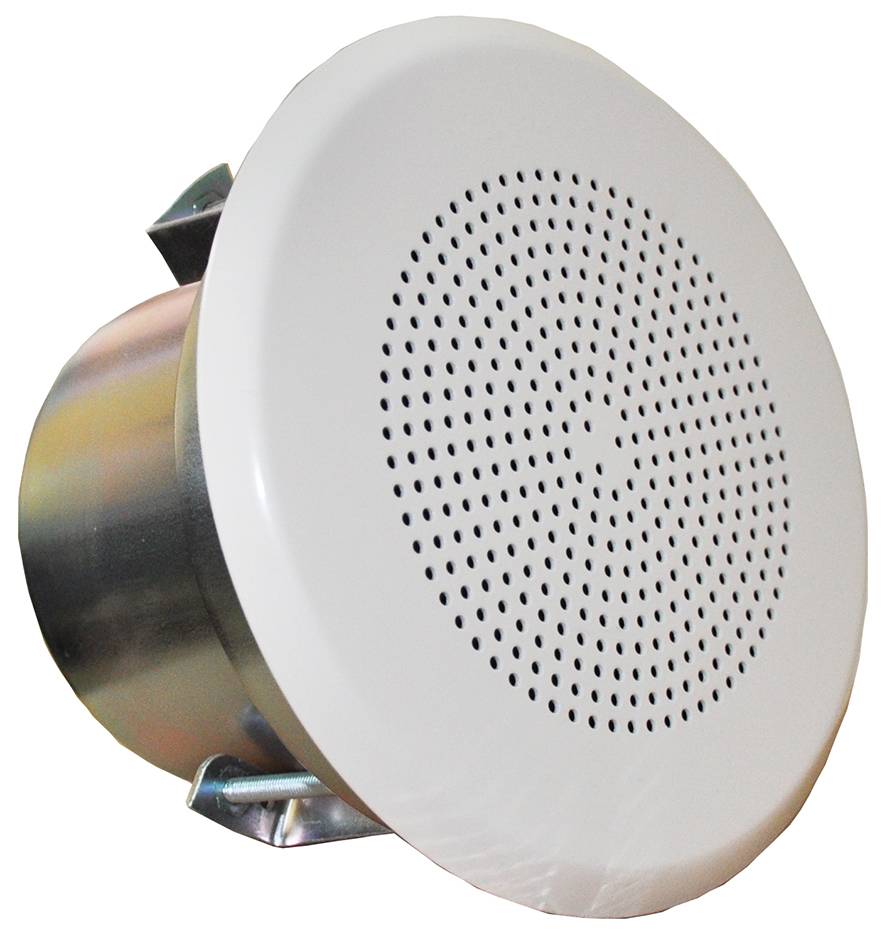

EN54-24 certified 6 Watt ceiling loudspeaker.
Suitable for ceiling mounting.
EN54-24 certified 6 Watt ceiling loudspeaker. The loudspeaker comes with a factory fitted capacitor and is therefore ready for DC line monitored systems.
Features and benefits:
Color | White Guidance for specification option: RAL 9010. |
Material | Steel Aluminium |
Shape | Circle |
Warranty description | Five year |
Uniclass | |
CAWS | W53/115 Emergency voice communication systems |
Standard | To BS 5839-8 and EN 54-24. |
Enclosure | |
Material | Steel.Aluminium. |
Colour | White, RAL 9010. |
Environmental requirements | 55°C to -10°C.Manufacturer guidanceAmbient temperature. |
Mounting method | Ceiling.Guidance for specification option: 3 screws. Wall.Guidance for specification option: 3 screws. |
Power | 6 W. Manufacturer guidanceMax power. |
Environmental | Standard baffle. Manufacturer guidanceMeasurement environment. |
Terminal | Ceramic terminal. |
Total weight | 1.1 kg. |
Fixing | Three screws. |
ExpectedLife | 15 year. |
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
