VIGIL3 Voice Alarm Exhaust Fan Module
Verified by manufacturer 4 months ago
Exhaust fan cooling unit for VIGIL3 voice alarm
Application
For use with VIGIL3 voice alarm.
Description

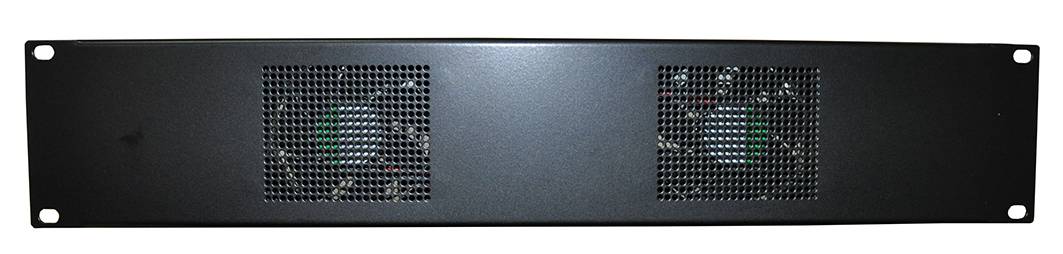

Air cooling unit for VIGIL3. Air is expelled through two front panel fans to ensure optimal working conditions.
Features and benefits:
- Temperature controlled fan speed.
- Fault monitoring.
- Controller operation.
- Temperature <10°C.
- Temperature >55°C.
- Temperature sensor open circuit/ short circuit.
- Open circuit to BV3MDPEFM (exhaust fans).
- Fan short circuit, when fans running.
- External temperature sensor (VIGIL2 routing).
- Internal amplifier temperature sensors (VIGIL3 routing).
General information
Color | Black |
Finish | Powder-coated |
Material | Steel |
Shape | Rectangle |
Width | 483 mm |
Height | 89 mm |
Warranty description | Seven year |
Uniclass | |
CAWS | W53/115 Emergency voice communication systems V90/590 Equipment |
Specification data - Voice alarm controllers
Standard | To BS EN 54. |
Emergency message generators | |
Number of pre-recorded messages | 254. |
Connection ports | |
Audio inputs | Up to 400 input. |
Audio outputs | Up to 800 output. |
Controls | |
Features | Touchscreen. |
Display type | On-screen display. |
Battery charger | |
Standard | To BS EN 54. |
Controls | |
Display type | On-screen display. |
Enclosure | |
Material | Steel. |
Colour | Black. |
Size: | 483 x 89 x 280 mm. Guidance for specification option: (w x h x d). |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
