VIGIL3 5 Way Mains Distribution

Name: VIGIL3 5 Way Mains Distribution
Brand: Baldwin Boxall Communications Ltd
SKU: tcpLUqGQyFAzThBYPohzET

Verified by manufacturer 4 months ago

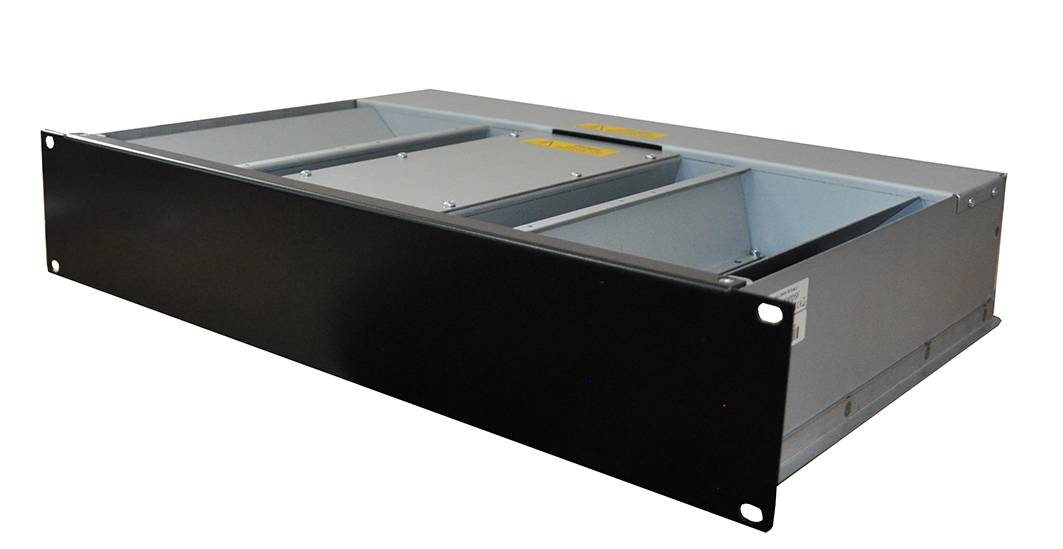

The BV3MDP05F mains distribution panel with exhaust fans and five individual 6 A fused amplifier IEC power outlet connections to power amplifier modules.

Jump to:

BOS

+44 (0)1892 664422 Website

Application

Suitable for voice alarm racks temperature control, working alongside the BV3MDPEFM.

Description

The BV3MDP05F mains distribution panel with exhaust fans ensure that voice alarm racks are kept at the optimum operating temperature at all times working alongside the BV3MDPEFM. Five individual 6 A fused amplifier IEC power outlet connections.

Features and benefits:

Temperature controlled fan speed.
Fault monitoring.
Controller operation.
Temperature <10°C.
Temperature >55°C.
Temperature sensor open circuit/ short circuit.
Open circuit to BV3MDPEFM (exhaust fans).
Fan short circuit, when fans running.
External temperature sensor (VIGIL2 routing).
Internal amplifier temperature sensors (VIGIL3 routing).

General information

Color	Black
Finish	Powder-coated
Material	Steel
Shape	Rectangle
Width	483 mm
Height	89 mm
Warranty description	Seven year

Uniclass	Pr_75_75_94_95 Voice alarm controllersPrimary
CAWS	W53/115 Emergency voice communication systems

Specification data - Voice alarm controllers

Standard	To BS EN 54.
Emergency message generators	-
Number of pre-recorded messages	254.
Connection ports	-
Audio inputs	Up to 400 input.
Audio outputs	Up to 800 output.
Control outputs	5.
Controls	-
Features	Touchscreen.
Display type	On-screen display.
Battery charger	-
Standard	To BS EN 54.
Controls	-
Display type	On-screen display.
Enclosure	-
Material	Steel.
Colour	Black.
