Soundblocker - Acoustic suspended ceiling insulation
Verified by manufacturer 23 days ago
Soundblocker office and classroom
Soundblocker office and classroom
Alcumus SafeContractor
Certificate type
Acoustic suspended ceiling insulation
Application
Suitable for all types of suspended ceilings.
Soundblocker Private office is ideal for any environment where noise transfer through suspended ceilings or over the top of partitions could compromise personal and sensitive information.
Soundblocker confidentiality is ideal for any environment where noise transfer through suspended ceilings or over the top of partitions could compromise very personal and
highly sensitive information.
Soundblocker entertainment range is ideal for any environment where extreme noise breakout through roofs or suspended ceilings creates a serious environmental problem. Nightclubs and cinemas must eliminate the breakout of sound through the structure, whilst in addition cinemas must also stop the ingress of sound.
Description
Acoustic insulation to help reduce the breakout of sound via suspended ceilings. Effective sound insulation is essential in commercial, educational and industrial environments for privacy, comfort, and health and safety.
Often in such environments, a suspended ceiling is installed to screen services above head height and provide acoustic absorption. Partitions are typically installed to the underside of the suspended ceiling, leaving a common void between adjacent rooms. although effective absorbers of sound, the lightweight nature of suspended ceiling tiles often leads to poor sound insulation and problems can occur due to 'crosstalk' between adjoining areas, as well as noise generated by services within the ceiling void.
Features and benefits:
- Reduces noise breakout through suspended ceilings in offices, classrooms, hospitals, cinemas and nightclubs.
- Reduces noise breakout from services within the suspended ceiling void.
- Easily installed with new or existing suspended ceilings.
- Easily removed for access.
- Allows complete flexibility with relocation of partitions, unlike vertical cavity barrier solutions.
- Great to work with and easily cut.
- Accessories for treating light fittings, air diffusers and gaps, are available.
- Available in four ranges available; office and classroom, private office, confidentiality and entertainment ranges.
General information
Color | Black |
Finish | Other |
Material | Foam |
Shape | Square Rectangle |
Length | 600 mm 1200 mm 500 mm 750 mm Bespoke |
Width | 600 mm 500 mm 750 mm Bespoke |
Height | 16 mm 19 mm 25 mm 75 mm |
Uniclass | |
CAWS | K40/55 Insulation K40/285 Insulation |
Specification data - Sound attenuator infill units
Form | Infill unit. |
Application | Ceiling mounting. |
Material | Foam. |
Fire performance | |
Fire resistance | To BS 476-6: Class 0. BS 476-7: Class 1. |
Dimensions | |
Size (length x width) | 600 x 600 mm.1200 x 600 mm. |
Thickness (overall) | 16 mm. |
Profile | Linear. |
Edges | Square. |
Surface pattern | Solid. |
Colour | Black. |
Accessories | Soundblocker perimeter strip.Guidance for specification option: Self adhesive Soundblocker Perimeter Strips are used at the perimeters or around columns etc. these are 15000 x 100 x 6 mm in size and are self adhesive. Self adhesive modular side strips.Guidance for specification option: Self adhesive modular Side Strips (1200 x 100 x 13 mm) are fixed around all sides of the fitting. they are positioned onto the side of the fitting and should return onto the back of the ceiling covering the tee and any gap between the fitting and the ceiling. Soundblockers can normally be placed on top of the fitting when low brightness or louvre type diffusers are used. air must be allowed to flow through the louvre, and circulate around the tubes and switch gear. Soundblocker tiles should not be placed on top of modular light fittings if a plastic lens type diffuser is used. Standard downlighter hood.Large downlighter hood.Air diffuser hoods. |
Acoustic performance | Rw 24 dB, Dnc,w 46 dB. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Foam |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer guidanceVaries depending on the type of Soundblocker specified: Soundblocker 16 (600x600mm) - 10% Soundblocker 19 - 10% Soundblocker 25 - 11% Soundblocker Plus - 19% |
Third party certifications
Alcumus SafeContractor
SafeContractor Certificate
Alcumus SafeContractor
SafeContractor PQQ Certificate
Literature

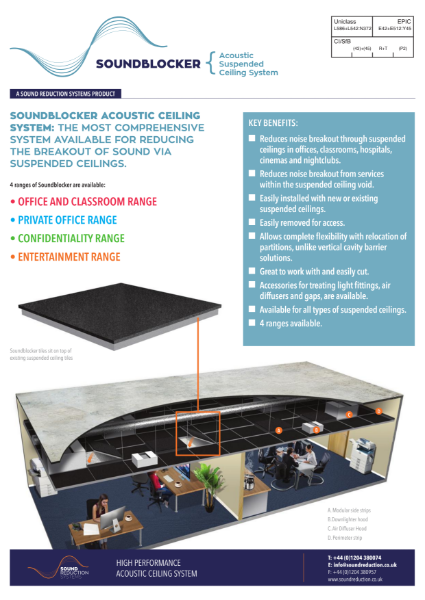

SRS Soundblocker Data Sheet

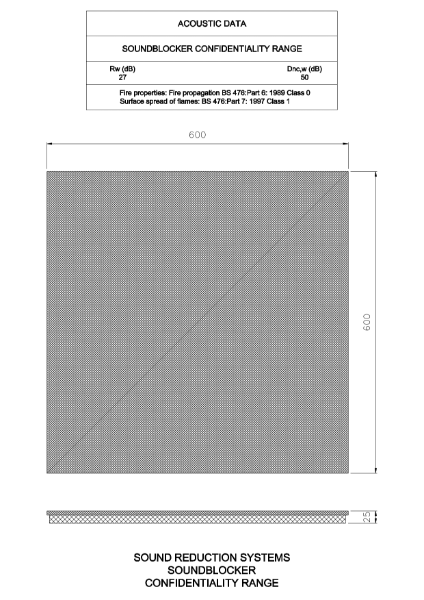

Soundblocker Confidentiality Range CAD Drawing

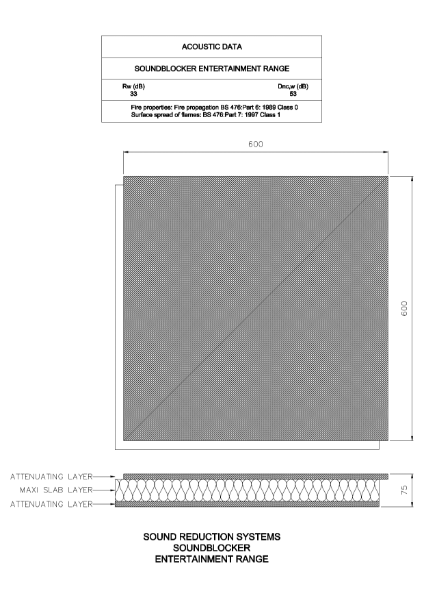

Soundblocker Entertainment Range CAD Drawing

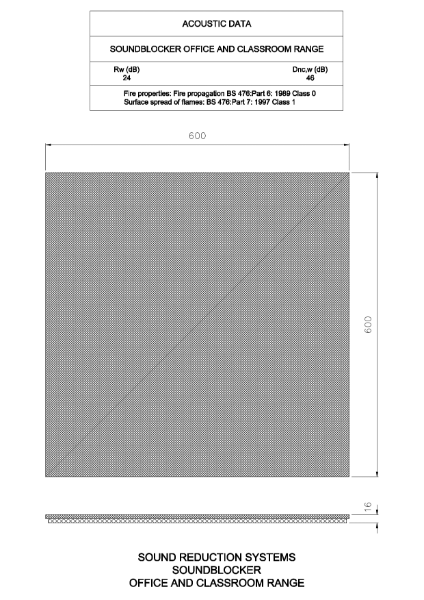

Soundblocker Office and Classroom Range CAD Drawing

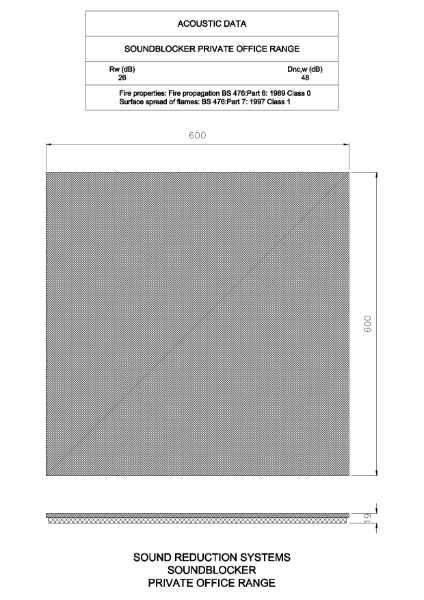

Soundblocker Private Office CAD Drawing
