Sonaslat - Acoustic Wall Lining
Verified by manufacturer 25 days ago
Alcumus SafeContractor
Certificate type
Timber acoustic wall lining.
Application
Can be used in homes and office environments.
Description
A high quality timber slatted acoustic absorption panel for use on walls and ceilings within buildings. Sonaslat can be used within homes and offices to keep reverberation in check whilst creating a stunning visual effect.
Sonaslat is manufactured in the UK from high quality, timber veneered, MDF slats, and a black, fire rated polyester felt backing.
Features and benefits:
- Up to Class A acoustic absorption performance.
- Available in a range of high-quality timber-veneered finishes.
- Fire rated to EN 13501-1.
- Easy to install with basic tools.
- Only 22 mm thick.
General information
Color | Brown |
Finish | Veneered |
Material | Medium density fibreboard (MDF) |
Shape | Rectangle |
Length | 2400 mm |
Width | 600 mm |
Height | 22 mm |
Uniclass | |
CAWS | K40/265 Infill units K40/115 Unit/ modular suspended ceiling system K13/170 Acoustic panel lining K13/170 Acoustic panel lining |
Specification data - Sound attenuator infill units
Standard | To BS EN ISO 354:2003. |
Form | Panel. |
Rigidity | Rigid. |
Application | Ceiling mounting.Wall mounting. |
Material | MDF slats with a black, fire rated polyester felt backing. |
Acoustic performance | |
Purpose | Absorber. |
Sound absorption | Class A. |
Fire performance | |
Fire resistance | To EN 13501-1. |
Reaction to fire | Felt backing, B-S1,d0. FR MDF Slats, B-s2-d0. |
Dimensions | |
Size (length x width) | 2400 x 600 mm. |
Thickness (overall) | 22 mm. |
Profile | Ribbed. |
Edges | Square. |
Surface pattern | Solid. |
Finish | Wood veneer. |
Accessories | Maxi Slab 50.Guidance for specification option: Class A acoustic absorption performance can be achieved by using Maxi Slab 50 mineral wool and timber battens behind Sonaslat panels. Sonatac Adhesive. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Medium density fibreboard (MDF) |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 41 % |
Third party certifications
Alcumus SafeContractor
SafeContractor Certificate
Alcumus SafeContractor
SafeContractor PQQ Certificate
Literature

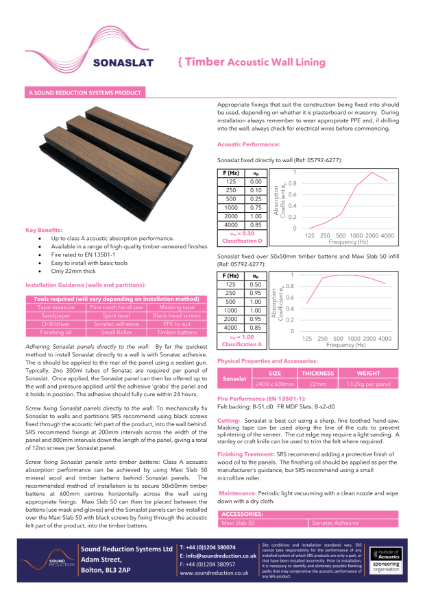

Sonaslat Data Sheet
Institute of Acoustic Sponsor Certificate
Richard Sherwood MIOA Certificate
